Mark-10 Series TT03C Cap Torque Gauge MTT03C-100

Mark-10 Series TT03C Cap Torque Gauge

Cap torque gauge, 100 lbFin / 1150 kgFmm / 1150 Ncm

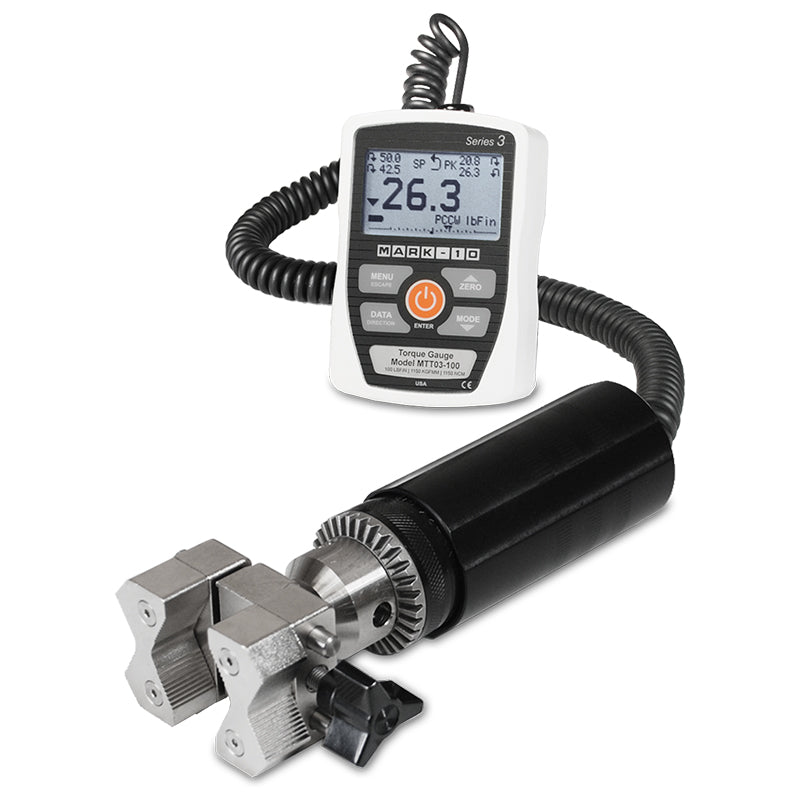

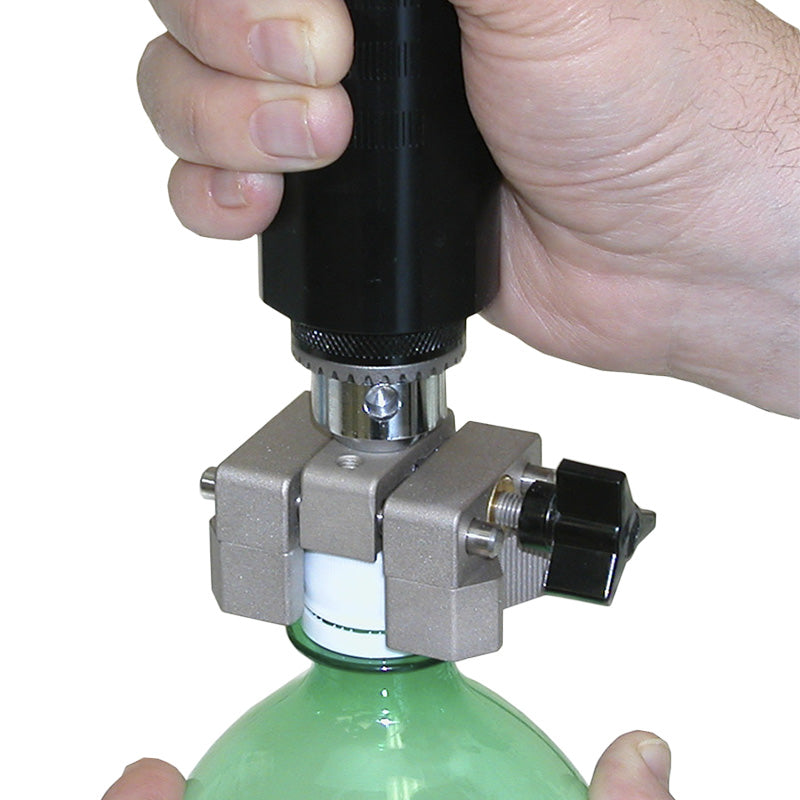

Series TT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a universal grip for caps from 0.65 - 1.55 in (16.5 - 39.4 mm) diameter.

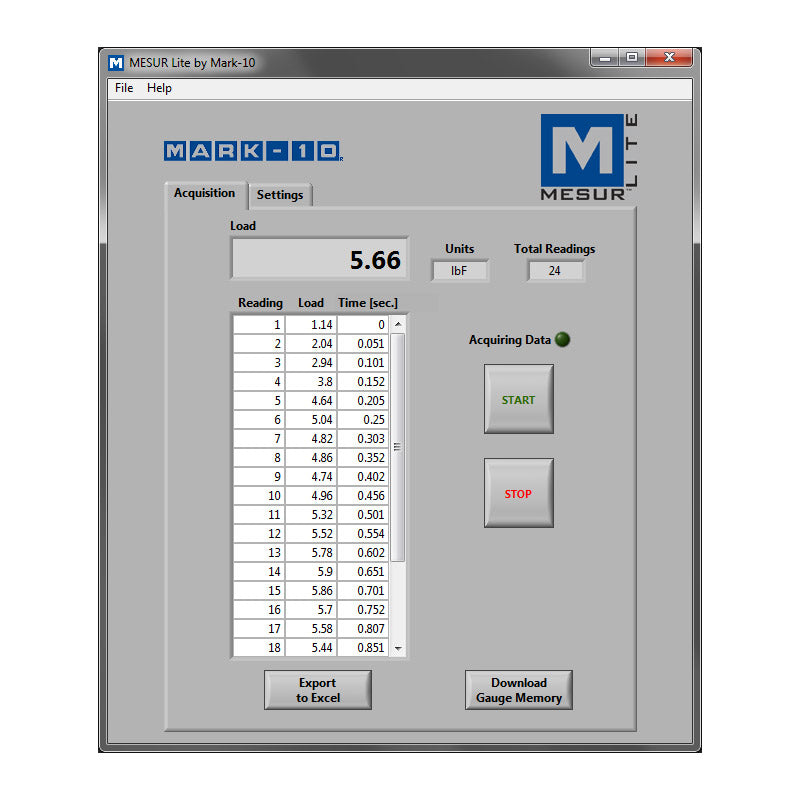

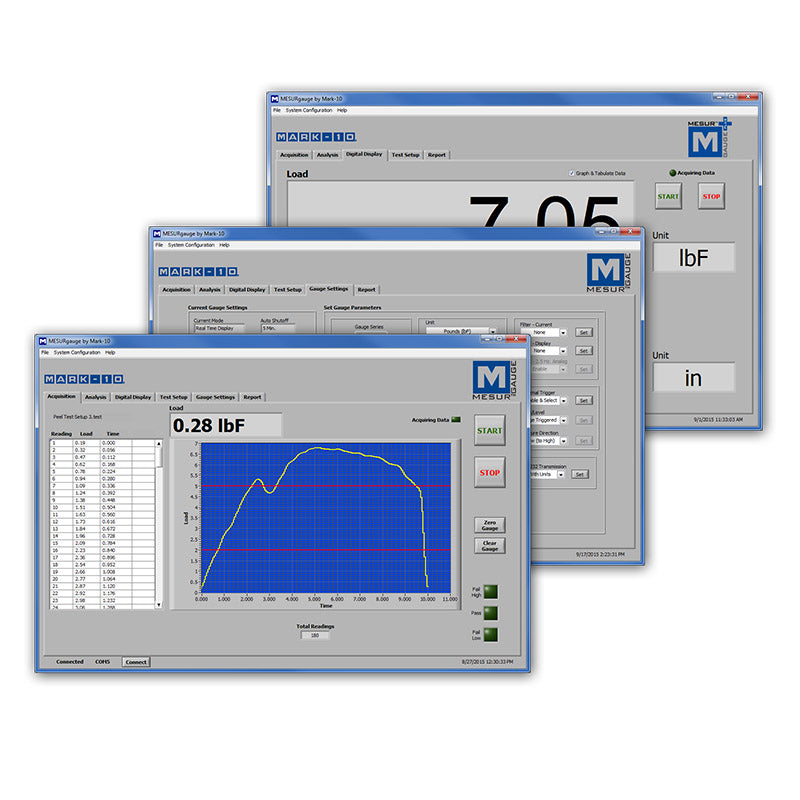

The gauges include MESUR^® Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.

• Ergonomic torque sensor with Jacobs chuck
• Peak torque values saved and displayed
• High-speed 2,000 Hz sampling rate

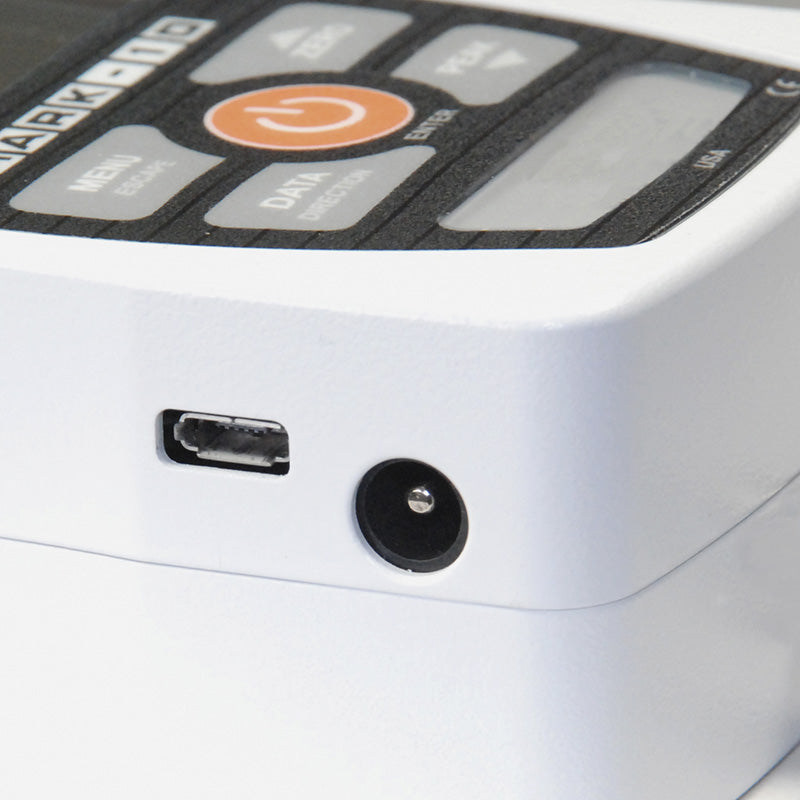

• USB data output of continuous or individual data points
• Programmable set points with pass/fail indicators

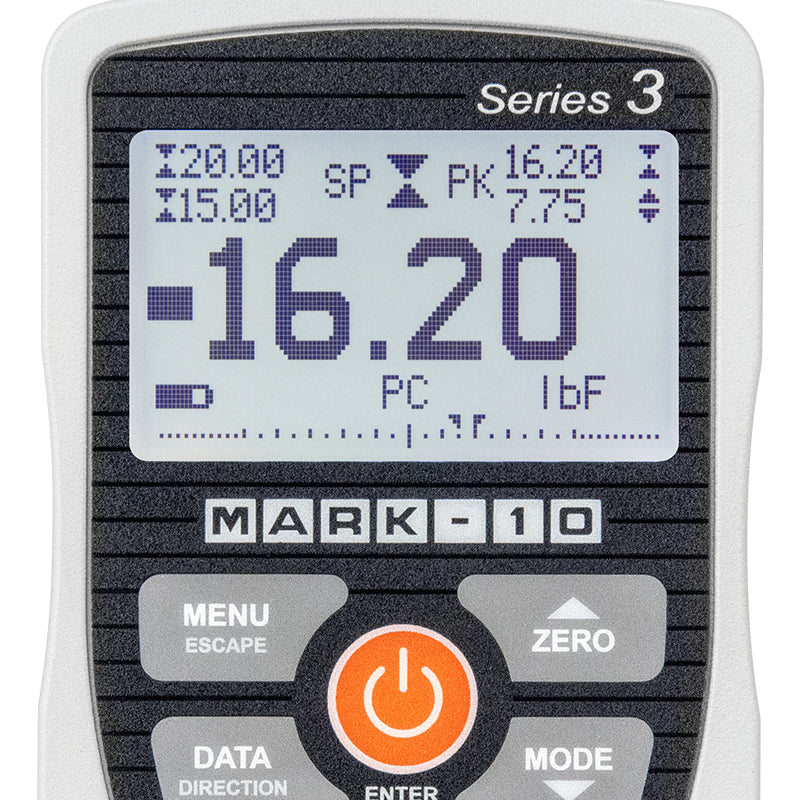

• Live load bar graphs with set point markers
• Peak memory for clockwise and counter clockwise readings
• Set points always displayed
• Configurable audio alarms and key tones
• MESUR^® Lite data collection software included
• Battery or AC operation
• Safe overload: 150% of capacity

All images are for representation only.
