Mark-10 Tension and Compression Force Sensors Series R01 1500 lbF / 24000 ozF / 750 kgF / 7500 N / 7.5 kN

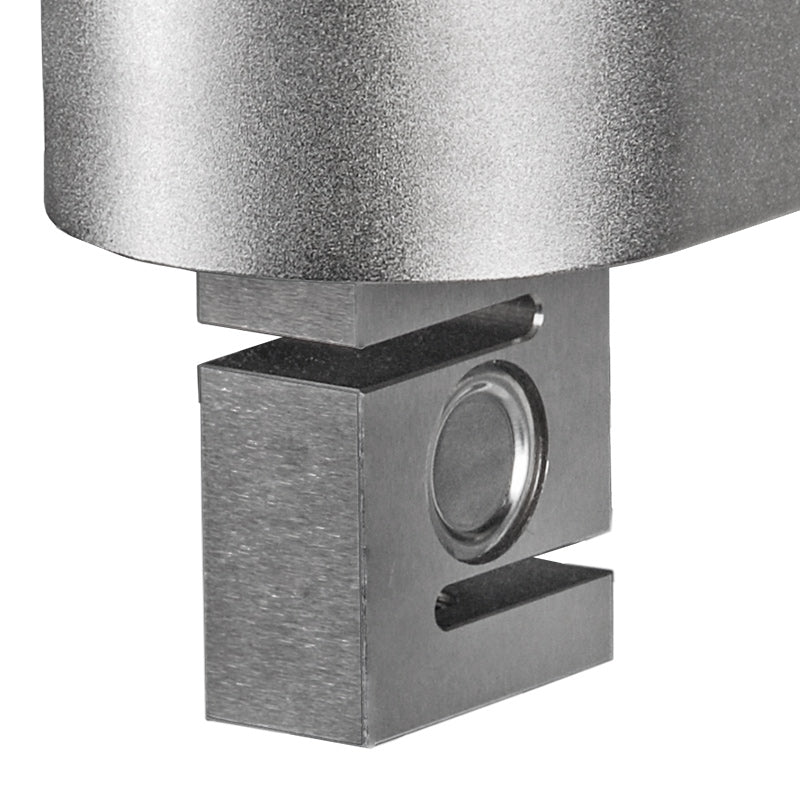

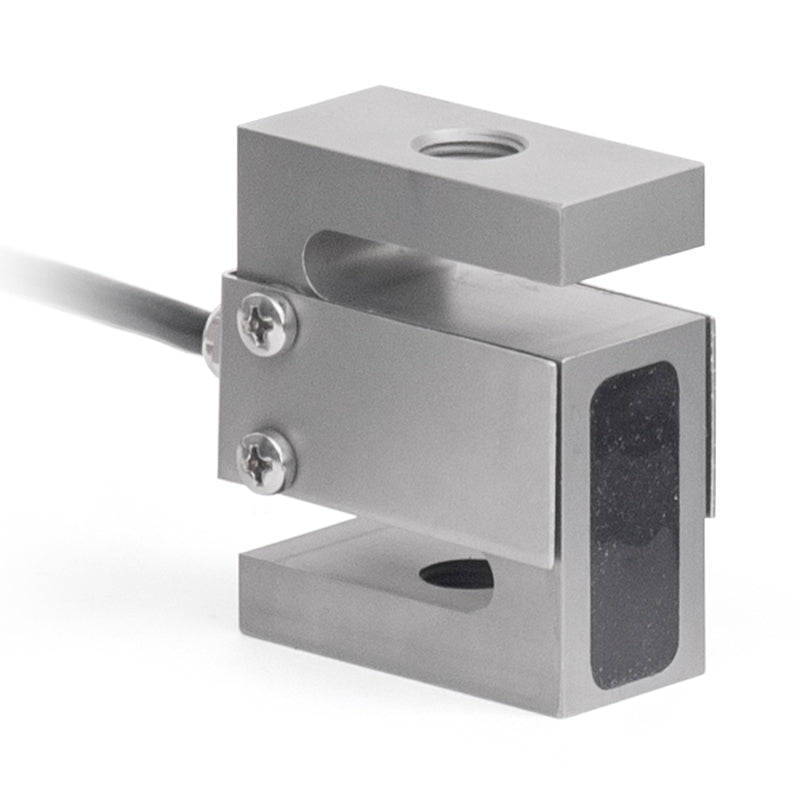

Series R01 rugged smart sensors are designed for measuring tension and compression force, with applications in virtually every industry. Durable S-Beam design with threaded holes on two sides allows for many configurations.

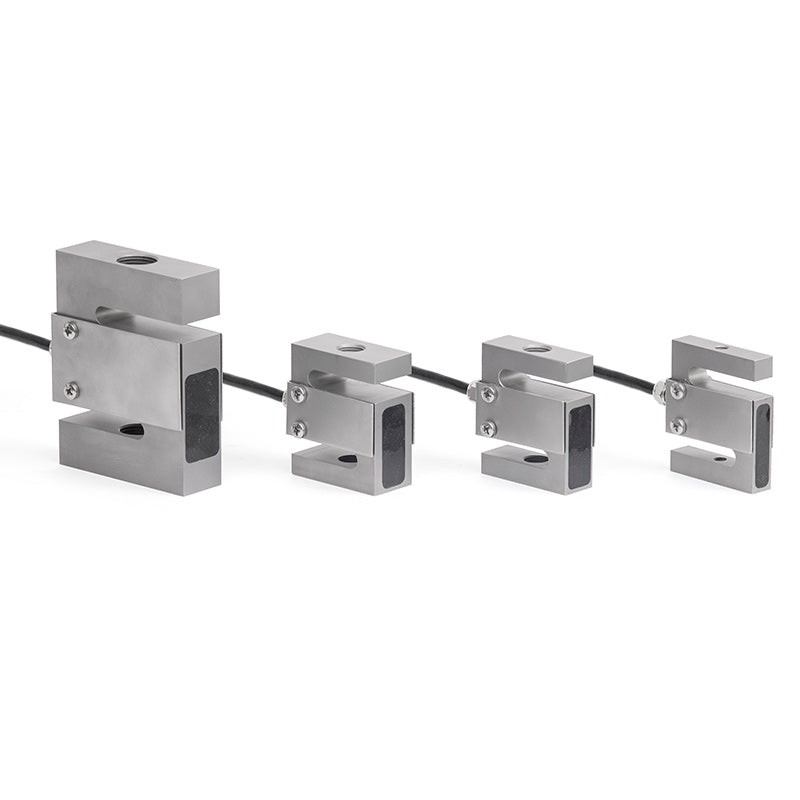

Capacities available from 50 to 10,000 lbF [250 N to 50 kN]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test® technology.

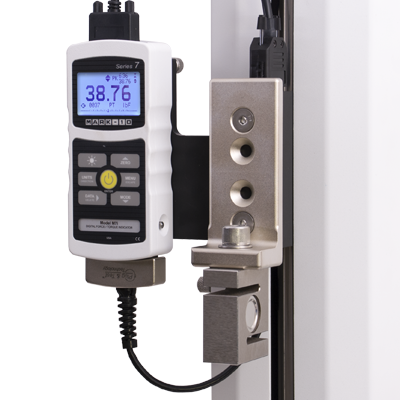

The sensors can be integrated into an existing system or mounted to a Mark-10 test stand.
Add suffix -1 to the model number when using an R01 sensor with any of the following test stands (ex: MR01-1000-1):
ESM1500
ESM750
ESM303
ESM303H
Requires a Mark-10 indicator, available separately.

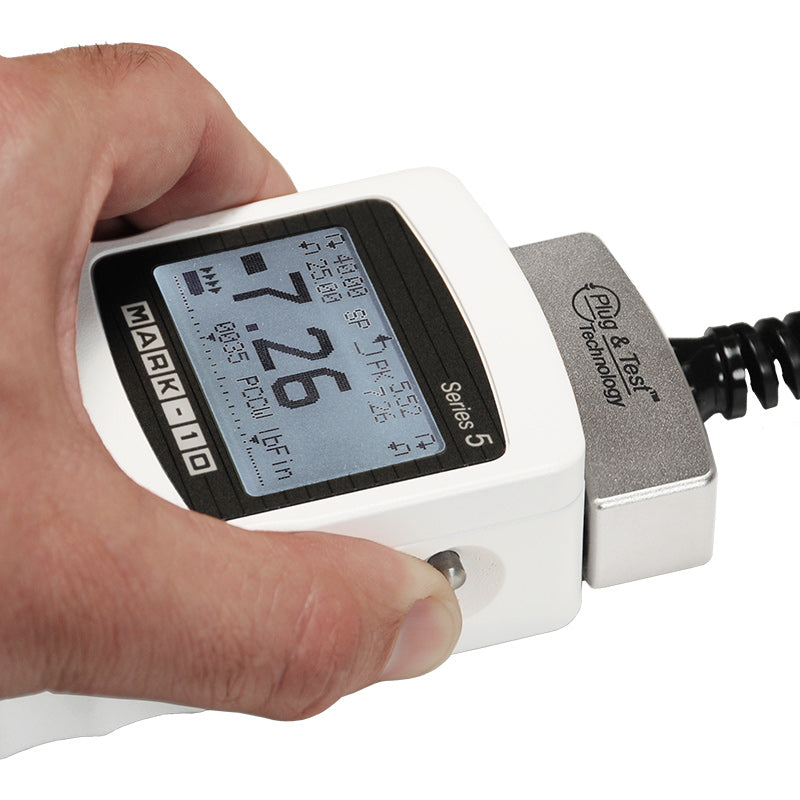

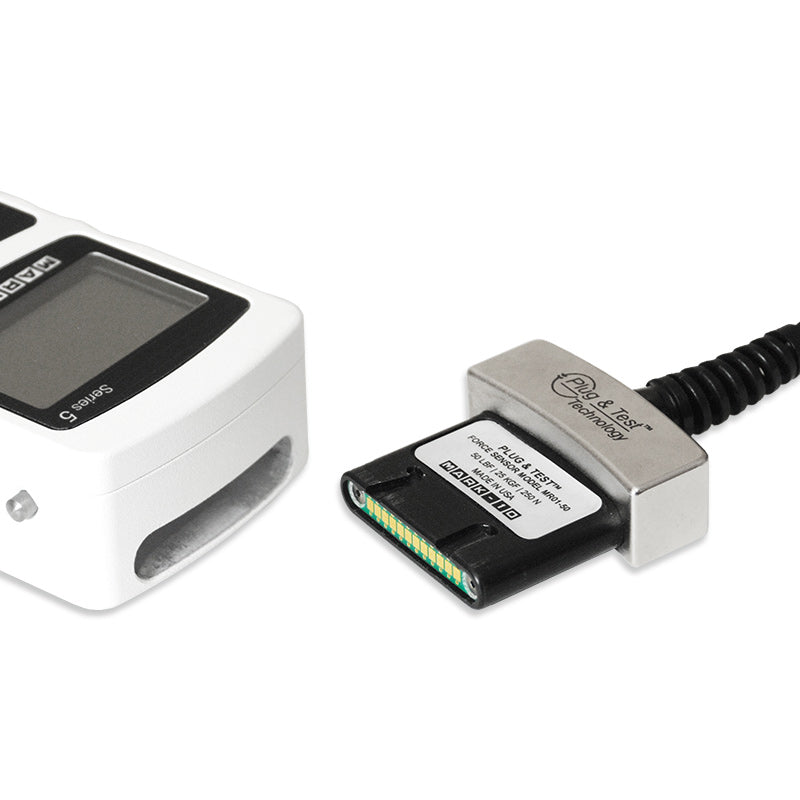

- Member of the Plug & Test® family of interchangeable sensors and indicators
- Measures tensile and compressive forces
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
- Warranty: 3 years
All images are for representation only.
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
