Mark-10 Tension and Compression Force Sensors Series R03 MR03-025

Mark-10 Tension and Compression Force Sensors Series R03 0.25 lbF / 4 ozF / 100 gF / 1 N / 1000 mN

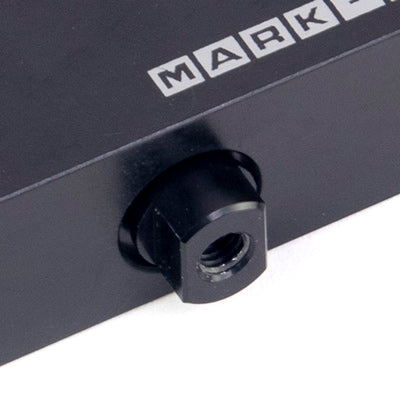

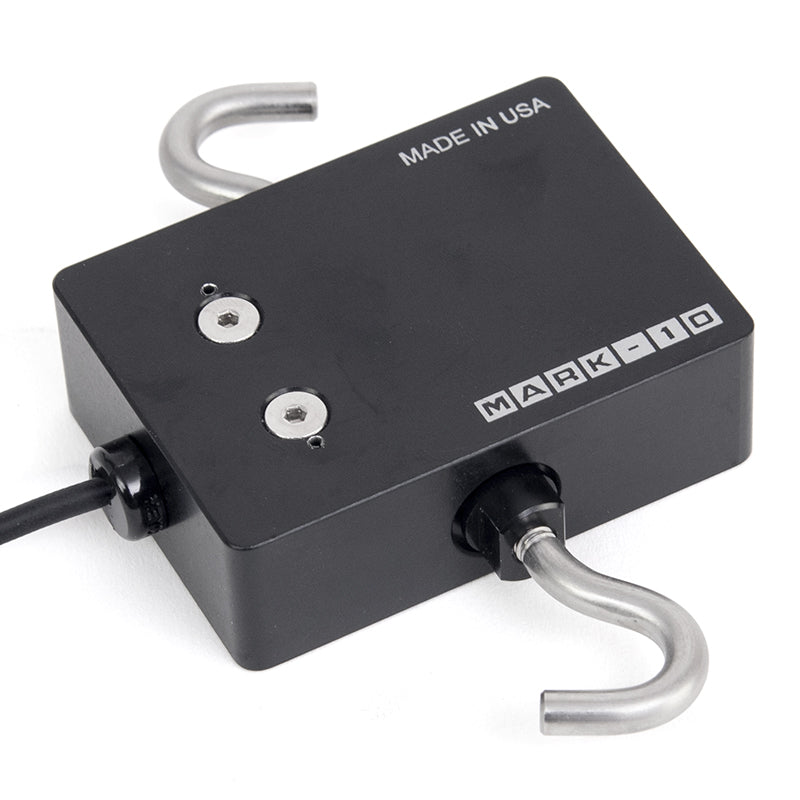

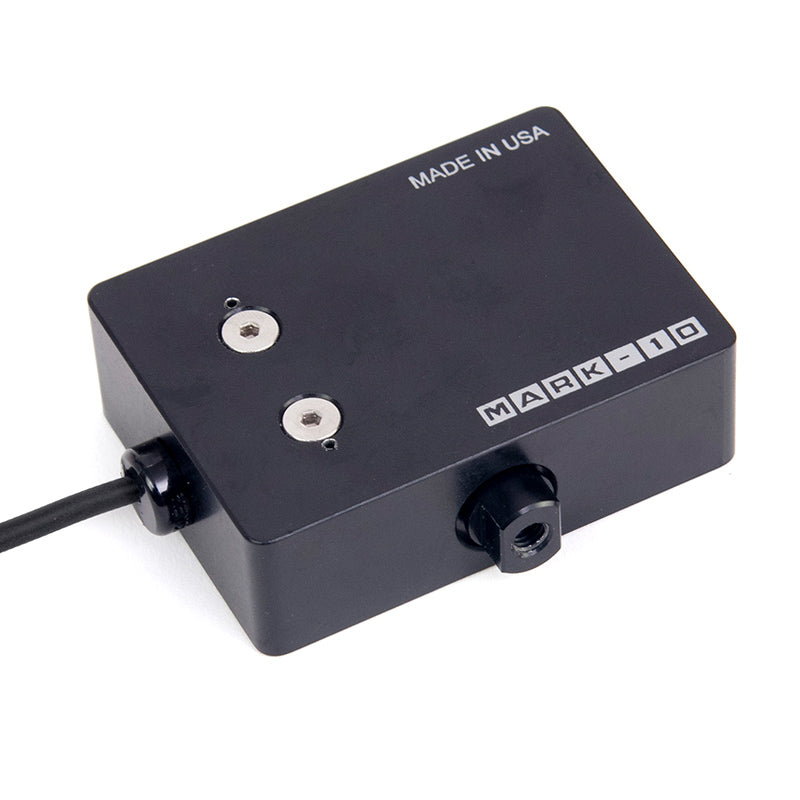

Series R03 smart sensors are designed for tension and compression measurement applications in virtually every industry. Threaded holes on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.

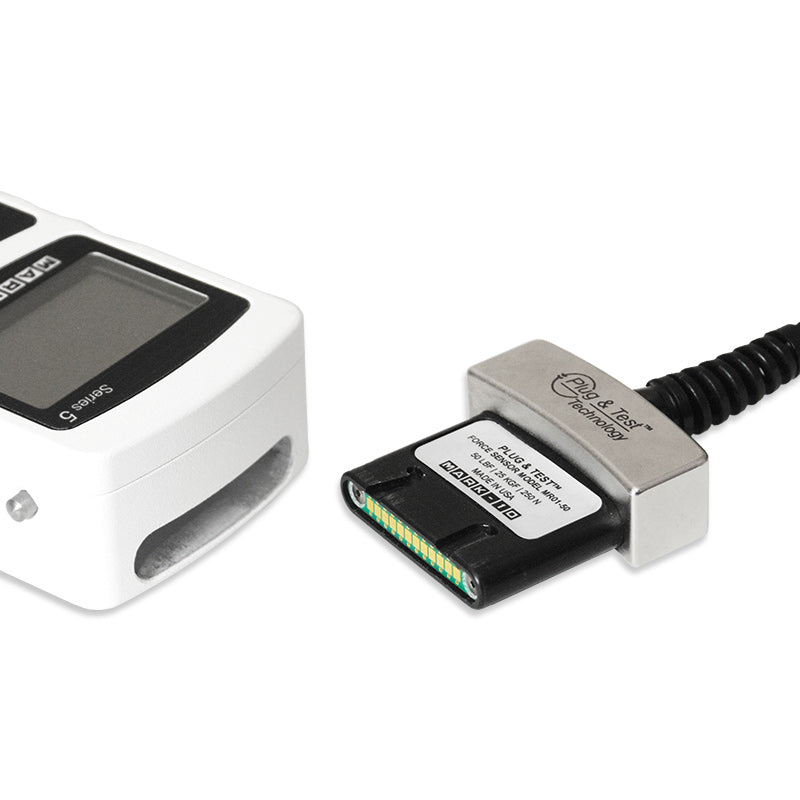

Capacities available from 0.25 to 100 lbF [1 to 500 N]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test®

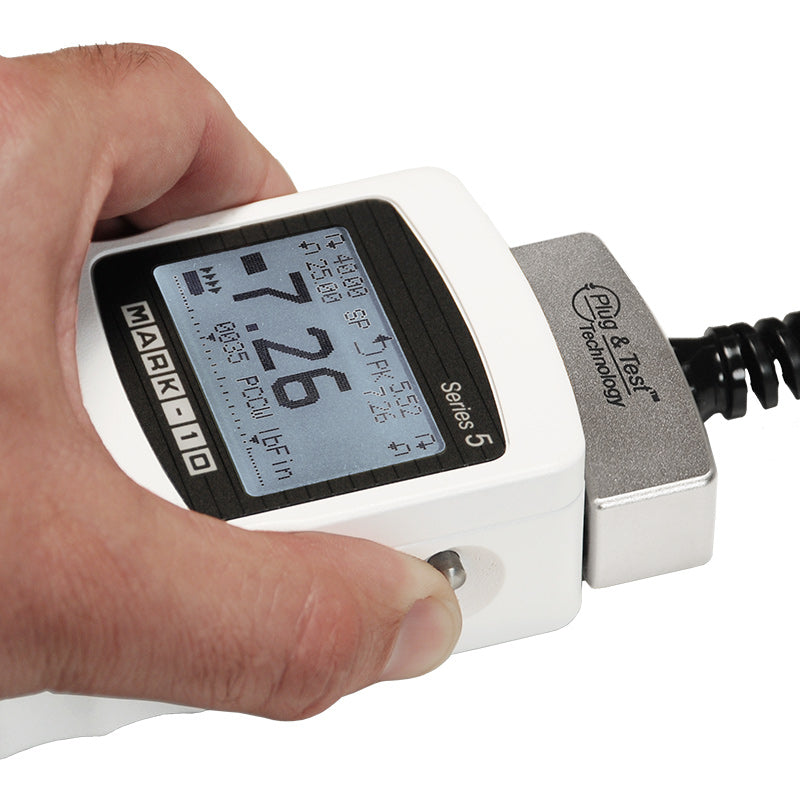

Requires a Mark-10 indicator, available separately.

• Member of the Plug & Test^® family of interchangeable sensors and indicators
• Rugged aluminum housing
• Measures tensile and compressive forces
• NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
• Warranty: 3 years

All images are for representation only.
