Mark-10 Wire Crimp Pull Tester WT-205

Wire Crimp Pull Tester

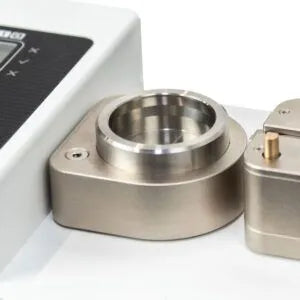

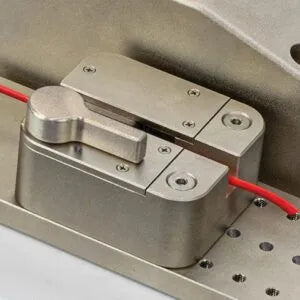

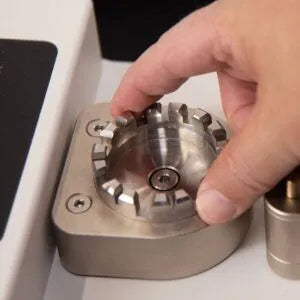

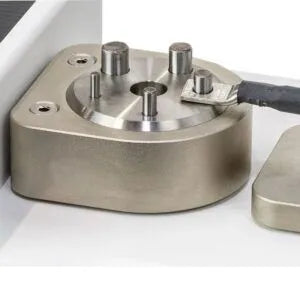

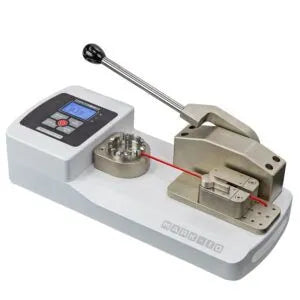

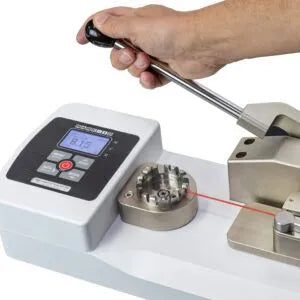

Measure wire crimp pull forces accurately and efficiently with the portable and customizable WT-205 tester. Easily apply up to 200 lbF (1,000 N) of force via an ergonomic lever. The tester's standard adjustable terminal fixture contains multiple slots for diameters up to AWG 3 (0.25 in [6.3 mm]), while the self-tightening wedge grip securely clamps the free end of the cable.

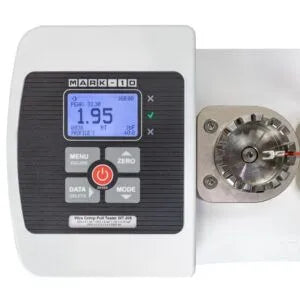

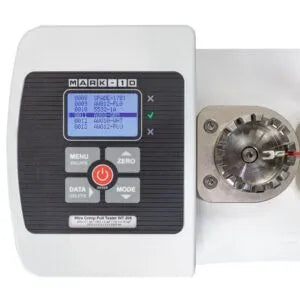

A backlit graphic LCD displays real-time force, peak force, unit of measurement, and pass/fail indicators. Green and red pass/fail indicators may also be used. A load bar on the display shows when an overload is approaching.

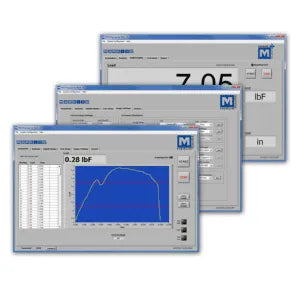

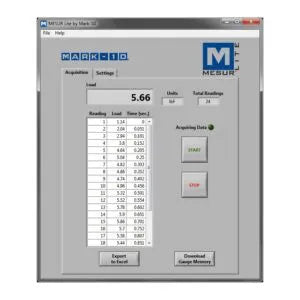

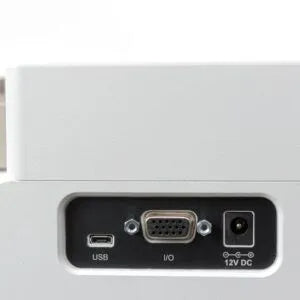

Transfer data to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. The WT-205 stores up to 1,000 readings and calculates statistics. Upon sample break, the tester can automatically save and output the peak force and auto-zero in preparation for the next test, increasing testing efficiency.

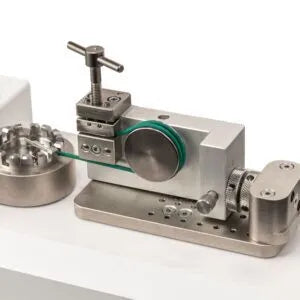

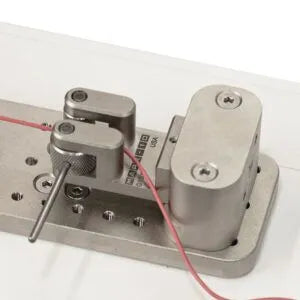

The WT-205 accommodates virtually any wire insulation type via standard and optional grips. We recommend sending wire samples to us for evaluation before purchase to determine if the standard grips are appropriate or if any optional ones are needed.

Features

• Measures real-time and peak force values
• Ergonomic lever operation produces 200 lbF [1,000 N]
• USB, RS-232, Mitutoyo (Digimatic), and analog outputs
• Automatic output / data storage / zeroing upon sample break helps automate testing processes
• 1,000-point data memory with statistics and outputs
• Password protection prevents unauthorized changes
• Programmable set point indicators and outputs for pass/ fail determination
• High-speed 7,000 Hz sampling rate accurately captures peak force values
• Configurable audio alarms and key tones
• Mounting holes for bench mounting


All images are for representation only.

This item needs an power adaptor for mains supply, order AC1121
