Metric Analogue Outside Micrometer Set 150-300mm 103-915-10
Metric Analogue Outside Micrometer Set 150-300mm 103-915-10
Roll over image to zoom in Click on image to zoom
Metric Analogue Outside Micrometer Set 150-300mm 103-915-10Metric Analogue Outside Micrometer Set 150-300mm 103-915-10

Metric Analogue Outside Micrometer Set 150-300mm 103-915-10

MitutoyoSKU: 103-915-10
List price: £1,460.00 Offer price: £1,066.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

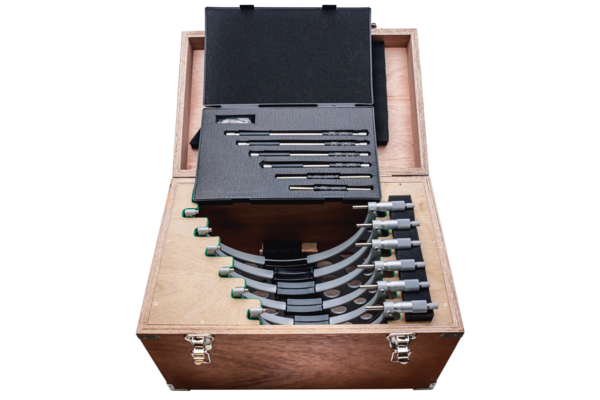

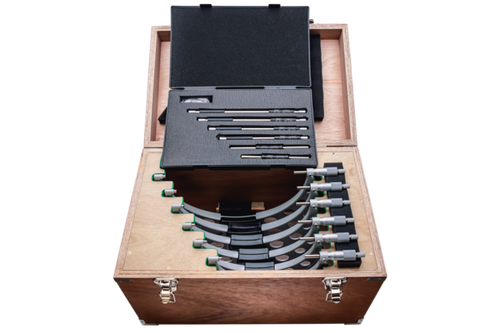

Mitutoyo; Metric Analogue Outside Micrometer Set

Lightweight workshop design with baked-enamel-finished frame.

  • Equipped with Ratchet Stop for constant measuring force.
  • 6 micrometers
    • 150-175mm
    • 175-200mm
    • 200-225mm
    • 225-250mm
    • 250-275mm
    • 275-300mm
  • Graduation : 0.01mm
  • Accuracy: ± 0.004mm/±0 0.005
  • Flatness: 0.0006mm
  • Measuring Force: 5-10N
  • Measuring face: Carbide-tipped
  • Measuring Spindle: With spindle lock, 6.35mm diameter
  • Spindle pitch: 0.5mm
  • Scale: Thimble and sleeve satin chrome finish, ø18mm
  • Ratchet stop
  • Analogue
  • Metric
  • Code Number 103-915-10

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Metric Analogue Outside Micrometer Set 150-300mm 103-915-10 Click to open the PDF document
