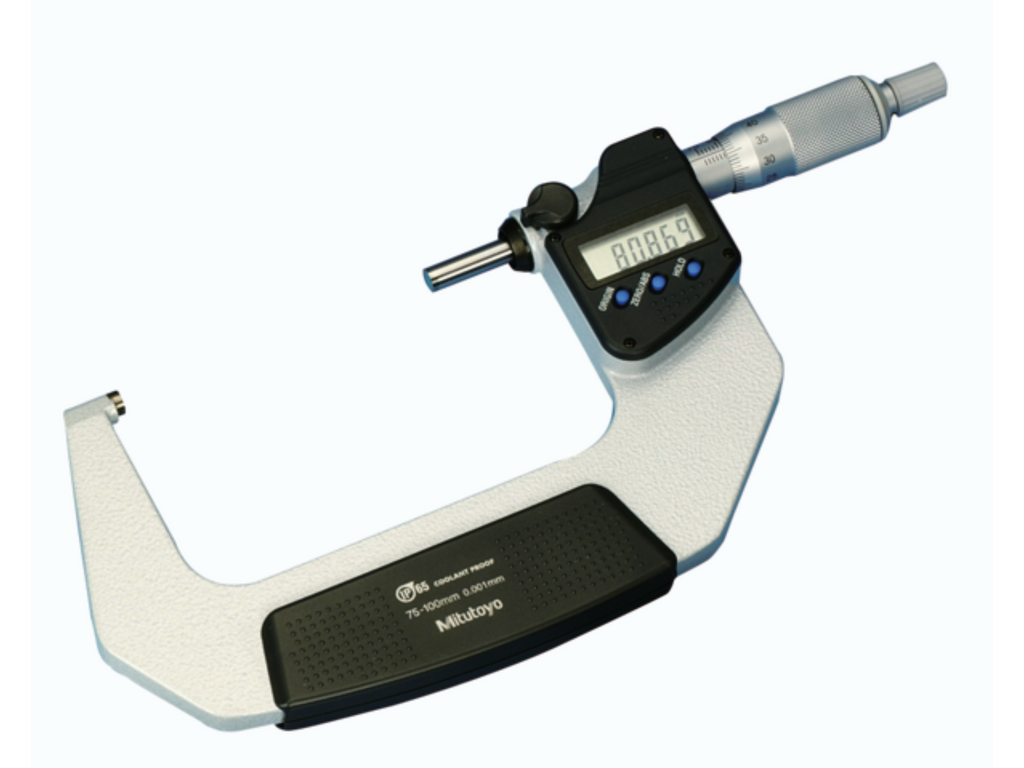

Metric Digimatic Micrometer IP65 75-100mm Ratchet Thimble W/O Output 293-247-30
Series 293
This IP65 micrometer offers outstanding accuracy, without data output, is highly robust, and offers the following benefits:
- Oil-resistant material used for all plastic parts
- Extraordinary battery life of 2,4 years
- Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.
Specifications
- Digital/Analog: Digital
- Inch-Metric: Metric
- Range: 75 - 100 mm
- Digital step: 0.001 mm
- Maximum Permissible Error J MPE: ±1 µm
- Accuracy: ±1 µm
- Flatness: 0.3 µm
- Parallelism: 1 µm
- Display: LCD, character height 7.5 mm
- Measuring spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Power supply: 1 battery SR-44
- Battery life: Approx. 2.4 years
- Delivered: including the box, key, 1 battery, gauge block (from 25 mm upward), up to 50 mm measuring range with factory certificate
- ABS / INC (INC ZERO): Yes
- Auto Power OFF after 20 min. nonuse: Yes
- Function lock: Yes
- HOLD: Yes
- Mass: 270 g
