Metric Internal Caliper Gauge 10-30mm, 0.01mm, H210

Roll over image to zoom in Click on image to zoom

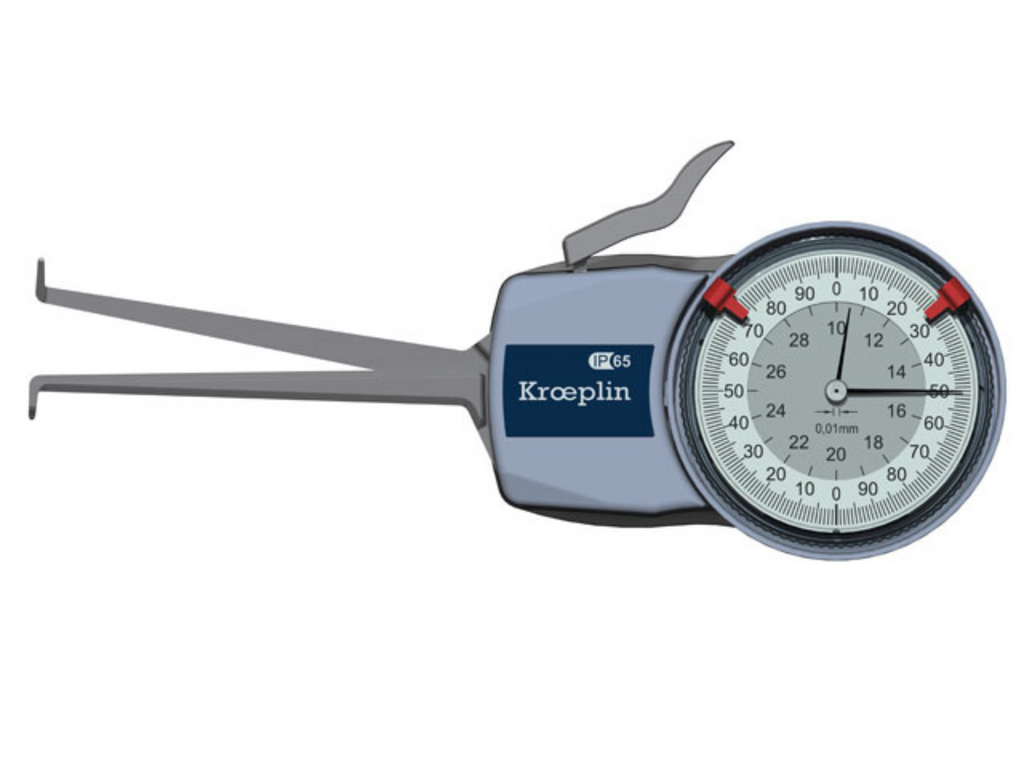

Kroeplin Metric Internal Caliper Gauge 10-30mm, 0.01mm H210 ( Mitutoyo Equivalent 209-302)

Name: Kroeplin Metric Internal Caliper Gauge 10-30mm, 0.01mm H210 ( Mitutoyo Equivalent 209-302)
Brand: Kroeplin
SKU: H210
Price: 419.03 GBP
Availability: InStock

KroeplinSKU: H210

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£419.03

Quantity:

All prices exclude VAT, which will be added at checkout.

H210

mechanical internal measuring gauge

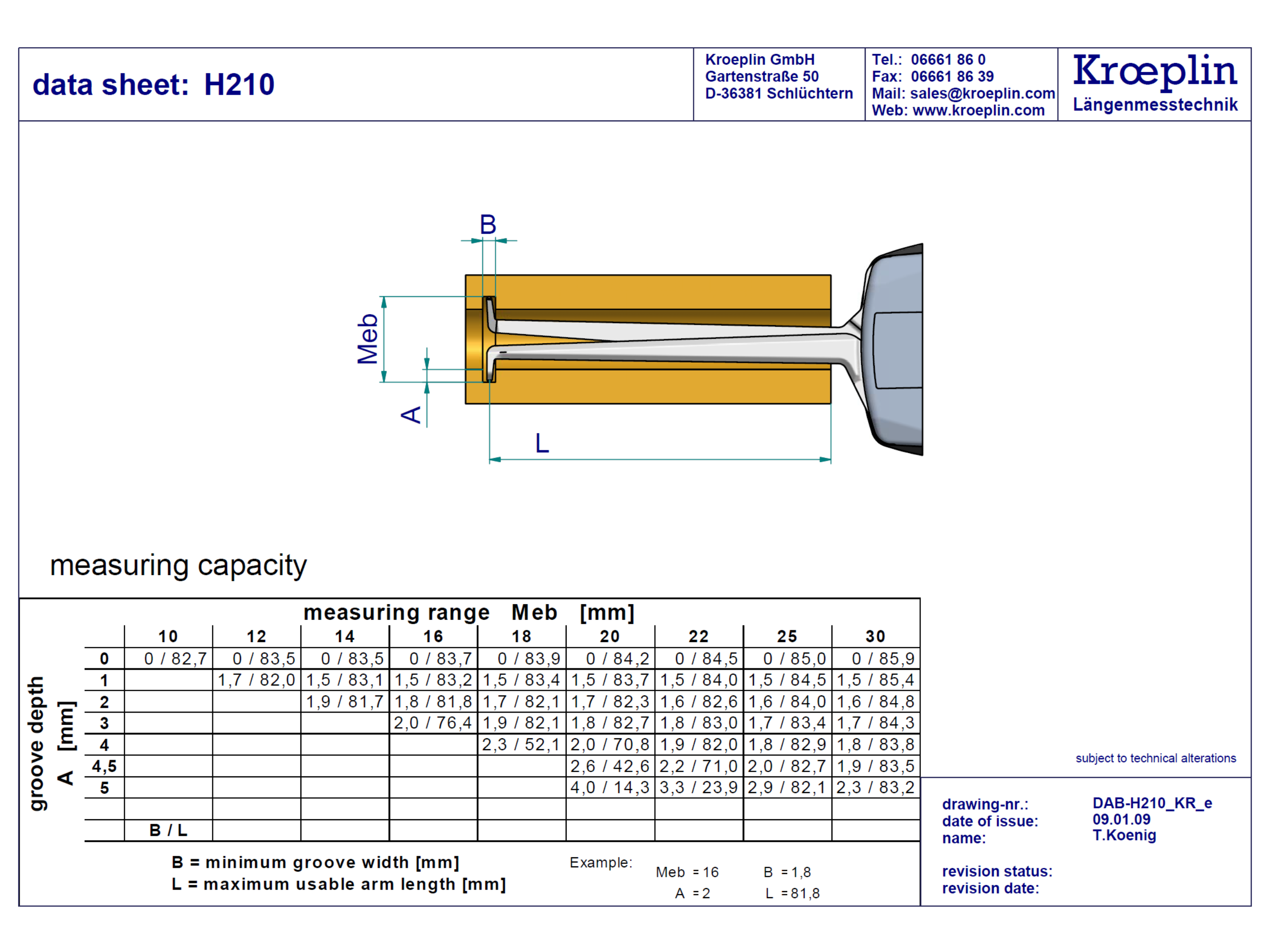

Measuring range Meb: 10 – 30 mm
Scale interval Skw: 0,01 mm
Measuring depth L max.: 85 mm

Customer Support

Contact our customer support team via email or call our hotline number

Phone - 02476 644661

Secure payments

We offer multiple secure payment options

Product Information

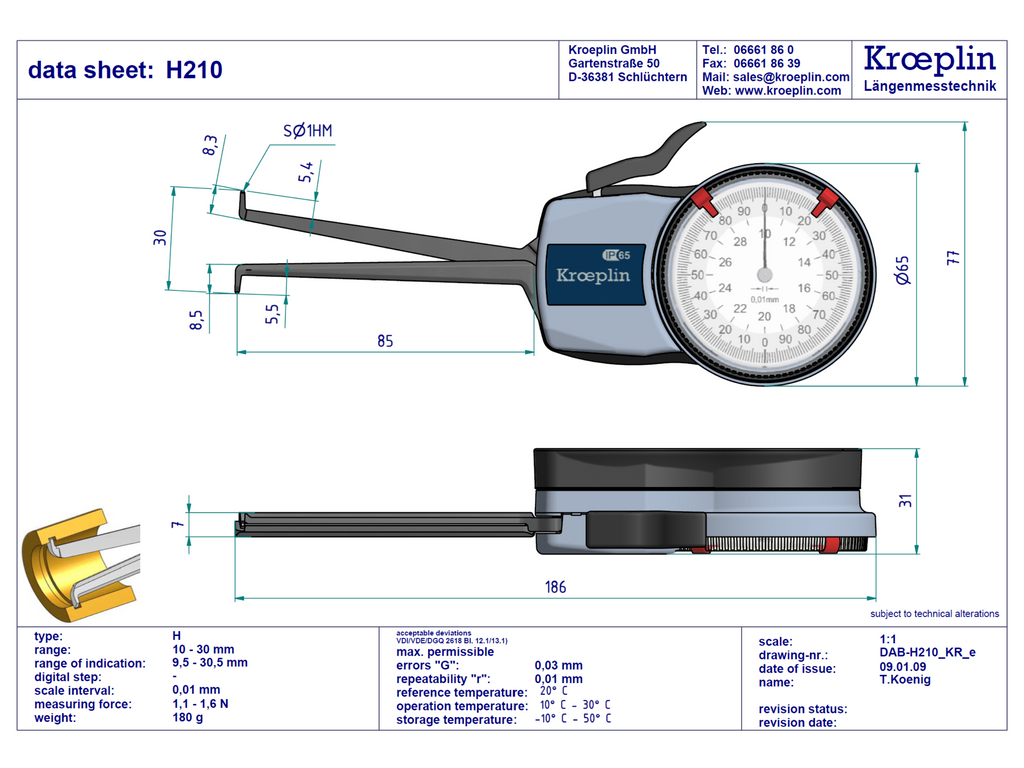

Part Number	H210
Measuring Ranges	10-30mm
Accuracy	.03mm
Unit of Measurement	Metric Inch
Display Type	Analogue
IP Rating	IP65
Measuring Force	1.1-1.6N
Type	Internal Groove Gauge
Repeatability	.01mm
Measuring Contacts	Carbide Ball 1.0mm diameter
Measurement L	85mm
Measurement B	5.3mm
Measurement A	5.3mm
Manufacturer	Kroeplin
