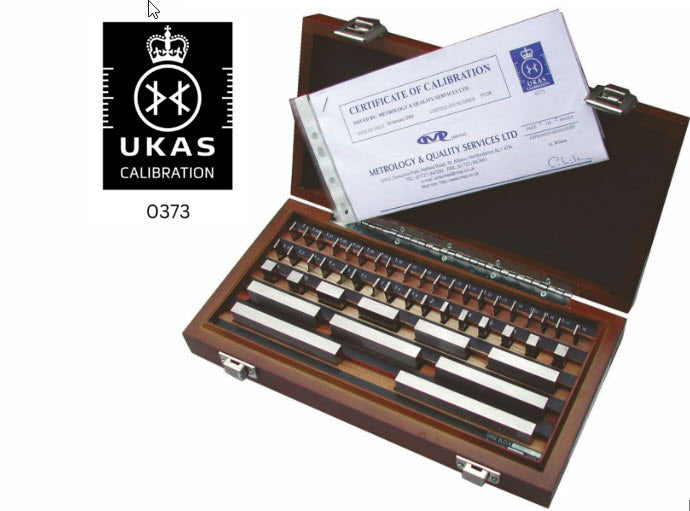

These gauge blocks are manufactured from heat treated high chrome steel, giving resistance to corrosion and superior resistance to wear. All sets are supplied with a certificate of inspection.

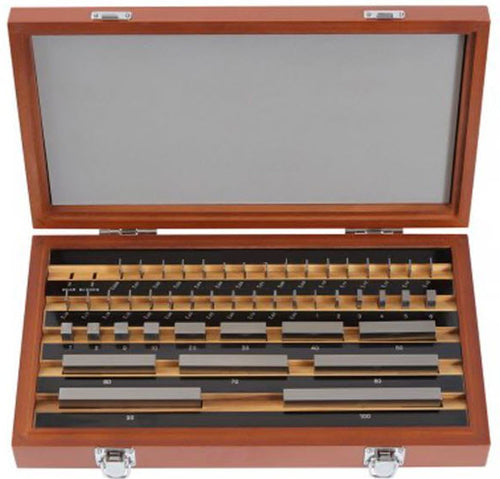

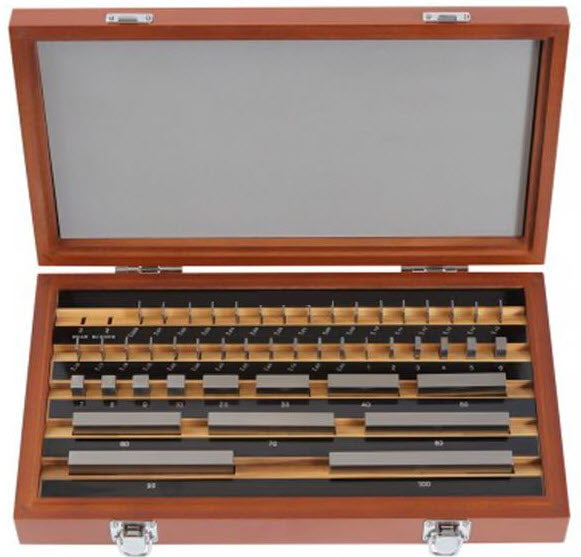

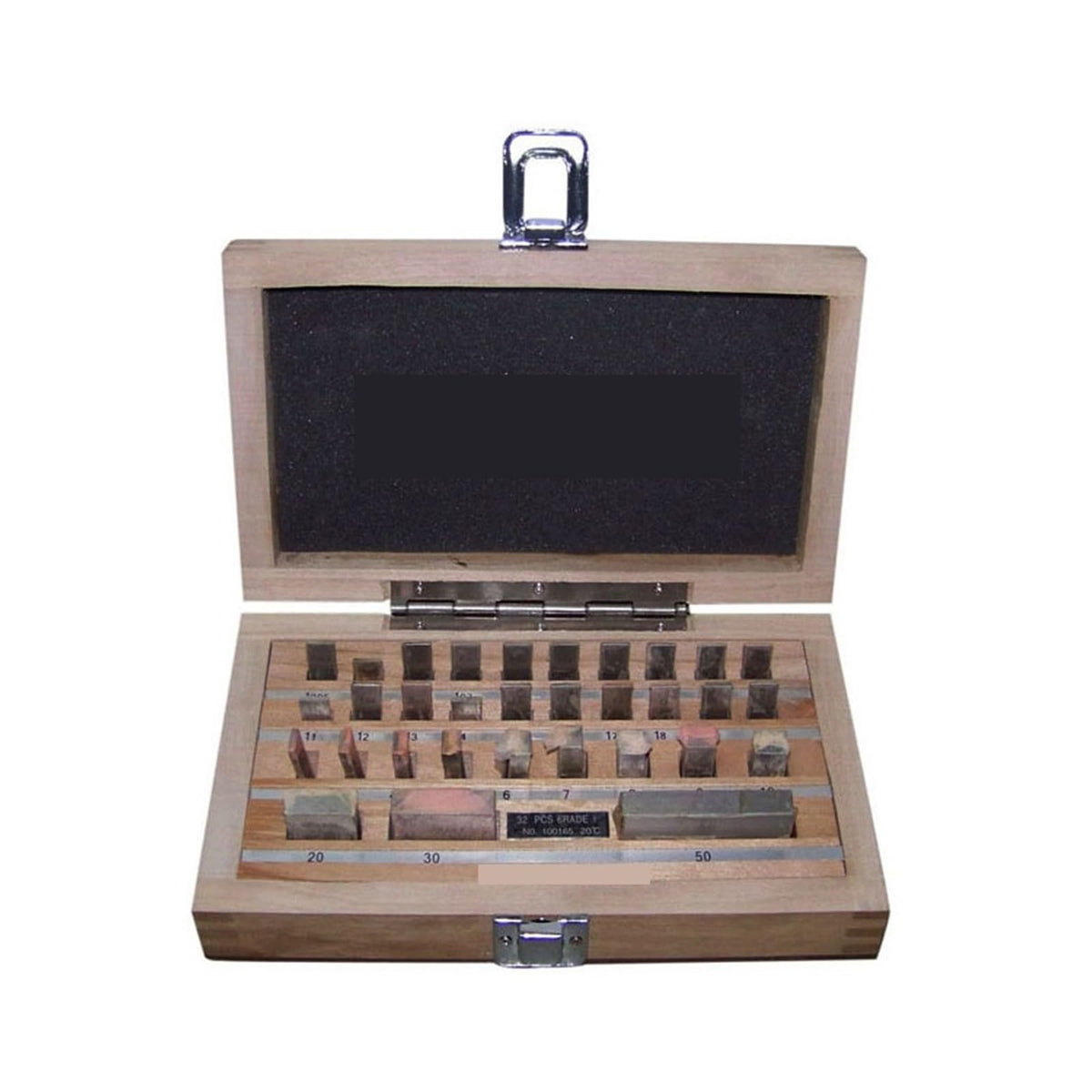

gauge block set with all blocks made of special tool steel, heat treated and aged to give good wear resistance and small secular change. Excellent inter-set wringing properties and will wring to optical flats or gauge blocks made of any other material.
Features:
- Made of high-quality alloy steel, carefully heat treated and stress relieved for high stability and precision lapped for good wringing properties, slightly rounded edges
- Each gauge block is marked with an identification number
- Gauge block hardness is 800 HV (64 HRC) for high wear resistance
- Gauge block sets are placed in their wooden storage box immediately after calibration
- Tolerance grade 0 - For calibrating and setting test gauges, reference gauges, and for adjusting length measuring instruments as well as for accurate testing in quality control
Specifications:
- Grade: 0
- Material Type: Steel
- Number of Blocks in Set: 32
- Base Size: 1 mm
