MHC 420-5481 Toolmakers Vee Block and clamp set Description : Ozar Vee Block Length x Width x Height : 3-1/2" x 1-7/8" x 1-7/8"/89 x 48 x 48mm Holding Capacity : 1-5/16"/33mm
Roll over image to zoom in Click on image to zoom
MHC 420-5481 Toolmakers Vee Block and clamp set Description : Ozar Vee Block Length x Width x Height : 3-1/2" x 1-7/8" x 1-7/8"/89 x 48 x 48mm Holding Capacity : 1-5/16"/33mm

MHC 420-5481 Toolmakers Vee Block and clamp set Description : Ozar Vee Block Length x Width x Height : 3-1/2" x 1-7/8" x 1-7/8"/89 x 48 x 48mm Holding Capacity : 1-5/16"/33mm

MHCSKU: 420-5481
Price:
£85.00

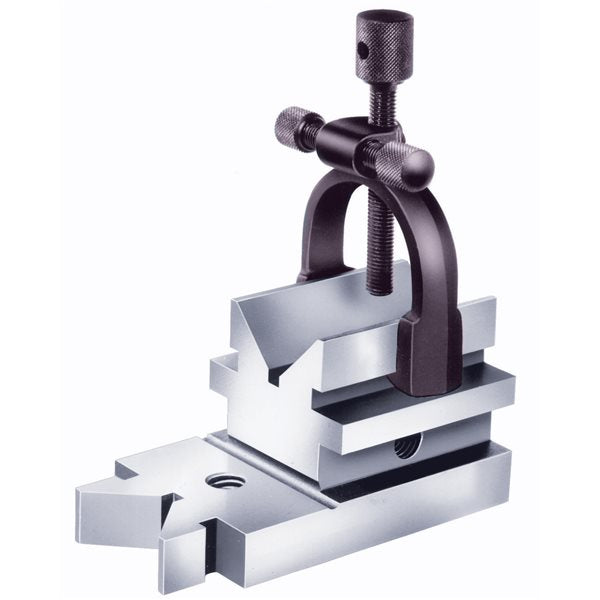

Toolmakers’ V-Block & Clamp

Case hardened and ground. Two Vees, four tapped holes 3/8-16 UNC. Central hole in V for removing pins or drilling. Forged clamp has adjustable side screw to support the block and prevent tilting.

FEATURES:

  • Work Capacity: 1-5/16 (33mm) approx. dia.
  • Dimensions: 1-7/8" (48mm) sq. x 3-1/2" (90mm) long.
  • Accuracy: All surfaces (except V’s) parallel and square within .0004". Long V groove is central, parallel and square with all surfaces within .0003". Half inch V groove is central, parallel and square with all surfaces within .00015". V’s are 90° +.0000/-.0004".

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
