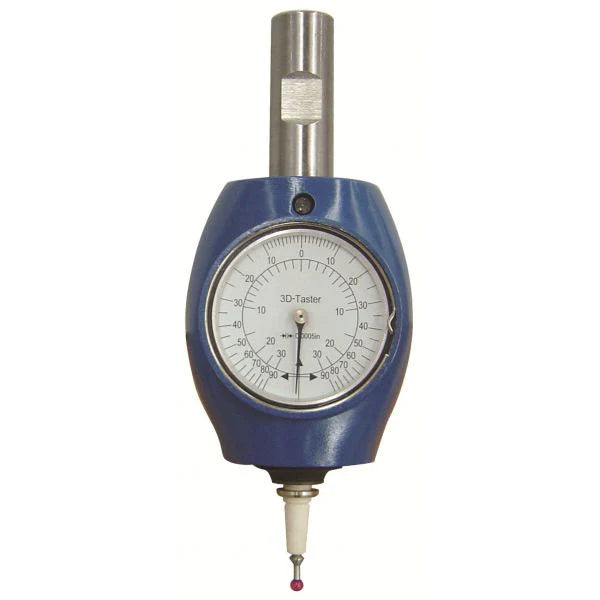

MHC 605-3000-D gauge w/ruby Point Radial 0-.4" x .0005", Axial 0.25 x .00016"

3D-Alignment and Positioning Indicator

• Advanced concept in finding zero, the true starting point of all 3 axis (X-Y-Z) on workpieces.
• Probe actually gets deflected in any of the 3 axes until indicator reaches centerline. At this point
  the workface (edge) is in a direct true line with the spindle.
• Ideal to inspect workpieces in the CNC machine prior to removal.
• Radial run-out compensation! — Two adjustment screws in the X and Y axis to align center of the stylus to the center of the spindle axis.
• With the 3D Taster centered in a toolholder, the workpiece edge can be positively picked up in
  one approach, no guessing as with electronic edgefinders.
• Conveniently used on conductive as well as non-conductive workpieces.
• Contact point is electrically insulated for safe applications on all CNC Centers and EDM machines.
• Replaceable stylus with predetermined breakpoint prevents damage in case of accidental overrun.
  — Overrun protection in all 3 axis.
• Operates in vertical and horizontal position.
• Graduation reference lines 0,01 mm (.0004").
• Accuracy in any direction 0,01 mm (.0004").
• Standard stylus 41 mm long with 4 mm dia. ball included, short and long styli optional.
• Dial diameter 2", body length including standard stylus 4-7/8".
• 3/4" dia. hardened and precision ground shank.
