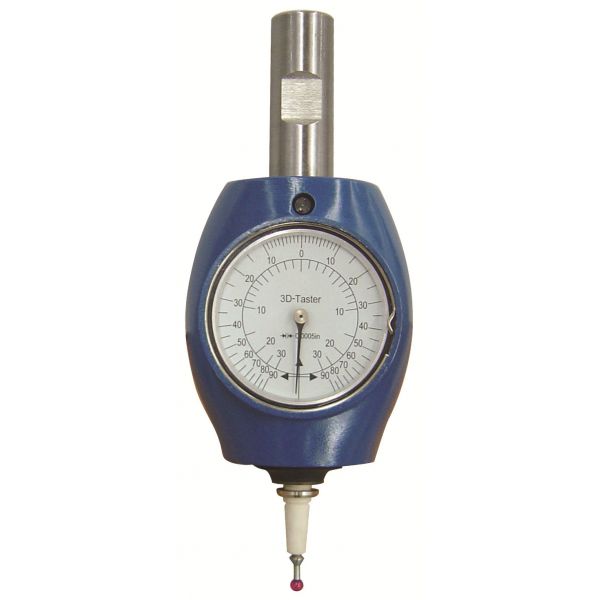

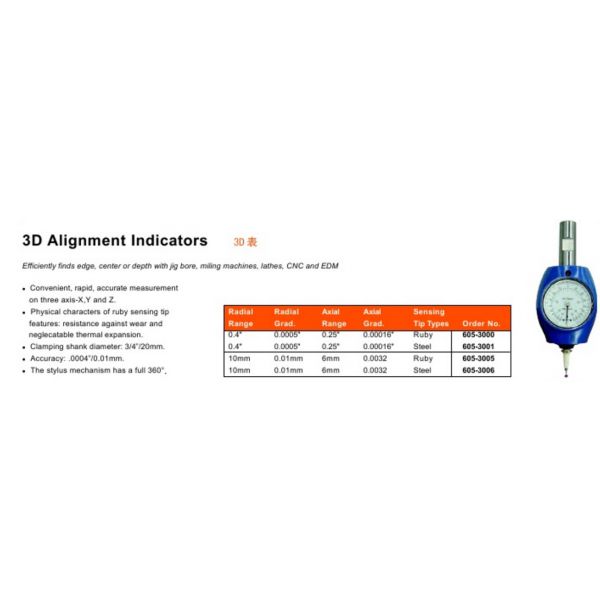

3D-Alignment and Positioning Indicator

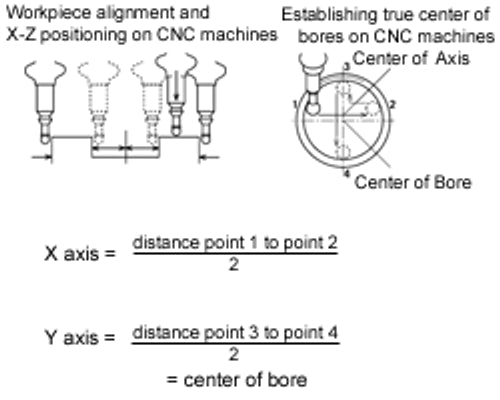

- Advanced concept in finding zero, the true starting point of all 3 axis (X-Y-Z) on workpieces.
-
Probe actually gets deflected in any of the 3 axes until indicator reaches centerline. At this point
the workface (edge) is in a direct true line with the spindle.
- Ideal to inspect workpieces in the CNC machine prior to removal.
- Radial run-out compensation! — Two adjustment screws in the X and Y axis to align center of the stylus to the center of the spindle axis.
-
With the 3D Taster centered in a toolholder, the workpiece edge can be positively picked up in
one approach, no guessing as with electronic edgefinders.
- Conveniently used on conductive as well as non-conductive workpieces.
- Contact point is electrically insulated for safe applications on all CNC Centers and EDM machines.
-
Replaceable stylus with predetermined breakpoint prevents damage in case of accidental overrun.
— Overrun protection in all 3 axis.
- Operates in vertical and horizontal position.
- Graduation reference lines 0,01 mm (.0004").
- Accuracy in any direction 0,01 mm (.0004").
- Standard stylus 41 mm long with 4 mm dia. ball included, short and long styli optional.
- Dial diameter 2", body length including standard stylus 4-7/8".
- 3/4" dia. hardened and precision ground shank.
