Radius Gauges are recommended for checking or laying out concave or convex radii. An individual gauge for each dimension makes it possible to verify radius or fillet dimensions easier, faster and more accurately in machining, layout, inspection and pattern-making work. The measuring surfaces are precisely finished with smooth, accurate edges.
Features

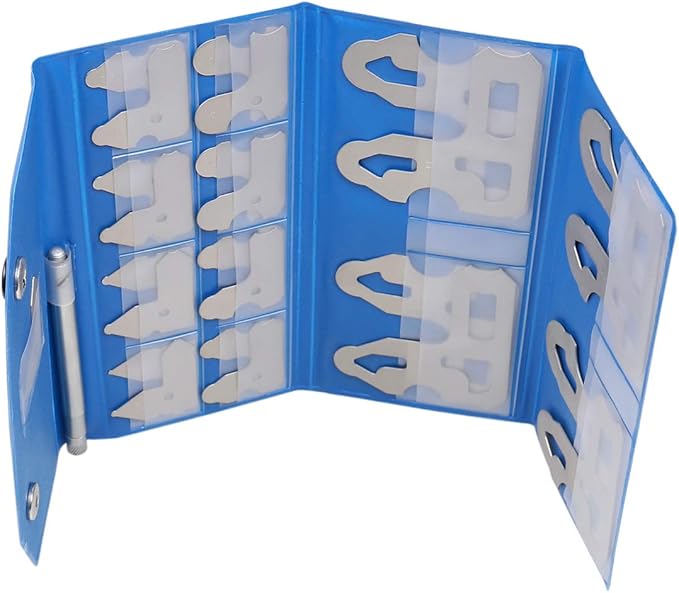

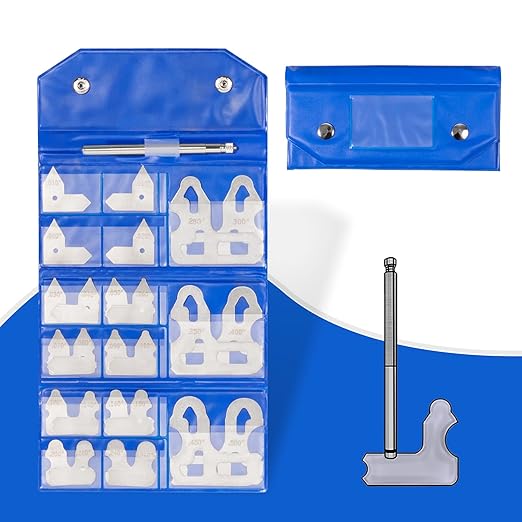

- The Radius Gauges are available separately or in six handy sets

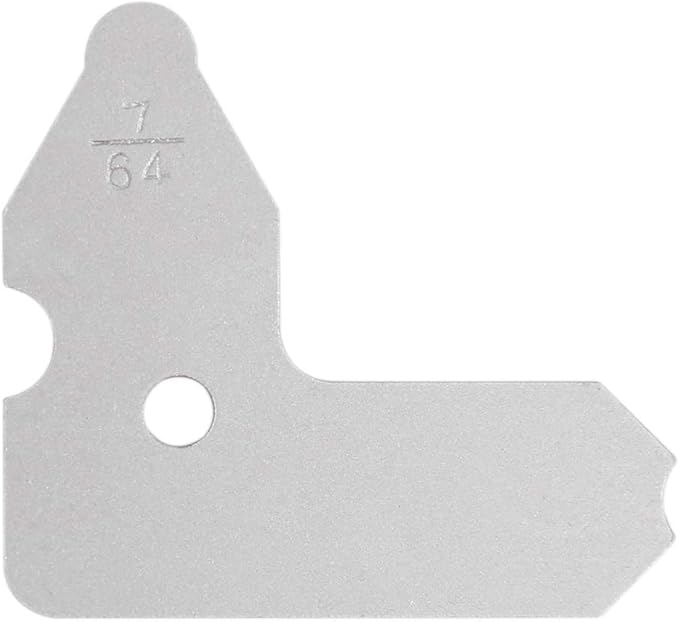

- Each Radius Gauge has five measuring locations, and it is identified with its particular radius dimensions
- Satin or dull-chrome finish
Applications
- Mechanical Engineering
- Pattern-making Work
- Machining
- Carpentry

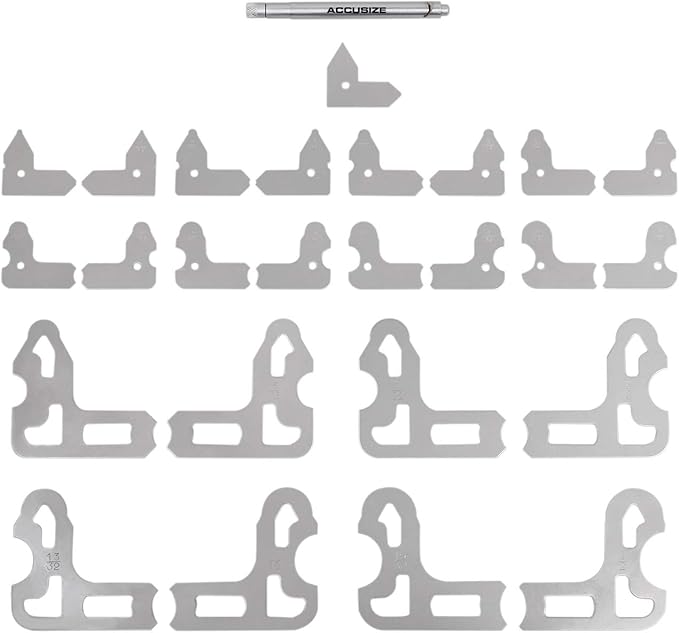

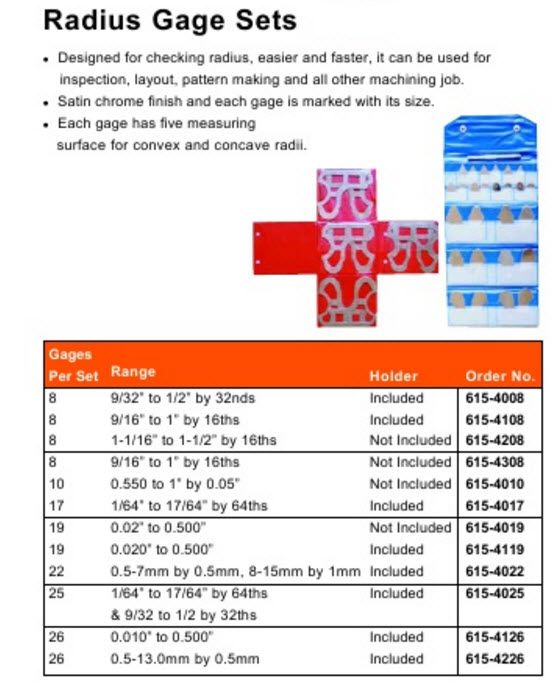

- 25 pcs set 615-4025
- : 1/64"-17/64" by 64ths & 9/32"-1/2" by 32nds with a holder
- The accuracy of 1/64"-7/64": ±0.0008"
- The accuracy of 1/8"-15/64": ±0.0010"
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
