MHC 615-6124 Thread and Angle Gauge 47/1/2 degree British, 14/1/2 degree Acme, 55 degree Whitworth
MHC 615-6124 Thread and Angle Gauge 47/1/2 degree British, 14/1/2 degree Acme, 55 degree Whitworth
Roll over image to zoom in Click on image to zoom
MHC 615-6124 Thread and Angle Gauge 47/1/2 degree British, 14/1/2 degree Acme, 55 degree WhitworthMHC 615-6124 Thread and Angle Gauge 47/1/2 degree British, 14/1/2 degree Acme, 55 degree Whitworth

MHC 615-6124 Thread and Angle Gauge 47/1/2 degree British, 14/1/2 degree Acme, 55 degree Whitworth

MHCSKU: 615-6124
Price: £10.00 Excluding VAT
  • Screw Cutting Gauge
    Manufactured from hardened and polished stainless steel, all gauge surfaces are accurately ground.
    It is most useful for checking tool angle while cutting threads in metal turning lathes. The angle on the thread cutting tool is checked on the V slots in the gauge.
    Relief at the end of each slot enables proper seating of the cutting tool in the slot thus ensuring correct angle.

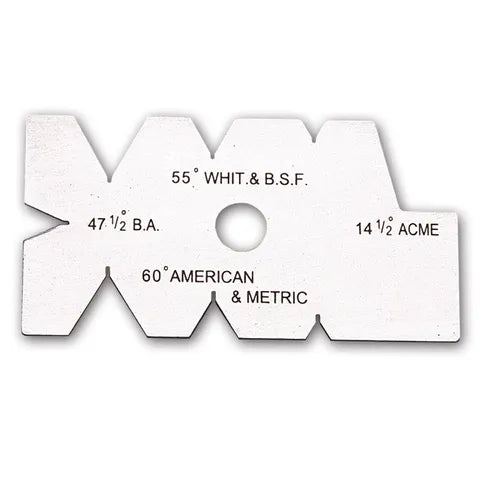

    The gauge clearly indicates 55° for Whitworth and BSF Threads; 47-1/2° for BA Threads, 60° for Metric and American National Threads and 14-1/2° for Acme threads.

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
