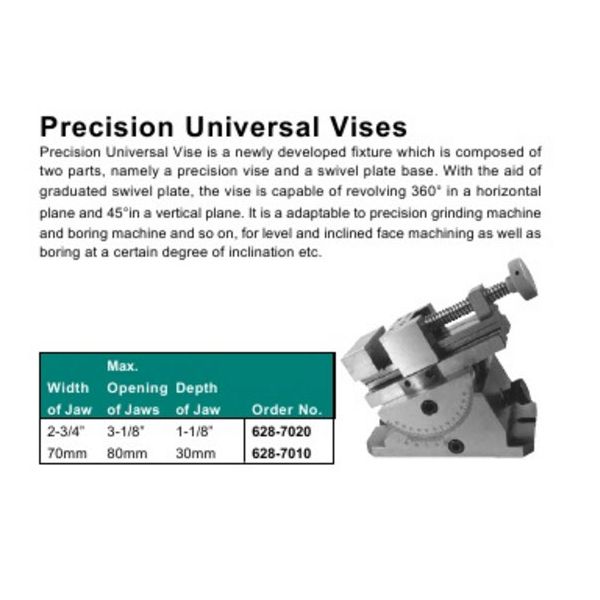

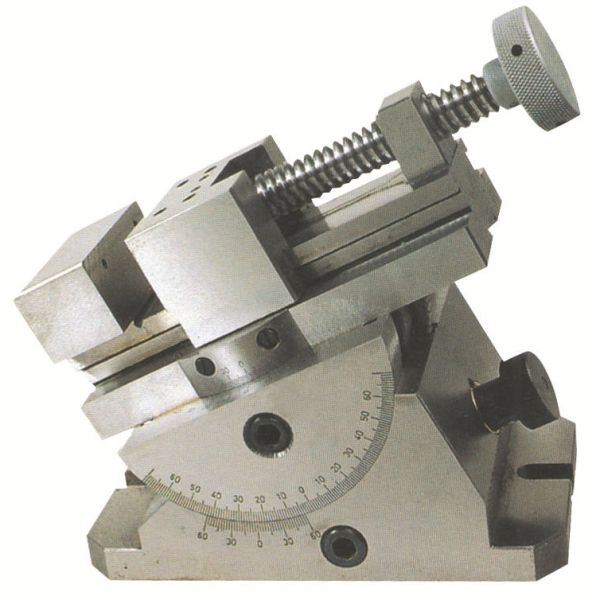

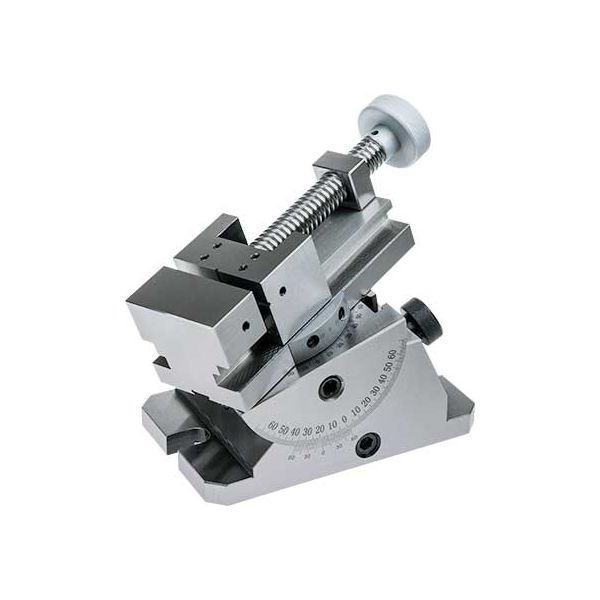

This precision universal movement vise has a jaw width of 2-3/4 inch, a jaw depth of 1.18 inch, and a jaw opening of 3.15 inch.
The two part components are a precision vise and a swivel angle plate base. It revolves 360º horizontally with 3 inch graduation engraved and +/-45º vertical with 3 inch graduation engraved.
It has an adjustable knob for vertical angles and includes an L-wrench for locking the vise horizontally at any position. It is hardened and ground to 0.0004 inch.
This vise offers unique universal movement for precision grinding, machining, boring, and various applications.
MHC 628-7010 Precision Universal 2 way Toolmakers Accuracy Vice is square and parallel to .0002"/.005mm jaw width 70mm jaw depth 30mm jaw opening 80mm two part components revolving capability
