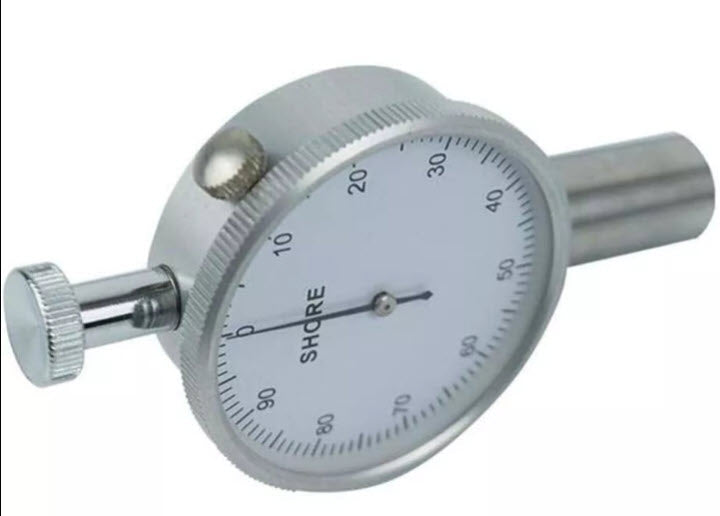

Shore D Durometer LX-D Rubber Plastic Hardness Tester 0-100HD ASTM D2240 NEW
Introduction:
Designed for testing the hardness of various hard plastic, rubber, glass, printed board, fiber, colophony, such as thermo plastics, flooring and bowling balls.
1.Tippered Pin 30°
2.Full 360 deg sweep
3.Simple structure
4.Easy operation
5.Large dial, easy reading
6.Complied with ASTM D2240, ISO/R686, DIN 53505, and JIS R7215
7.Can be adapted with optional hardness test stand
Parameter:
1.Measuring range: 0 - 100 Shore D units
2.Measuring spring force: 4.45-44.5 N
3.Depth of indentation: 0 - 2.5 mm ( the testing material has to be thicker than 6 mm)
4.Test pressure: 50 N
5.Dial diameter: 55 mm
6.Dimensions: 115 x 60 x 25 mm
7.Weight: 200 g (net); 300 g (gross)
