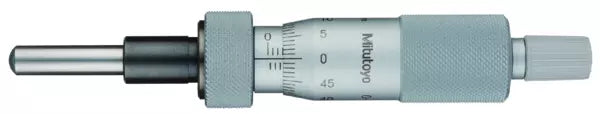

Micrometer Head, Medium-sized Standard 0-25mm, Spindle Lock, Spherical Spindle 150-803
Micrometer Head, Medium-sized Standard 0-25mm, Spindle Lock, Spherical Spindle 150-803
Roll over image to zoom in Click on image to zoom
Micrometer Head, Medium-sized Standard 0-25mm, Spindle Lock, Spherical Spindle 150-803Micrometer Head, Medium-sized Standard 0-25mm, Spindle Lock, Spherical Spindle 150-803

Micrometer Head, Medium-sized Standard 0-25mm, Spindle Lock, Spherical Spindle 150-803

MitutoyoSKU: 150-803
List price: £190.00 Offer price: £139.00 Excluding VAT
This is a standard, medium-size micrometer head that offers you the following benefits:
  • Plain stem and a flat or spherical spindle end
  • With carbide-tipped spindle
Features
Digital/Analog:
Analog
Delivered:
In a paper box with spanner 301336
Inch-Metric:
Metric
Graduation:
0,01 mm
Range:
0 - 25 mm
Max.
Permissible Error
J MPE:
±2 µm
Graduation:
0,01 mm

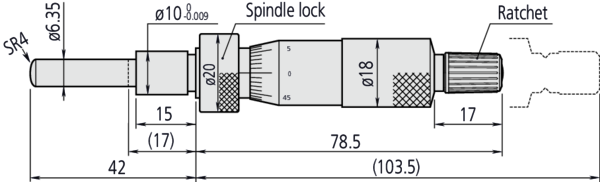

Spindle end:
Spherical (SR4)
Spindle pitch:
0,5 mm
Stem Ø:
10 mm
Stem:
Plain
Measuring face:
Carbide-tipped
Mass:
125 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Micrometer Head, Medium-sized Standard 0-25mm, Spindle Lock, Spherical Spindle 150-803 Click to open the PDF document
