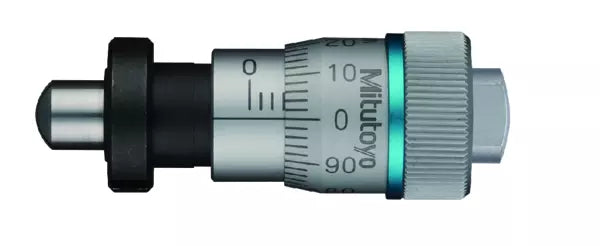

Micrometer Head, Spindle Feed 0,1mm/rev. 0-6,5mm, 0,002mm, Spherical, with Clamp Nut 148-343-10

Roll over image to zoom in Click on image to zoom

Micrometer Head, Spindle Feed 0,1mm/rev. 0-6,5mm, 0,002mm, Spherical, with Clamp Nut 148-343-10

Name: Micrometer Head, Spindle Feed 0,1mm/rev. 0-6,5mm, 0,002mm, Spherical, with Clamp Nut 148-343-10
Brand: Mitutoyo
SKU: 148-343-10
Price: 76.3 GBP
Availability: InStock

MitutoyoSKU: 148-343-10

All prices exclude VAT, which will be added at checkout.

Price:

£76.30 £109.00

Quantity:

These micrometer heads have a very fine spindle feed of 0.1 mm/rev.
They offer the following benefits:

Small size micrometer heads with extremely fine pitch of 0.1 mm.
Ideal for fine adjustment applications in scientific apparatus.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	148-343-10
Measuring Ranges	0-6.5mm
Resolution	0,002mm
Display Type	Analogue
Type	Head

Digital/Analog:	Analog
Delivered:	In a paper box with spanner 301336
Inch-Metric:	Metric
Range:	0 - 6.5 mm
Graduation:	0.002 mm
Max. Permissible Error J MPE:	±2 µm
Spindle end:	Spherical (SR4)
Spindle pitch:	0.1 mm
Stem Ø:	9.5 mm
Stem:	w/ clamp nut
Fixture thickness for clamp nut:	6 mm
Measuring face:	Hardened steel (> 60 HRC)
Measuring face:	Hardened steel (> 60 HRC)
Mass:	31 g
