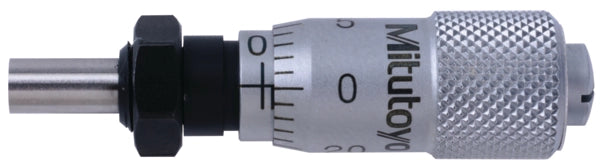

Micrometer Head, Ultra Small Type 0-0.25", 0.001", Flat, with Clamp Nut 148-204-10
Micrometer Head, Ultra Small Type 0-0.25", 0.001", Flat, with Clamp Nut 148-204-10
Roll over image to zoom in Click on image to zoom
Micrometer Head, Ultra Small Type 0-0.25", 0.001", Flat, with Clamp Nut 148-204-10Micrometer Head, Ultra Small Type 0-0.25", 0.001", Flat, with Clamp Nut 148-204-10

Micrometer Head, Ultra Small Type 0-0.25", 0.001", Flat, with Clamp Nut 148-204-10

MitutoyoSKU: 148-204-10
List price: £57.40 Offer price: £42.00 Excluding VAT
This ultra-small micrometer head allows you to easily incorporate it into machines and offers you the following benefits:
  • Plain stem and a flat spindle end
  • Hardened steel measuring surface
Features
Digital/Analog:
Analog
Delivered:
In a paper box
Inch-Metric:
Inch
Range:
0 - 0.25 "
Graduation:
0,001"
Max.
Permissible Error
J MPE:
±0,00025"
Spindle end:
Flat
Spindle pitch:
0,5 mm
Stem Ø:
0.25" mm
Stem:
w/ clamp nut
Fixture thickness for clamp nut:
4 mm
Measuring face:
Hardened steel (>60 HRC)
Mass:
10 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Micrometer Head, Ultra Small Type 0-0.25", 0.001", Flat, with Clamp Nut 148-204-10 Click to open the PDF document
