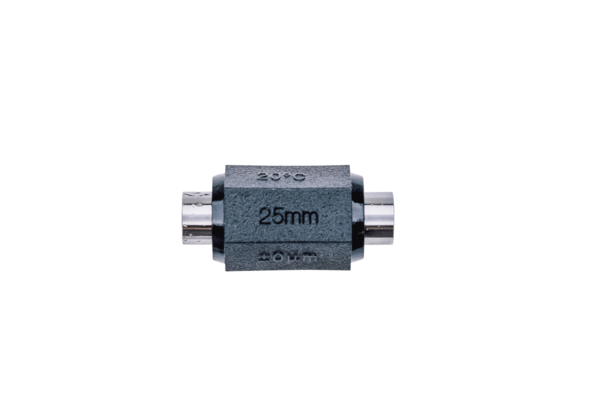

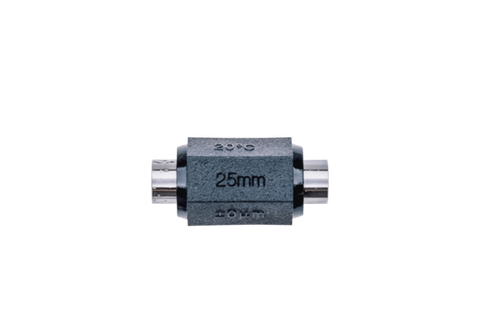

Micrometer Setting Standard Length: 25mm 167-101
Micrometer Setting Standard Length: 25mm 167-101
Roll over image to zoom in Click on image to zoom
Micrometer Setting Standard Length: 25mm 167-101Micrometer Setting Standard Length: 25mm 167-101

Micrometer Setting Standard Length: 25mm 167-101

MitutoyoSKU: 167-101
List price: £17.30 Offer price: £13.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Mitutoyo; Micrometer Setting Standard

A Mitutoyo precision length standard for accurately setting a micrometer at the start or end of its measuring range. Can also be used for setting other types of continuous-scale measuring instruments at a certain point within the measuring range when wishing to use the narrow-range accuracy capabilities of that instrument.

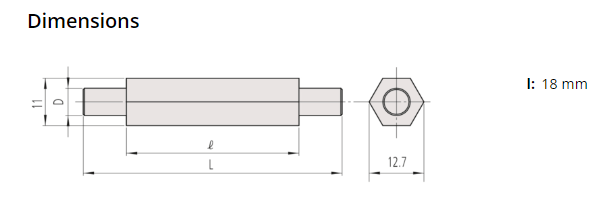

Specification
Delivered:
In a carton box
Inch-Metric:
Metric
Length (L):
25 mm
Diameter (D):
6,35 mm
Accuracy:
±1,5 µm
Flatness:
0,3 µm
Parallelism:
2 µm
Measuring face:
Micro-lap finish

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Micrometer Setting Standard Length: 25mm 167-101 Click to open the PDF document
