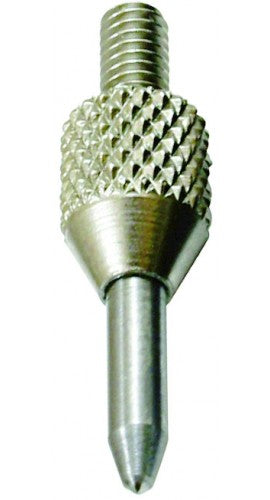

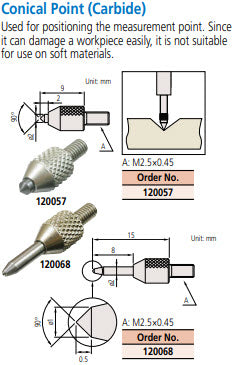

This conical point rod has a carbide tipped sphere. It has a point length of 0.5mm, a rod length of 8mm, a rod diameter of Ø1mm, a body length of 15mm, and a tip angle of 90°. Used for positioning a measuring point accurately. The stylus is not suitable for measuring a soft workpiece since its tip easily scratches the workpiece.
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
