Name: Mitutoyo 172-144 Series 218 Rotary Vices Description : Rotary Vice Type : 1 Slide Jaw Max. Workpiece Dia. : 60mm/2.4" Width of Jaw : 40mm/1.6" Angle Reading : 5 Degree Height : 76mm/3"
Brand: Mitutoyo
SKU: 172-142
Price: 753.0 GBP
Availability: InStock

Mitutoyo 172-144 Series 218 Rotary Vices Description : Rotary Vice Type : 1 Slide Jaw Max. Workpiece Dia. : 60mm/2.4" Width of Jaw : 40mm/1.6" Angle Reading : 5 Degree Height : 76mm/3"

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

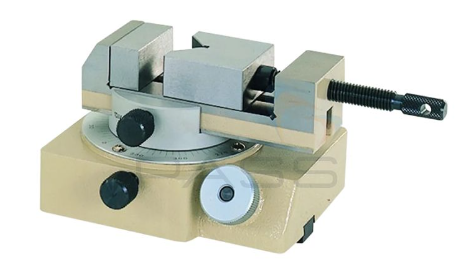

The Mitutoyo 172-144 workpiece fixture is suitable for Profile Projectors and Measuring Microscopes.

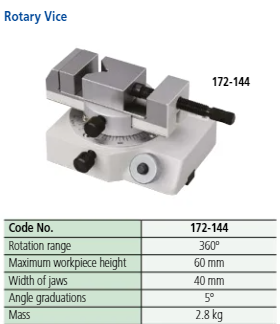

Technical Data

Rotation range: 360°
Maximum workpiece height: 60 mm
Width of jaws: 40 mm
Angle graduations: 5°
Mass: 2.8 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo 172-144 Series 218 Rotary Vices Description : Rotary Vice Type : 1 Slide Jaw Max. Workpiece Dia. : 60mm/2.4" Width of Jaw : 40mm/1.6" Angle Reading : 5 Degree Height : 76mm/3" Click to open the PDF document
