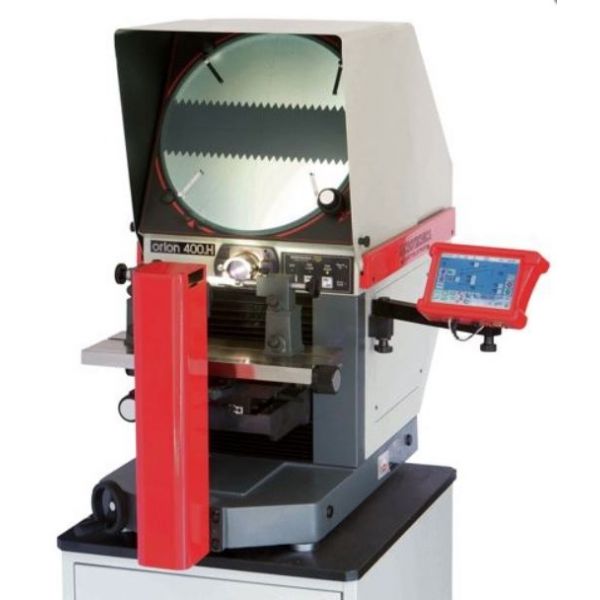

Microtechnicia 780-LM13 Orion Horizontal Optical Comparators 400mm Description : Orion 400mm Horizontal Comparator Screen : 400 mm (16")

350 mm  screen
• Diascopic LED projection with 24V 40W lamp and air-cooling fan
• Episcopic projection
• Automatic protection against over-heating
• Encoder for measuring angular displacements, resolution 20”
• Linear digital transducers, resolution 1 μm
• Worktable on roller guide with following features:
 surface mm 400x150
 horizontal travel mm 200 with fast release
 vertical travel mm 150
 focusing travel mm 100
 helix +/- 15 reading 1'
 admitted weight Kg 15 (depending on the position on
the table, weights up to 40 Kg. are permitted)
• T-TOUCH DATA PROCESSOR and DIGITAL READOUT. Built-in compact
readout with X,Y & angular display. Incremental & absolute modes of
measuring, pre setting of values, linear error compensation, mm/inch
conversion, polar/cartesian coordinates, 2D geometrical functions,
part programs. With touch screen colour LCD display, printer
Interface and PC Serial communication. (see details on page 7,
amount already calculated in the price of the profile projector here
above)
• Interchangeable 10X lens
• Optical condenser
• Pivoting holder arm for lamp/optical condenser
• Single phase feeding 220V 50/60Hz
• Overall dimensions cm 48x118x96 (length / width / height)
• Weight Kg 119 approx.
