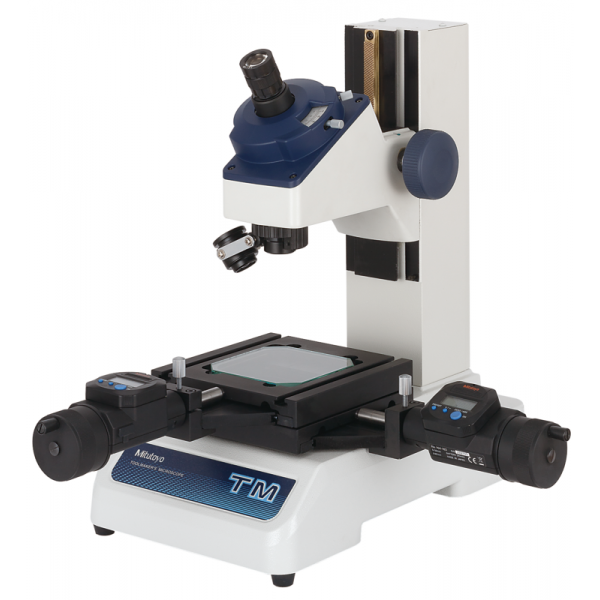

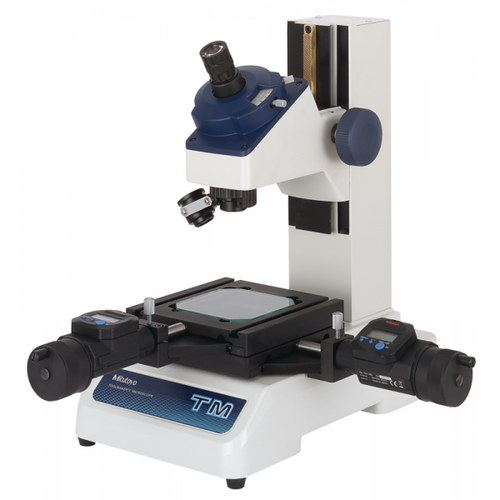

Mitutoyo 176-818E Series 176 TM-Series Toolmakers Microscopes Range 2 x 2" / 50 x 50mm

Mitutoyo 176-818E Series 176 TM-Series Toolmakers Microscopes

• Bench-top model that uses horizontal optical system
• Suitable for thread pitch measurements-blurred or distorted images will not be produced when workpiece is angled
• Inverted image on the day bright screen
• Heavy-duty workpiece table incorporates linear scales for fast, accurate measurement
• Surface illumination - oblique single-source type, Stepless brightness adjustment, White LED light source
• Transmitted illumination - illumination Stepless brightness adjustment, White LED light source, With green filter
• Angle measurement is performed easily by turning the angle scale disc to align the cross-hair reticule with the workpiece image

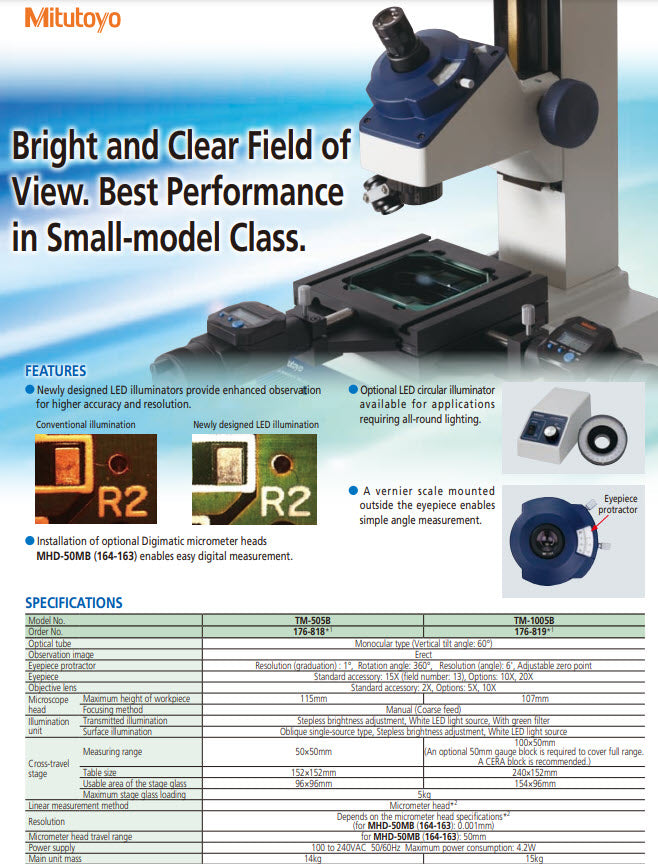

Specifications:

• Angle Rotation: 360 degree
• Eyepiece (Options): 10X, 20X
• Eyepiece (Standard): 15X
• Eyepiece Protractor Resolution (Graduation): 1 degree
• Focusing Method: Manual (Coarse feed)
• Maximum Height of Workpiece: 115 mm
• Maximum Power Consumption: 4.2 watt
• Maximum Stage Glass Loading: 5 kg
• Measuring Range: 50 × 50 mm
• Objective Lens (Options): 5X, 10X
• Objective Lens (Standard): 2X
• Observation Image: Erect
• Optical Tube: Monocular Type (Vertical Tilt Angle): 60 degree
• Voltage: 100 to 240 volt
• Frequency: 50/60Hz
• Stage Glass Usable Area: 96 × 96 mm
• Table Size: 152 × 152 mm
• Weight: 14 kg
