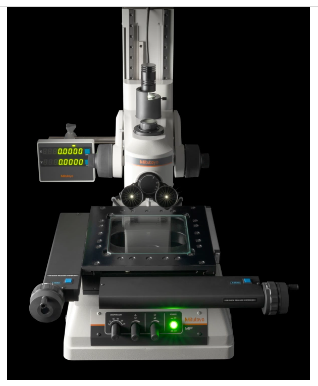

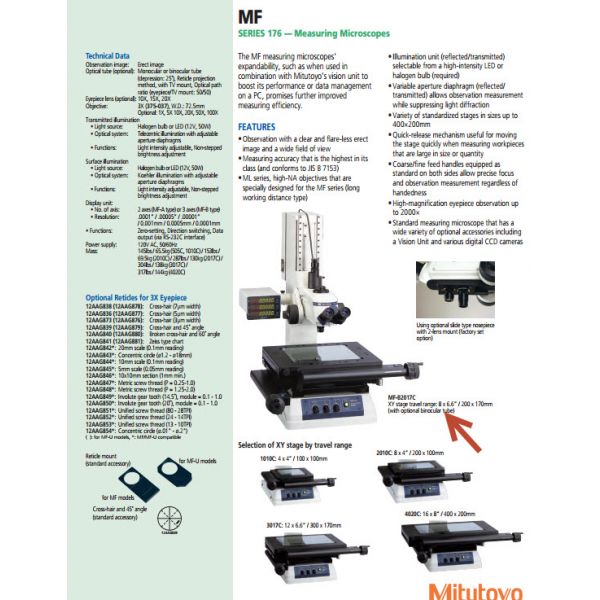

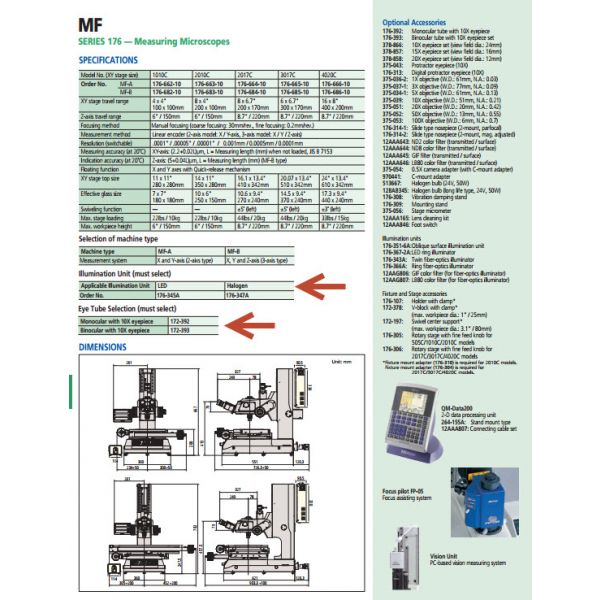

MF Series 176- Measuring Microscopes
Series 176
Features
The MF measuring microscopes' expandability, such as when used in combination with Mitutoyo vision unit to boost its performance or data management on a PC, promises further improved measuring efficiency.- Observation with a clear and flare-less erect image and a wide field of view
- Measuring accuracy that is the highest in its class (and conforms to JIS B 7153)
- ML series, high-NA objectives that are specially designed for the MF series (long working distance type)
- Illumination unit (reflected/transmitted) selectable from a high-intensity LED or halogen bulb (required)
- Variable aperture diaphragm (reflected/transmitted) allows observation measurement while suppressing light diffraction
- Variety of standardized stages in sizes up to 400×200mm
- Quick-release mechanism useful for moving the stage quickly when measuring work pieces that are large in size or quantity
- Coarse/fine feed handles equipped as standard on both sides allow precise focus and observation measurement regardless of handedness
- High-magnification eyepiece observation up to 2000×
- Standard measuring microscope that has a wide variety of optional accessories including a Vision Unit and various digital CCD cameras
- See more at: http://ecatalog.mitutoyo.com/MF-Series-176-Measuring-Microscopes-C1410.aspx#sthash.y00NlN4E.dpuf

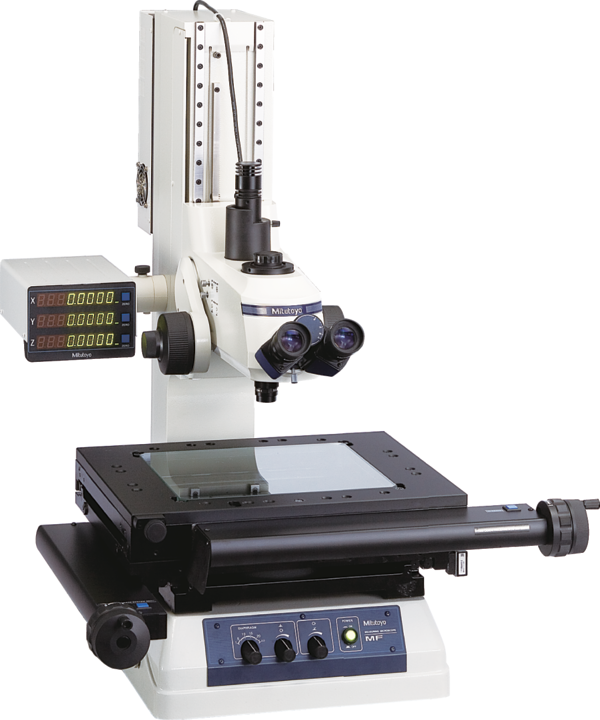

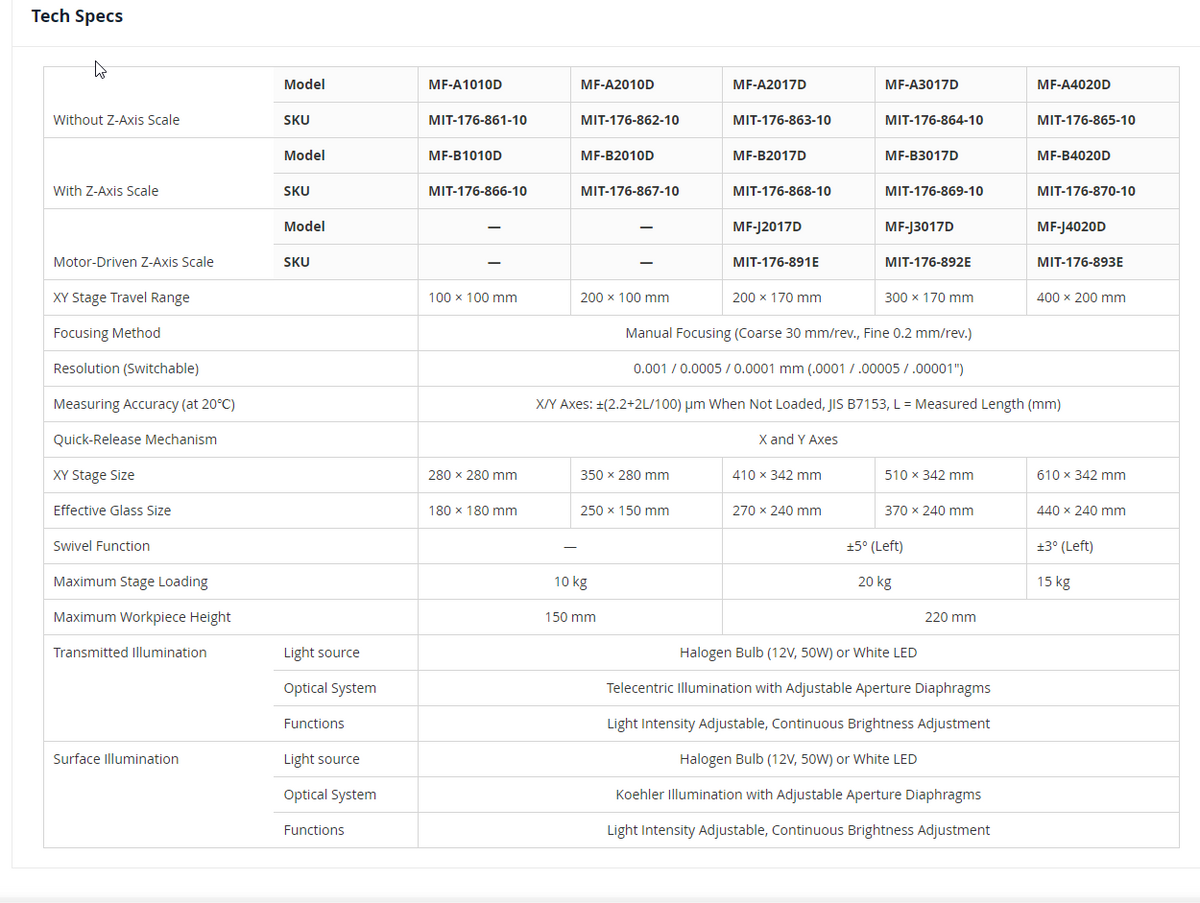

Mitutoyo 176-864-10 Mitutoyo MF-A Toolmakers Microscopes Model No : MF-A-3017D
2 Axis Unit XY Stage Travel : 12" x 7"/300mm x 170mm, Z Travel : 8.7"/220mm Resolution : .0001" .00005" .00001"/.001mm .0005mm .0001mm, Eye Tube and Illumination is optional extra must be ordered with Microscope
2 Axis Unit XY Stage Travel : 12" x 7"/300mm x 170mm, Z Travel : 8.7"/220mm Resolution : .0001" .00005" .00001"/.001mm .0005mm .0001mm, Eye Tube and Illumination is optional extra must be ordered with Microscope
Model No = MF-A-3017D

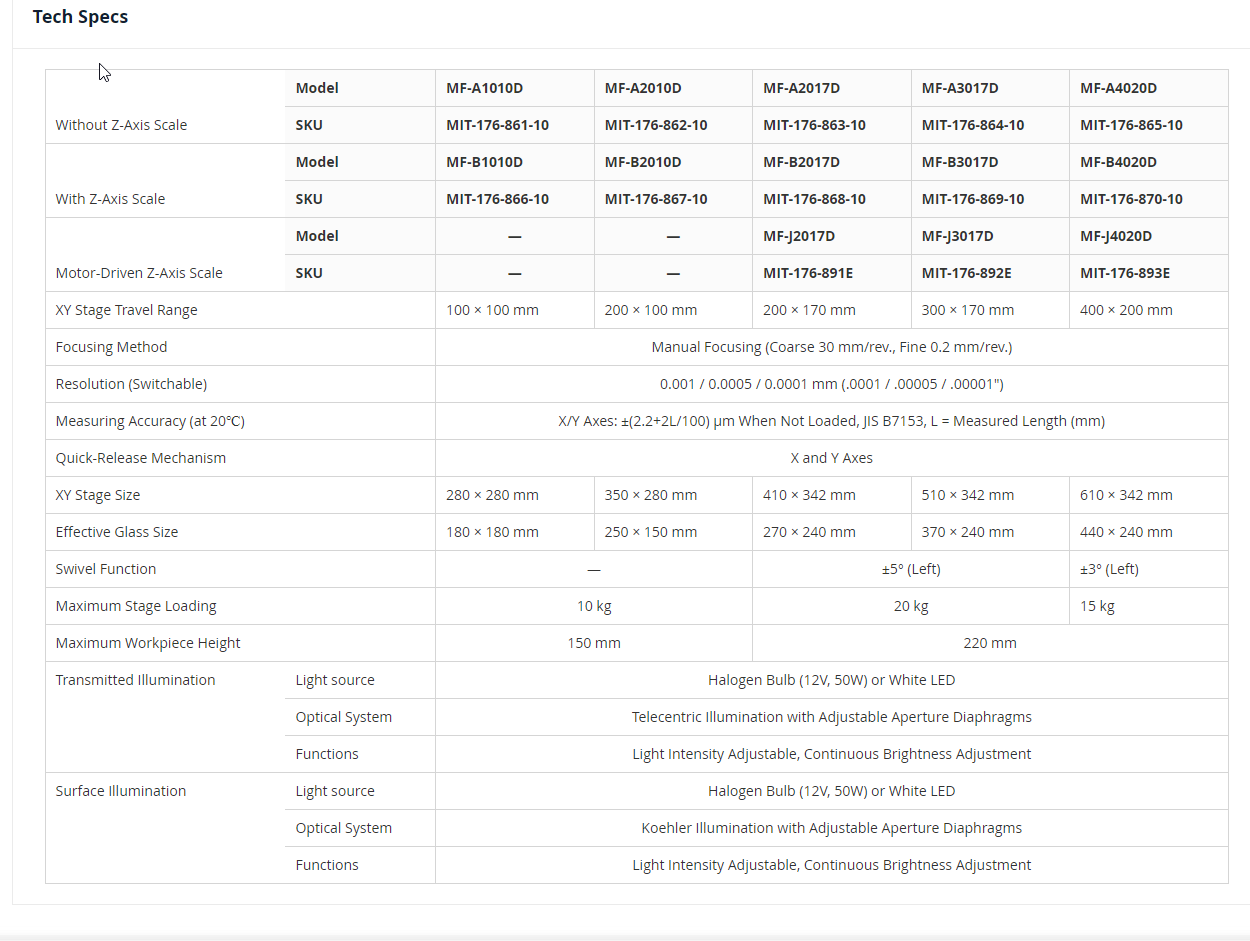

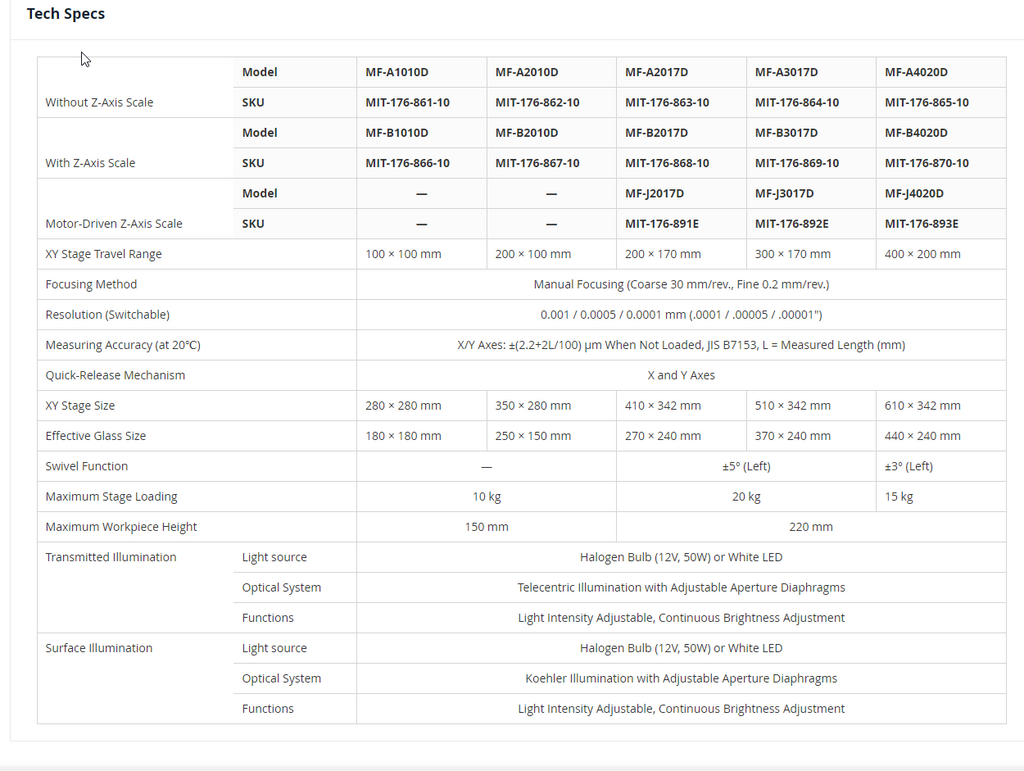

2 Axis Unit|XY Stage Travel = 12 x 7"/300mm x 170mm|Z Travel = 8.7"/220mm ( No Scale)|Resolution = .0001" .00005" .00001"/.001mm .0005mm .0001mm|Measuring accuracy XY = (2.2 +0.02L)in microns| Type = 2 Axis| Readout =2 Axis| Illumination Unit= Optional Extra 176-445A LED or 176-447A Halogen| Eye Tube= Optional Extra 176-392 Monocular with 10X Eyepiece,176-393 Binocular with 10X Eyepieces | Stage =Manual|
2 Axis Unit|XY Stage Travel = 12 x 7"/300mm x 170mm|Z Travel = 8.7"/220mm ( No Scale)|Resolution = .0001" .00005" .00001"/.001mm .0005mm .0001mm|Measuring accuracy XY = (2.2 +0.02L)in microns| Type = 2 Axis| Readout =2 Axis| Illumination Unit= Optional Extra 176-445A LED or 176-447A Halogen| Eye Tube= Optional Extra 176-392 Monocular with 10X Eyepiece,176-393 Binocular with 10X Eyepieces | Stage =Manual|
No technical information is currently available.
No application information is currently available.
