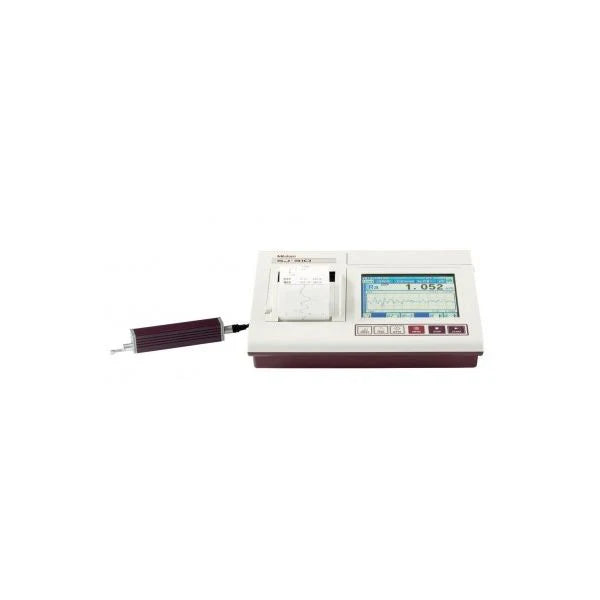

Mitutoyo 178-571-22E Surftest SJ-310 [inch/mm] R5µm; 4mN

Roll over image to zoom in Click on image to zoom

Mitutoyo 178-571-22E Surftest SJ-310 [inch/mm] R5µm; 4mN

Name: Mitutoyo 178-571-22E Surftest SJ-310 [inch/mm] R5µm; 4mN
Brand: Mitutoyo
SKU: 178-571-22E
Price: 3282.4 GBP
Availability: InStock

MitutoyoSKU: 178-571-22E

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£3,282.40 £3,730.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Surface Roughness Tester Features

Detector measuring force: 4mN
Stylus tip angle: 60°
Stylus tip radius: 2 µm
Measuring speed: 0.25, 0.5, 0.75 mm/s (returning: 1 mm/s)
Measuring method: Skidded
Range: 360 µm (-200 µm to +160 µm)
Profiles: Roughness Profile (R), R-Motif, DF-Profile and more
Standard: EN ISO, VDA, JIS, ANSI and customize settings
Analysis graphs: BAC, ADC
Digital filter: Gauss, 2CR75, PC75
Cut-off length: λc : 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm; 8 mm λs : 2.5 µm; 8 µm
Printer: Thermal Printer
Interface: USB, Digimatic output, RS-232C, external software interface
Power supply: AC adapter or rechargeable battery
Functions: Surftest SJ-310
Inch-Metric
