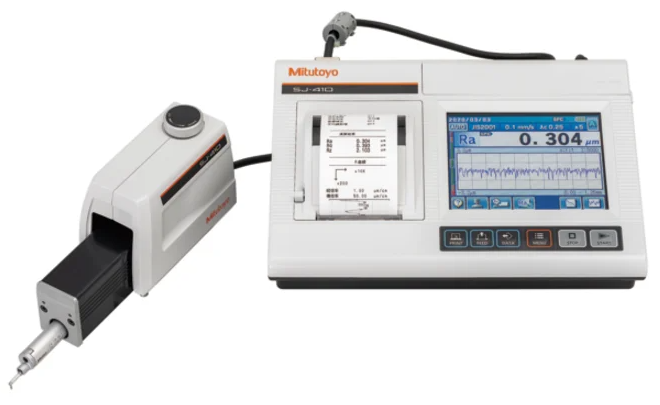

Mitutoyo 178-580-32D Surftest SJ-411 [mm] R5µm; 4mN; X=25mm

Roll over image to zoom in Click on image to zoom

Mitutoyo 178-580-32D Surftest SJ-411 [mm] R5µm; 4mN; X=25mm

Name: Mitutoyo 178-580-32D Surftest SJ-411 [mm] R5µm; 4mN; X=25mm
Brand: Mitutoyo
SKU: 178-580-32D
Price: 7620.0 GBP
Availability: InStock

MitutoyoSKU: 178-580-32D

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£7,620.00

Quantity:

All prices exclude VAT, which will be added at checkout.

The Surftest SJ-410 offers you the following benefits:

Skidless system with touch-screen functionality and built-in printer.
It works independently of mains power, allowing you to make on-site measurements.
Easy and intuitive menu navigation.
The large 14.5 cm [5.7“] colour LCD gives you high visibility.
The skidless detector allows you to measure the primary profile (P), roughness profile (R),
waviness profile (W) and more.
Surface compensation of curved, radial and tilted surfaces.
It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
You can store up to 10 different measuring conditions inside the SJ-410, and up to 500 with an optional SD card.
It allows two different evaluation conditions within one measurement adjustable.
You can separately password protect many functions.
It comes with support for 16 languages.
Available options include an auto-set unit, X-axis fine adjustment and digital levelling unit.

Features

Traverse:	SJ-411: 25 mm SJ-412: 50 mm
Functions:	Surftest SJ-411 Traverse : 25 mm Traverse straightness : 0,3 µm / 25 mm
Measuring speed:	0.05, 0.1, 0.5, 1 mm/s
Detector measuring force:	0.75 mN
Stylus tip angle:	60°
Stylus tip radius:	2 µm
Measuring method:	Skidless / skidded
Range:	800 µm; 80 µm; 8 µm (up to 2,4 mm with an optional stylus)
Positioning:	±1.5° (tilting), 10 mm (up/down)
Profiles:	Primary Profile (P), Roughness Profile (R), Waviness (W), MOTIF (R, W) and more
Standard:	EN ISO, VDA, JIS, ANSI and customize settings
Analysis graphs:	BAC, ADC
Digital filter:	Gauss, 2CR75, PC75
No. of sampling length (L):	x 1, x 3, x 5, x L* (* or any value)
Cut-off length:	λc : 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm; 8 mm λs : 2.5 µm; 8 µm; 25 µm
Printer:	Thermal Printer
Tolerance:	Coloured upper / lower limit
Interface:	USB, Digimatic, RS-232C, Foot switch
Power supply:	Via AC adapter, rechargeable battery
Mass:	2.8 kg
