| Inch-Metric: |
Inch/Metric
|

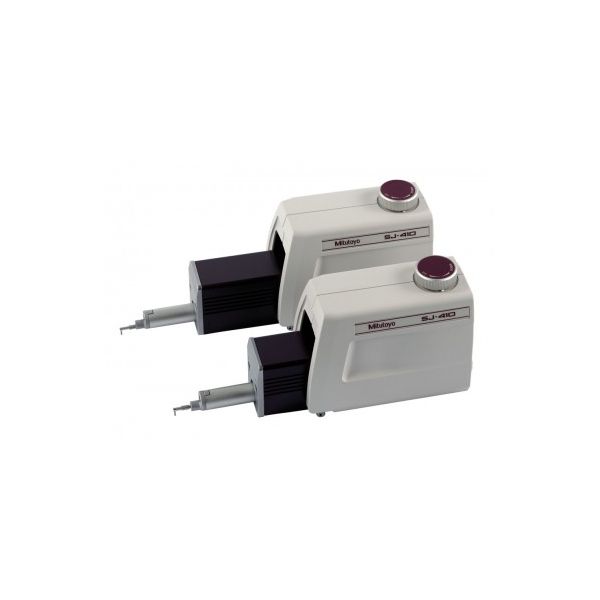

| Traverse: |
SJ-411: 25 mm
SJ-412: 50 mm
|
| Functions: |

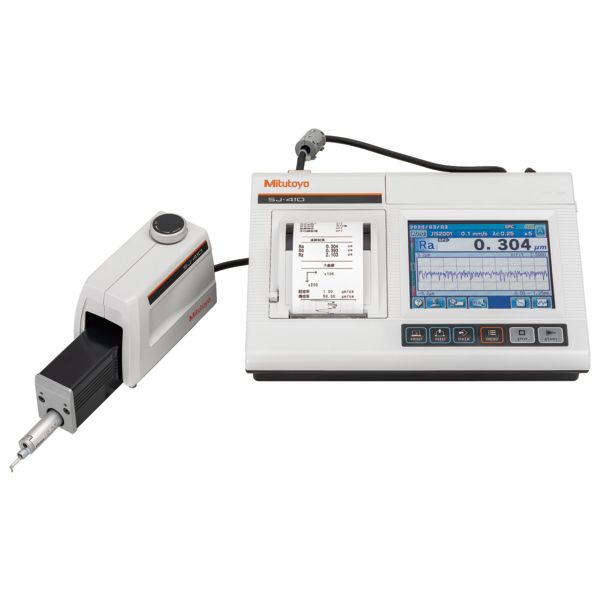

Surftest SJ-411
Traverse : 25 mm
Traverse straightness : 0,3 µm / 25 mm
|
| Measuring speed: |
0.05 mm/s; 0.1 mm/s; 0.2 mm/s;
0.5 mm/s; 1 mm/s
|
| Detector measuring force: |
0.75 mN
|

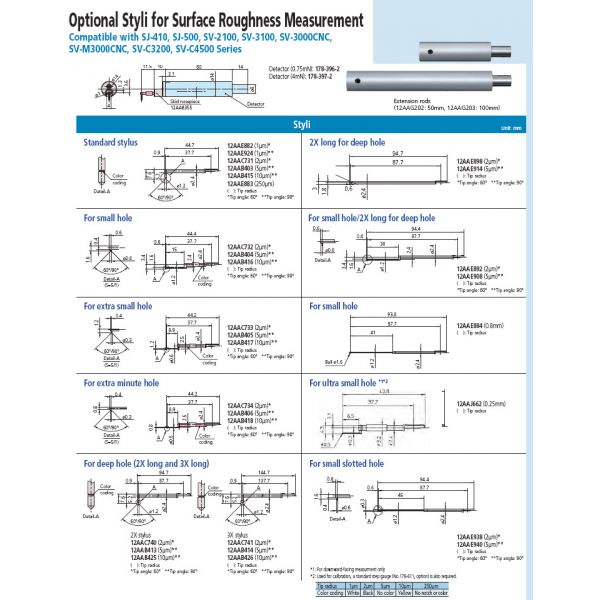

| Stylus tip angle: |
60°
|
| Stylus tip radius: |
2 µm
|
| Measuring method: |
Skidless - Differential inductance
|
| Range: |
800 µm; 80 µm; 8 µm
(up to 2,4 mm with an optional stylus)
|
| Positioning: |
±1.5° (tilting), 10 mm (up/down)
|

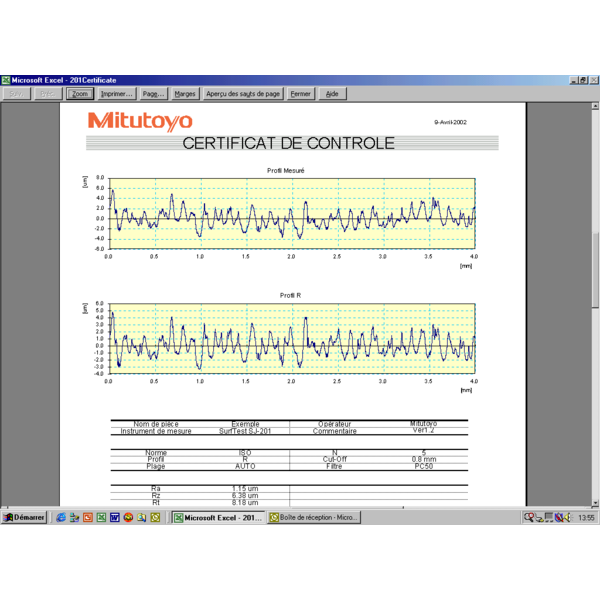

| Profiles: |
Primary Profile (P), Roughness Profile (R), Waviness (W),
MOTIF (R, W) and more
|
| Standard: |
EN ISO, VDA, JIS, ANSI and customize settings
|
| Analysis graphs: |
BAC, ADC
|
| Digital filter: |
Gauss, 2CR75, PC75
|
| Cut-off length: |
λc : 0.08 mm; 0.25 mm; 0.8 mm;
2.5 mm; 8 mm
λs : 2.5 µm; 8 µm; 25 µm
|
| Printer: |
Thermal Printer
|
| Tolerance: |
Coloured upper / lower limit
|
| Interface: |
USB, Digimatic, RS-232C, Foot switch
|
| Power supply: |
AC adapter or rechargeable battery
|
