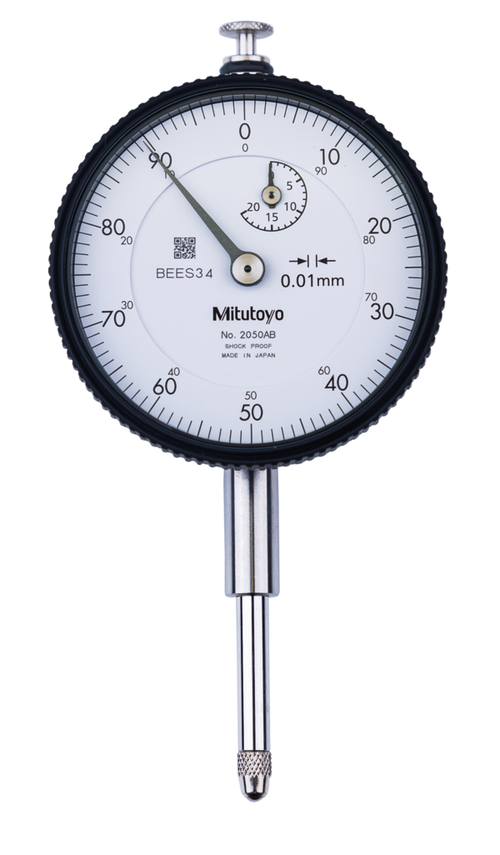

Mitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050F

Roll over image to zoom in Click on image to zoom

Mitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050F

Name: Mitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050F
Brand: Mitutoyo
SKU: 2050F
Price: 55.0 GBP
Availability: InStock

MitutoyoSKU: 2050F

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£55.00 £86.10

Quantity:

All prices exclude VAT, which will be added at checkout.

Description

Standard Type, 20 mm Range, 0,01 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Product Information
Part Number	2050F
Measuring Ranges	20mm
Graduation	.01mm
Accuracy	.02mm
Unit of Measurement	Metric
Measuring Force	≤2N
Repeatability	.004mm
Dial Reading	+/-0-100
Dial Face Size Ø	57mm
Hysteresis	.005mm
Stem	9.52mm/3/8"
Stem Diameter	8mm
Back	Centre Lug Back
Range Per Rev	1mm
Scale	±0-100
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Type:	EN ISO Standard
Delivered:	With certificate of inspection
Range:	20 mm
Range per rev.:	1 mm
Dial reading:	±0-100
Graduation:	0.01 mm
MPE any 1/10 revolution:	6 µm
MPE any 1/2 revolution:	10 µm
MPE any 1 revolution:	11 µm
MPE measuring range:	20 µm
H MPE (Hysteresis):	4 µm
R MPE (Repeatability):	3 µm
Measuring force:	0,4-2 N
Mass:	149 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
Cushioned end point:	Yes
