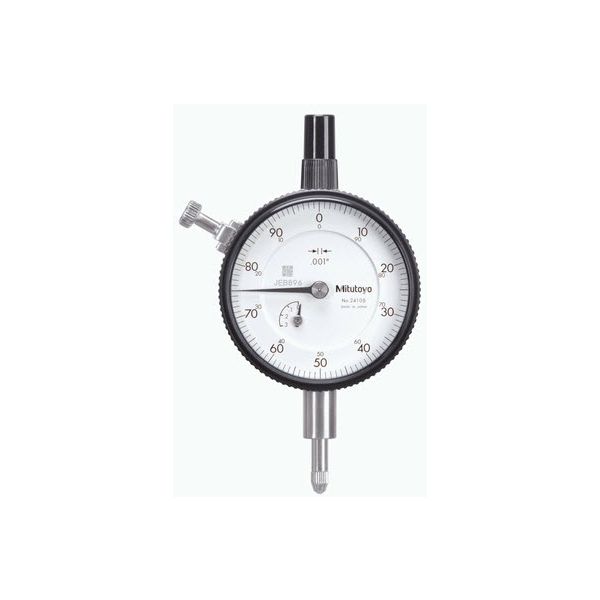

Mitutoyo 2410S Imperial Indicator .001'' x 0.25'' Accuracy:+/- .001'' Lug back 0-100, .1" per Rev, Jewelled
Roll over image to zoom in Click on image to zoom
Mitutoyo 2410S Imperial Indicator .001'' x 0.25'' Accuracy:+/- .001'' Lug back 0-100, .1" per Rev, Jewelled

Mitutoyo 2410S Imperial Indicator .001'' x 0.25'' Accuracy:+/- .001'' Lug back 0-100, .1" per Rev, Jewelled

MitutoyoSKU: 2410S
Price:
£60.12 £83.50



Standard Type, 0,5" / 0,125" Range, 0,001" / 0,005" Graduation - Inch

This is a standard, inch dial indicator. It offers you the following benefits:
  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
Features
Digital/Analog:
Analog
Inch-Metric:
Inch
Delivered:
bezel clamp
Range:
0,25 "
Range
per rev.:
0,1"
Graduation:
0,001"
H MPE (Hysteresis):
0,0002"
R MPE (Repeatability):
±0,0002"
MPE first one revolution:
±0,001"
MPE first 2 1/2 revolutions:
±0,001"
MPE > 2 1/2-10 revolutions:
±0,001"
Type:
ANSI/AGD Standard
Measuring force: 1.5N
Mass:
164 g
Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, thread: 4-48UNF
Continuous dial:
Yes
