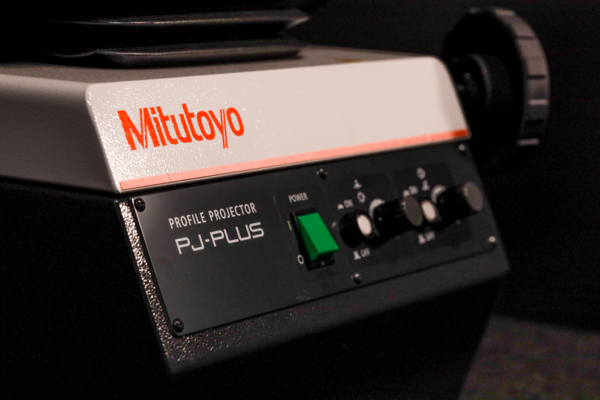

Profile Projector Features:
- Measuring range XY: 100 x 100 mm 8" x 4"/200mm x 100mm
- Resolution: 0.001mm/.00005"
- Measuring unit: Digital scale
- Quick release mechanisim: X and Y axes
- XY stage table top size: 350 x 280 mm 14" x 11"
- XY stage effective area: 240 x 140 mm 9.45" x 5.5"
- Max stage loading: 8 kg
- Max workpiece height: 90.5mm
- Illumination: White LED
- Code: 302-802-10
- Brand: Mitutoyo
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
