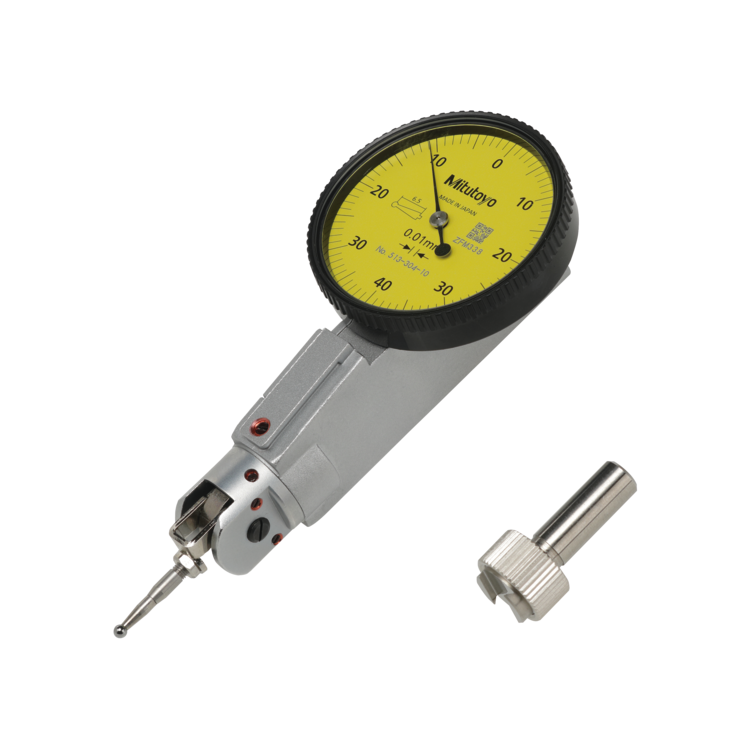

Mitutoyo 513-304-10E (0.01mm) Universal Type Dial Test Indicator 8mm Stem 0.8mm
Mitutoyo 513-304-10E (0.01mm) Universal Type Dial Test Indicator 8mm Stem 0.8mm
Roll over image to zoom in Click on image to zoom
Mitutoyo 513-304-10E (0.01mm) Universal Type Dial Test Indicator 8mm Stem 0.8mmMitutoyo 513-304-10E (0.01mm) Universal Type Dial Test Indicator 8mm Stem 0.8mm

Mitutoyo 513-304-10E (0.01mm) Universal Type Dial Test Indicator 8mm Stem 0.8mm

MitutoyoSKU: 513-304-10E
List price: £434.00 Offer price: £317.00 Excluding VAT

Indicator Features:

  • Range: 0.8mm
  • Resolution: 0.01mm
  • MPE any 10 scale divisions: ±0.005mm
  • MPE Measuring range: 0.008mm
  • Hysteresis: 0.004mm
  • Repeatability: 0.003mm
  • Scale: 0-40-0
  • Measuring Force: 0.3N or less
  • Contact point: M 1.7 x 0.35 mm
  • Metric
  • MPN: 513-304-10E
  • Brand: Mitutoyo

Test Indicator (Lever Type) offers you the following benefits:

  • Drastically enhanced durability, sensitivity and visibility.
  • Glare-free flat crystal face allows easy reading of graduations.
  • O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
  • The stylus length is on the dial face to reorder a replacement
  • Multi-layer coatings on the crystal.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo 513-304-10E (0.01mm) Universal Type Dial Test Indicator 8mm Stem 0.8mm Click to open the PDF document
