A gauge block set with all blocks made of special tool steel, heat treated and aged to give good wear resistance and small secular change. Excellent inter-set wringing properties and will wring to optical flats or gauge blocks made of any other material.
Mitutoyo 516-942-11 Metric 1mm Base Steel Gauge Block Sets 103 Piece Grade 0
| Inch-Metric: |
Metric
|
| Type of Certificate: |
Inspection certificate
|
| Delivered: |
In a wooden case with certificate of inspection
|
| Accuracy: |

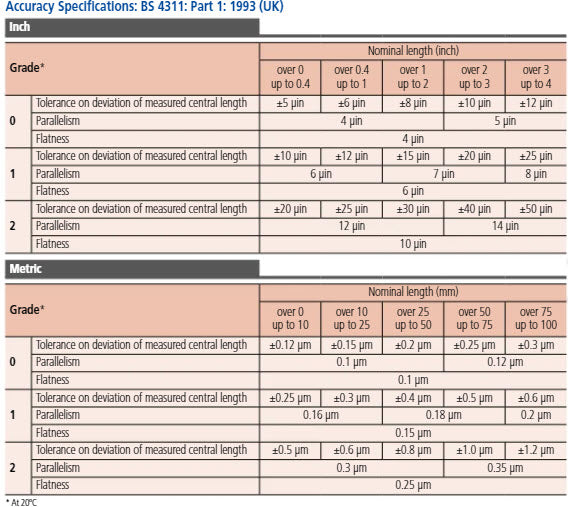

EN ISO 3650
|
| Grade: | 2 |
| Material: |
Steel
|

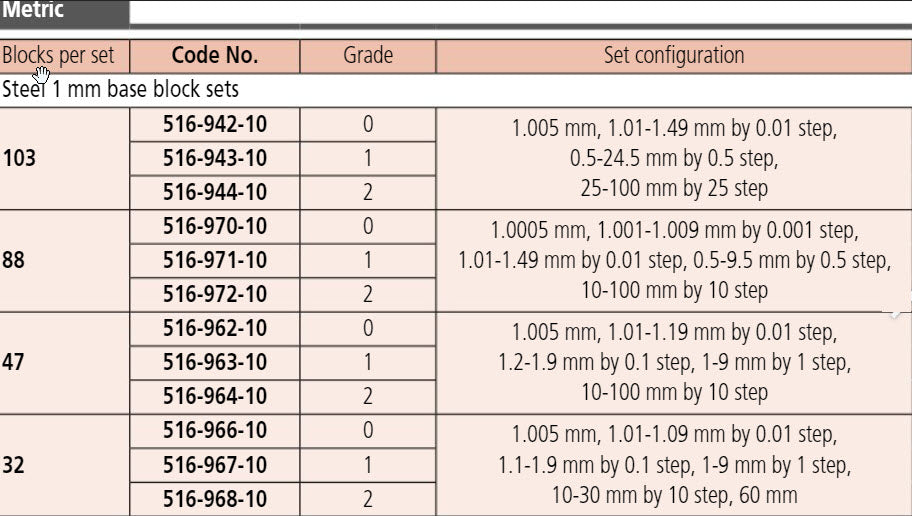

| Set configuration: |
1,005 mm (1 block)
1,01-1,49 mm (0,01 mm step / 49 blocks) 0,5-24,5 mm (0,5 mm step / 49 blocks) 25-100 mm (25 mm step / 4 blocks) |
| Delivered: |
In a wooden case
|
| Mass: |
3800 g
|
No technical information is currently available.
No application information is currently available.
