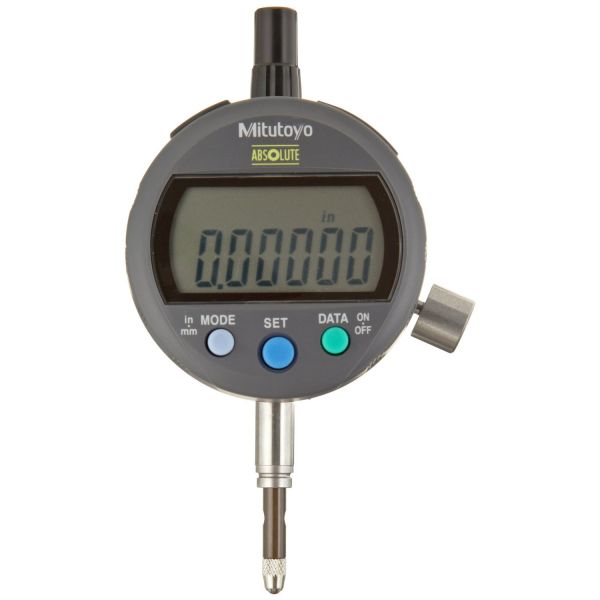

Mitutoyo 543-395B, Low Force IDC Digimatic Indicator, Resolution .00005"/.0001"/.0005"/0.001mm/0.01mm Range .5"/12.7mm, 8mm Stem, Flat Back Force 0.4N-0.7N

A low force Indicator

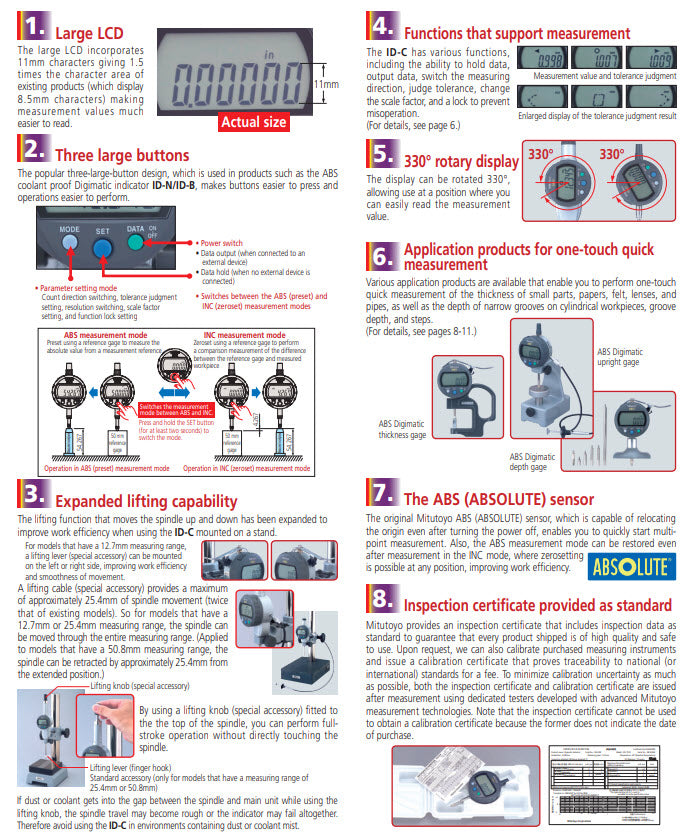

• As compact as standard Series 2 dial indicators.
• Large, easy-to-read LCD.

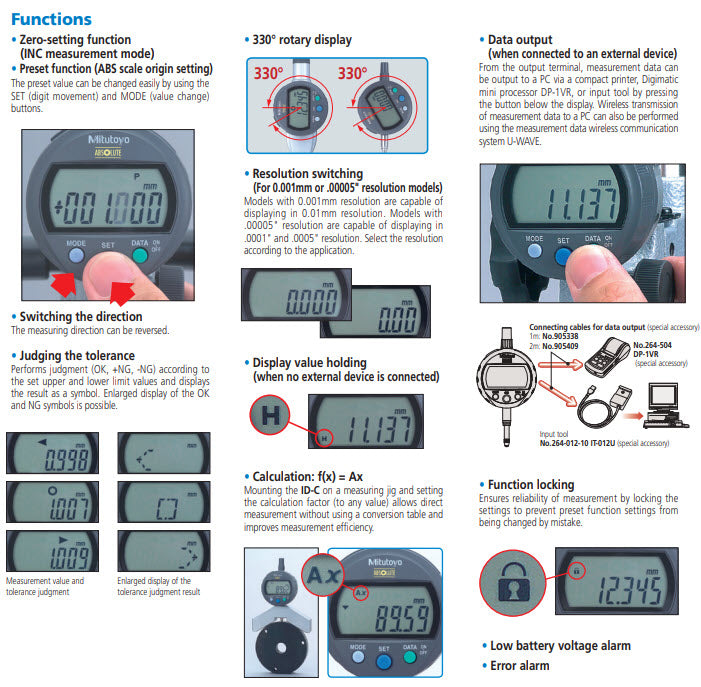

• GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters.
• The positive/negative count resulting from the spindle’s up/down movement can be toggled.
• Internal calculations using the simple formula of [F(x)=Ax)] are available
• Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
• The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading.
• With SPC data output.

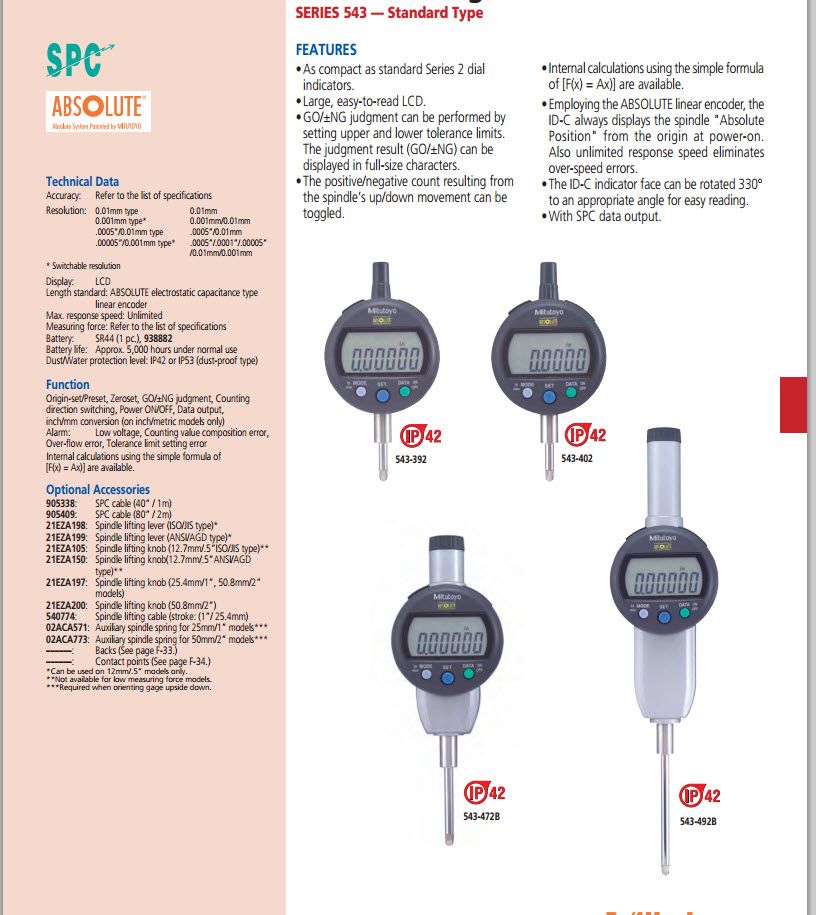

  Technical Data

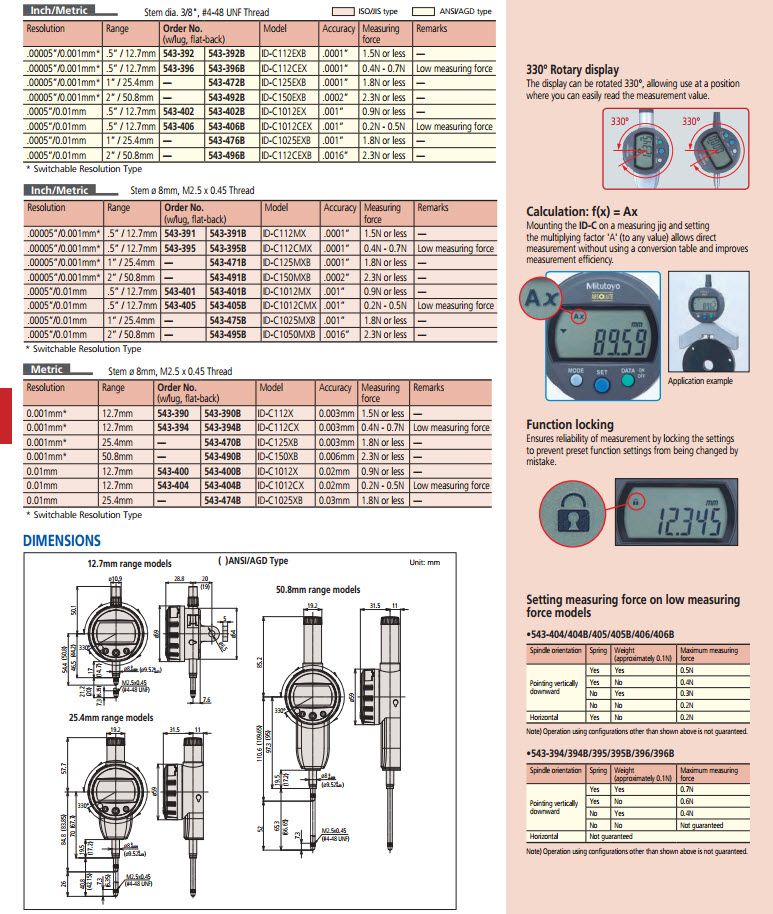

  Accuracy: Refer to the list of specifications.
  Resolution: 0.01mm, 0.001mm, .0005"/0.01mm, .0001”/0.001mm or .00005”/0.001mm
  Display: LCD
  Length standard: ABSOLUTE electrostatic capacitance type linear encoder
  Max. Response speed: Unlimited

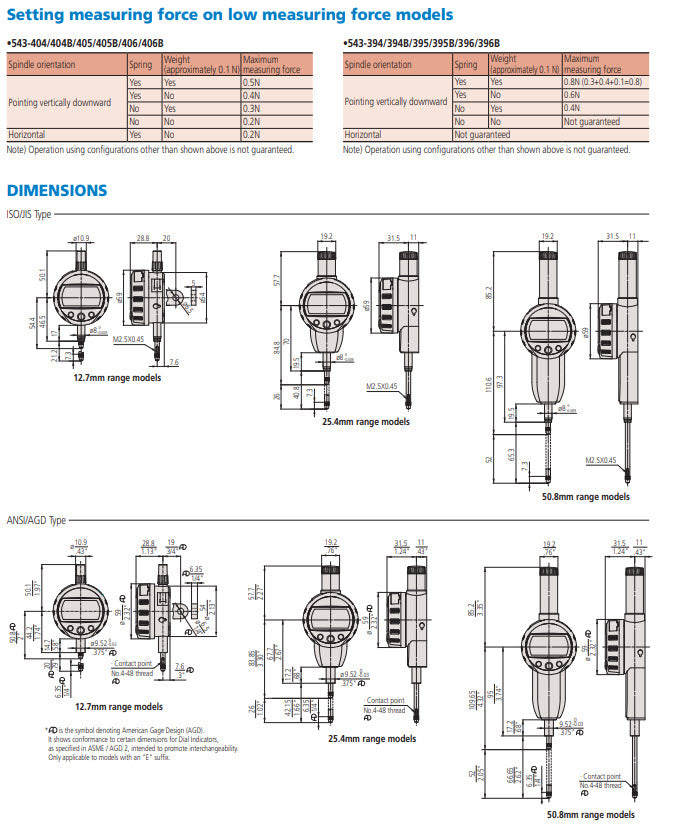

  Measuring force: Refer to the list of specifications
  Battery: SR44 (1 pc.), 938882
  Battery life: Approx. 5,000 hours under normal use
  Dust/Water protection level: IP42 or IP53 (dust-proof type)


  ---


  Function
  Origin-set/Preset, Zeroset, GO/±NG judgment, Counting direction switching, Power ON/OFF, Data output,inch/mm
  conversion (on inch/metric models only)
  Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error
  Internal calculations using the simple formula of [F(x)=Ax)] are available
