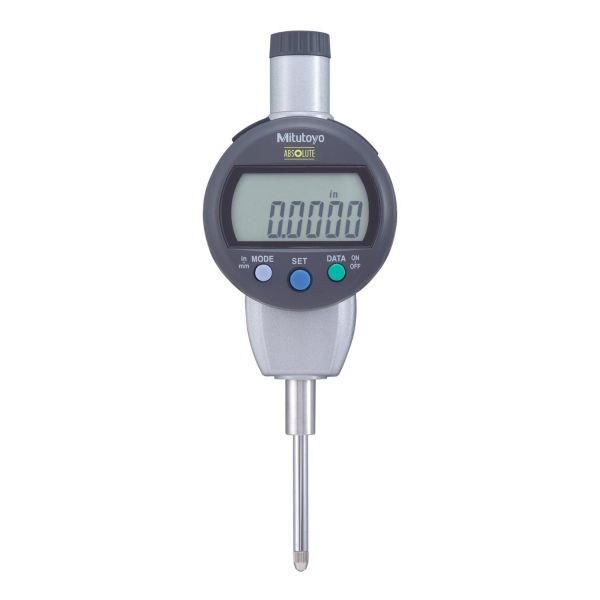

Mitutoyo 543-476B, IDC Digimatic Indicator, Resolution .0005"/0.01mm X 1"/25.4mm, 3/8" Stem, Lug Back, Force 1.8N or Less, Accuracy .001''/.02mm

A digital indicator of similar size to a Series 2 type dial indicator. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes displaying the result of an internal calculation based on spindle displacement, according to a single-term user-defined formula (Ax), and tolerance judgement. SPC data output.

• As compact as standard Series 2 dial indicators.
• Large, easy-to-read LCD.
• GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters.
• The positive/negative count resulting from the spindle’s up/down movement can be toggled.
• Internal calculations using the simple formula of [F(x)=Ax)] are available
• Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
• The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading.
• With SPC data output.

  Technical Data
  Accuracy: Refer to the list of specifications.
  Resolution: 0.01mm/.0005"
  Display: LCD
  Length standard: ABSOLUTE electrostatic capacitance type linear encoder
  Max. Response speed: Unlimited
  Measuring force: Refer to the list of specifications
  Battery: SR44 (1 pc.), 938882
  Battery life: Approx. 5,000 hours under normal use
  Dust/Water protection level: IP42 or IP53 (dust-proof type)


  ---


  Function
  Origin-set/Preset, Zeroset, GO/±NG judgment, Counting direction switching, Power ON/OFF, Data output,inch/mm
  conversion (on inch/metric models only)
  Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error
  Internal calculations using the simple formula of [F(x)=Ax)] are available
