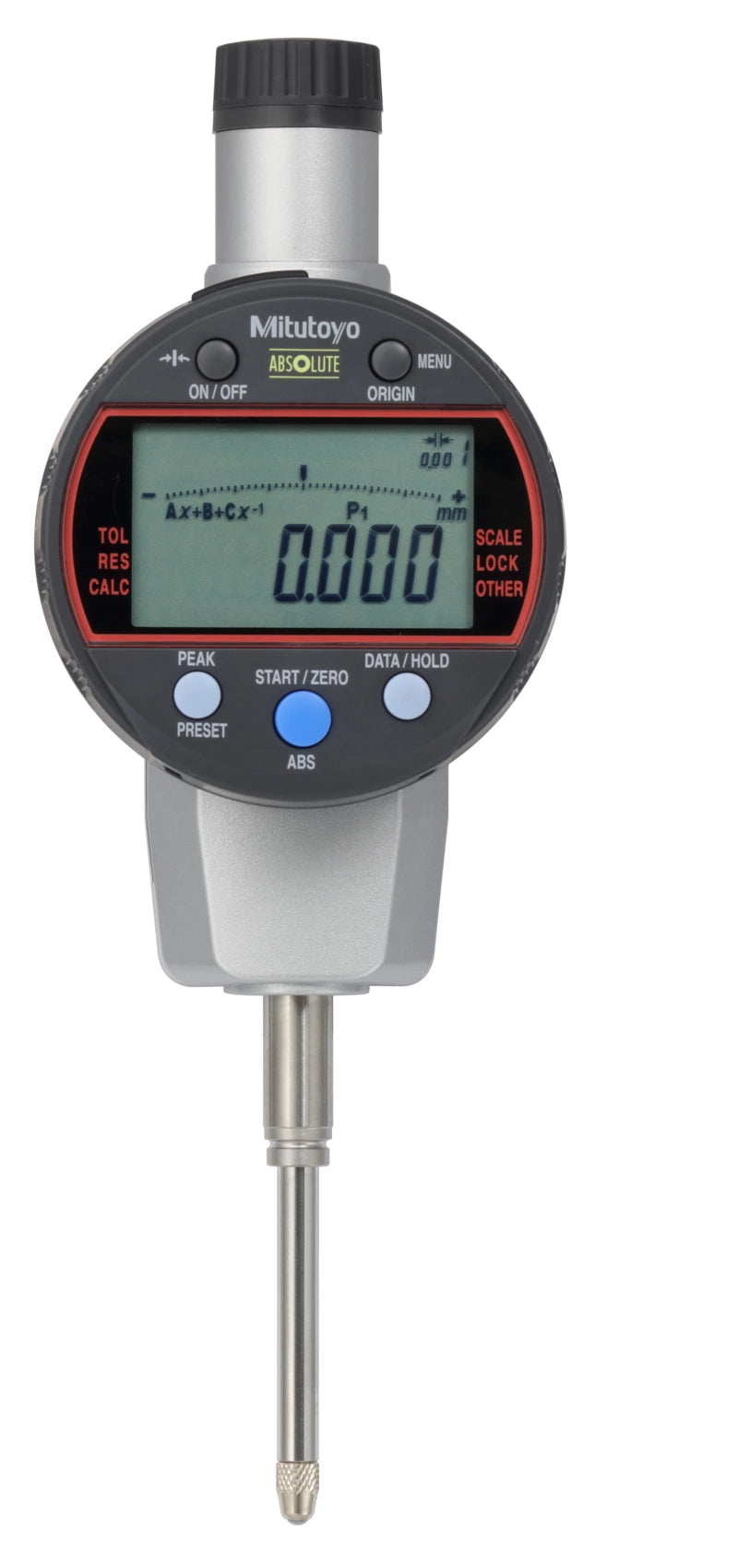

Mitutoyo 543-590B-10 Digital Indicator Calculation ID-C 25.4mm 0.001mm Flat Back Plate 0-25.4mm

Roll over image to zoom in Click on image to zoom

Mitutoyo 543-590B-10 Digital Indicator Calculation ID-C 25.4mm 0.001mm Flat Back Plate 0-25.4mm

Name: Mitutoyo 543-590B-10 Digital Indicator Calculation ID-C 25.4mm 0.001mm Flat Back Plate 0-25.4mm
Brand: Mitutoyo
SKU: 543-590B-10
Price: 414.0 GBP
Availability: InStock

MitutoyoSKU: 543-590B-10

List price: £567.00 Offer price: £414.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£30.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Overview Technical Information Applications Videos & Documents

Range: 0-25.4mm
Accuracy: ± 0.002mm
Hysteresis: 0.002mm
Selectable resolution
Digimatic data output
IP42 rating
Measuring force: 1.8N or less
Max response speed: Unlimited
Stem diameter: 8mm
Contact point: Carbide ball, thread M 2.5 x 0.45 mm
MPN: 543-590B-10
Brand: Mitutoyo

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo 543-590B-10 Digital Indicator Calculation ID-C 25.4mm 0.001mm Flat Back Plate 0-25.4mm Click to open the PDF document
