MitutoyoSKU: 543-691B
List price: £255.00 Offer price: £150.00 Excluding VAT
This is a standard model of indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-S offers you the following
benefits:
  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • You can access all functions by using the large, user-friendly
    buttons on the front of the indicator.
  • Large character height of 9 mm provides good readability.
  • Exceptional battery life.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
Including SR44 battery, certificate of inspection
Range:
0.5"/12.7 mm
Digital step:
0.00005"/0.001 mm
Max. Permissible Error
E MPE (Total Range):
±0.0001"/0.002 mm
H MPE (Hysteresis):
0.001"/0.02 mm
R MPE (Repeatability):
0.00005"/0.001 mm
Measuring force MPL:
?1.5 N
Protection:
IP42
Type:
EN ISO Standard
Mass:
140 g
Display:
LCD, character height 9 mm
Max. response speed:
Unlimited
Alarm:
Low voltage, sensor error, ABS data composition error
Stem ?:
8 mm
Contact point:
Carbide ball, thread: M2.5x0.45
Power supply:
1 battery SR44
Battery life:
Approx. 18000 hours (0.001 mm type),
approx. 20000 hours (0.01 mm type)
Remarks:
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
Digimatic data output:
Yes
ON/OFF:
Yes
ORIGIN (ABS-Zero):
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder

No technical information is currently available.

No application information is currently available.

Product Documents

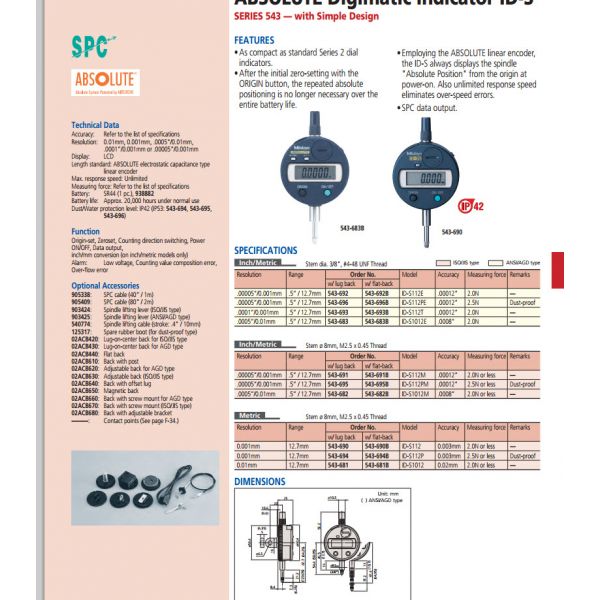

Product Document Mitutoyo 543-691B Absolute LCD Digimatic Indicator ID-S, M2.5X0.45 Thread, 8mm Stem Dia., Lug Back, 0-.5"/0-12.7mm Range, 0.00005"/0.001mm Graduation, +/-0.00012" Accuracy Click to open the PDF document
