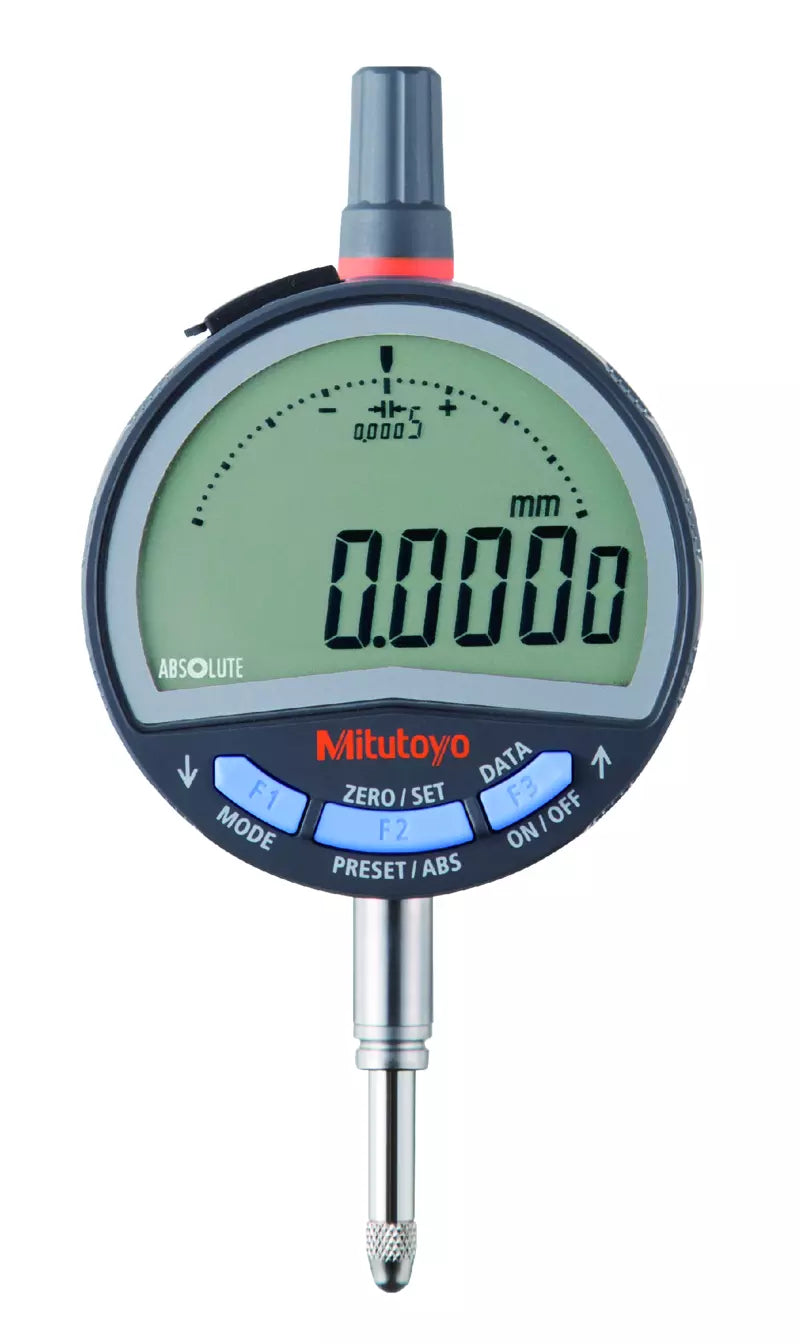

Mitutoyo 543-700 (0.0005mm) Lug Back Digital Indicator ID-C 0-12.7mm

Roll over image to zoom in Click on image to zoom

Mitutoyo 543-700 (0.0005mm) Lug Back Digital Indicator ID-C 0-12.7mm

Name: Mitutoyo 543-700 (0.0005mm) Lug Back Digital Indicator ID-C 0-12.7mm
Brand: Mitutoyo
SKU: 543-700
Price: 262.0 GBP
Availability: InStock

MitutoyoSKU: 543-700

All prices exclude VAT, which will be added at checkout.

Price:

£262.00 £357.00

Quantity:

This is a multifunction standard indicator that is reliable and easy to use.
- Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
- The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- Excellent visibility with a large digital/analog display.
- Model with 0,5 µm digital step is available.
- Measurements such as simple calculation and peak detection are possible.
- Equipped with a calibration schedule warning function.
- GO/±NG judgement is performed by setting the upper and lower tolerances.
- Display 330° rotatable.
- A function lock protects the display against unauthorised use.
Range: 0-12.7mm
Switchable resolution: 0.0005mm/0.001mm/0.01mm
Accuracy: ± 0.003mm
Hysteresis: 0.002mm
Repeatability: 0.002mm
Stem diameter: 8mm
Contact point: Carbide ball, thread: M 2.5 x 0.45 mm
Scale: Capacitance type, ABSOLUTE linear encoder
330° rotatable display
IP Rating: IP42
Origin ABS Zero
Lug back
Data output
Metric
Part no 543-700

Product Information
Part Number	543-700
Measuring Ranges	0-12.7mm
Resolution	0.0005mm/0.001mm/0.01mm
Accuracy	.003mm
Unit of Measurement	Metric
Data Output	Yes
Measuring Force	1.8N or less
Type	Digital Indicator Standard
Repeatability	.002mm
Hysteresis	.002mm
Stem	8mm
Product Description	Digital Indicator with Lug Back
Manufacturer	Mitutoyo
