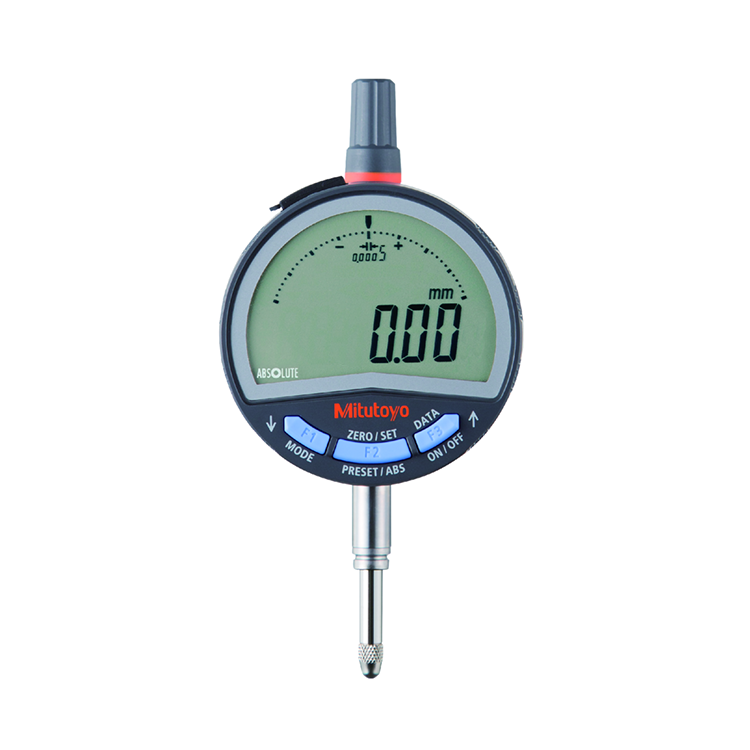

- Bi-directional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
- The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- Excellent visibility with a large digital/analog display.
- Measurements such as simple calculation and peak detection are possible.
- Equipped with a calibration schedule warning function.
- GO/±NG judgement is performed by setting the upper and lower tolerances.
- A function lock protects the display against unauthorised use.
- Range: 0-12.7mm
- Resolution: 0.01mm
- Accuracy: ± 0.02mm
- Hysteresis: 0.02mm
- Repeatability: 0.01mm

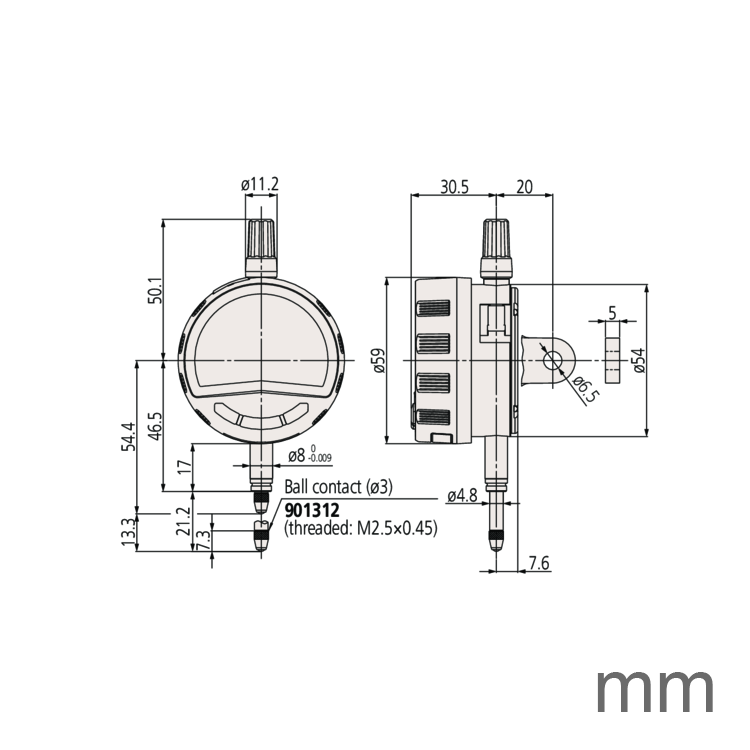

- Stem diameter: 8mm
- Contact point: Carbide ball, thread: M 2.5 x 0.45 mm
- Scale: Capacitance type, ABSOLUTE linear encoder
- 330° rotatable display
- IP Rating: IP42
- Origin ABS Zero
- Low force
- Flat back
- Data output
- Metric
