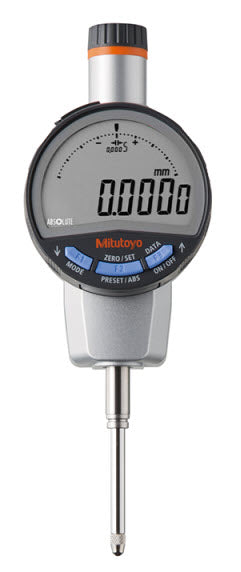

Mitutoyo (0.0005mm) Lug Back Digital Indicator ID-C 0-25mm 543-720

MitutoyoSKU: 543-720

List price: Regular price£508.00 Offer price: Sale price£379.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

  • Bi-directional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • Excellent visibility with a large digital/analog display.
  • Measurements such as simple calculation and peak detection are possible.
  • Equipped with a calibration schedule warning function.
  • GO/±NG judgement is performed by setting the upper and lower tolerances.
  • A function lock protects the display against unauthorised use.
  • Range: 0-25.4mm
  • Switchable resolution: 0.0005mm/0.001mm/0.01mm
  • Accuracy: ± 0.003mm
  • Hysteresis: 0.002mm
  • Repeatability: 0.002mm
  • Stem diameter: 8mm
  • Contact point: Carbide ball, thread: M 2.5 x 0.45 mm
  • Scale: Capacitance type, ABSOLUTE linear encoder
  • 330° rotatable display
  • IP Rating: IP42
  • Origin ABS Zero
  • Lug back
  • Data output
  • Metric
