MitutoyoSKU: 544-534
Price: £6,120.00 Excluding VAT

Mitutoyo Laser Micrometers
High speed scanning
- Suitable for in line measurements
- Visible and invisible laser types available
- Supplied with individual I.D. unit to compensate for optical errors when connected to the chosen display unit
- Can be used with either LSM5000/6000 display units (optional)

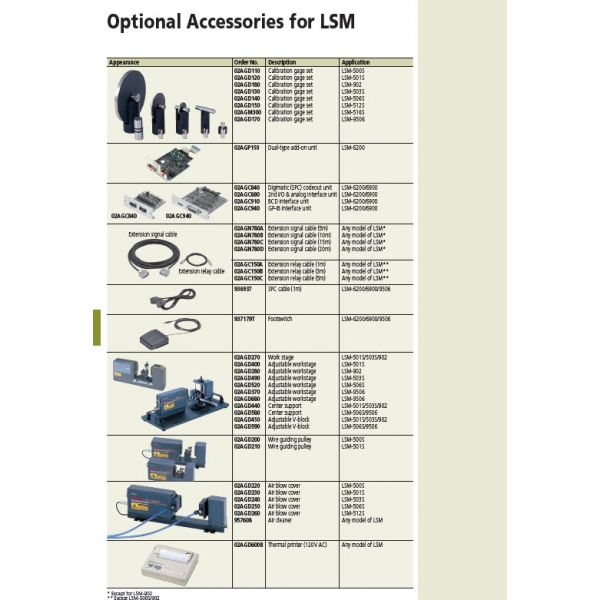

- Calibrated Gauge set 02 AGD150 (optional)
- IP64 protected level
Series 544


FEATURES
[*1]: Measuring range available when set to "No extra-fine wire measurement"or "Edge specification" in the basic setup mode.
[*2]: Environment for accuracy validation: 20ºC 1ºC temperature; 50% 10% humidity.
[*3]: The value of 2 o with a 2mm-diameter gage has been measured for two minutes with a measurement interval of 0.32 seconds, where is the standard deviation.
[*4]: The value of measurements in the center of the measurement region.
[*5]: Error due to the positional shift of the workpiece in the optical axis direction or scanning direction
[*6]: Averaging scans between 1 and 8 times can be made if "No extra-fine wire measurement" is specified in the basic setup mode.
The measuring range, however, is limited to 0.1mm to 2mm in this case

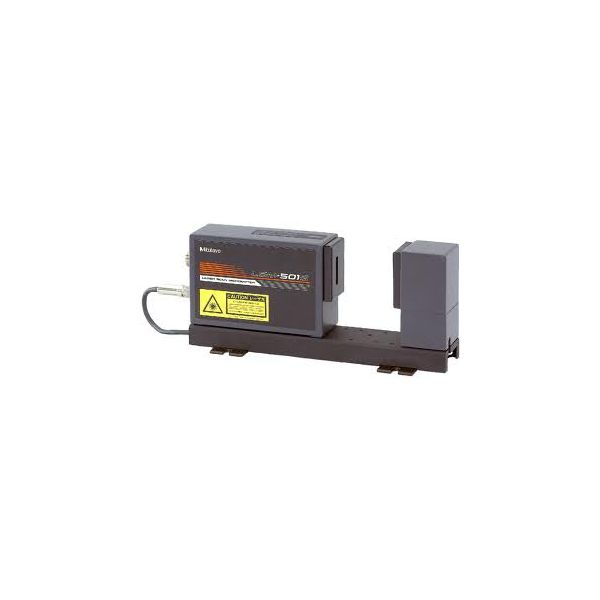

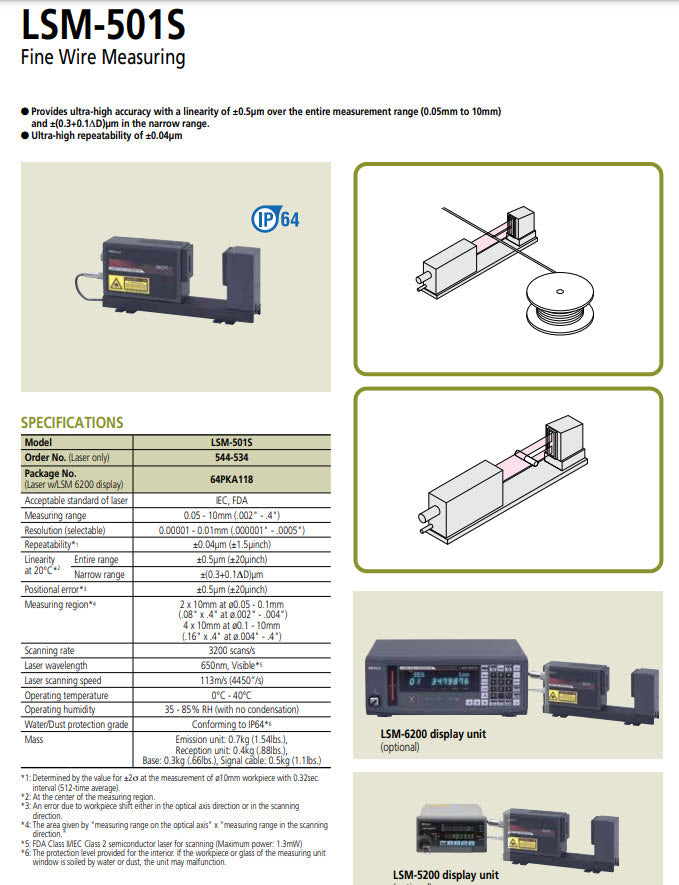

Mitutoyo 544-534 Mitutoyo Laser Micrometer LSM-501S

Number of Scans 3200/sec
Protection level IP64
Laser scanning rate 4449in/s 113m/s
Measuring region .08x.4in 2x10mm

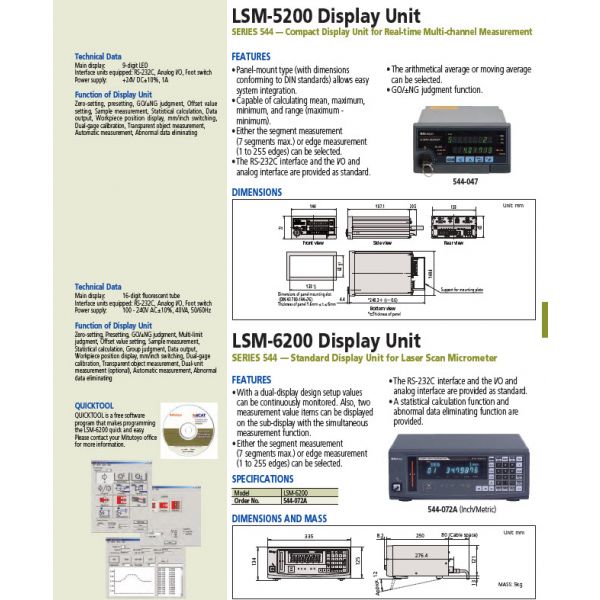

Applicable display unit LSM-6200
Measuring Range .002-0.4in 0.05-10mm
Part Number 544-534

No technical information is currently available.

No application information is currently available.

Product Video

Product Documents

Product Document Mitutoyo 544-534 Mitutoyo Laser Micrometer LSM-501S , Measuring Range : 0.05-10mm/0.002-0.4" Resolution (Selectable) : 0.00001-0.01mm/0.000001-0.0005" Repeatability : Note Display LSM-6200, 544-072E Should be ordered with this unit Click to open the PDF document
