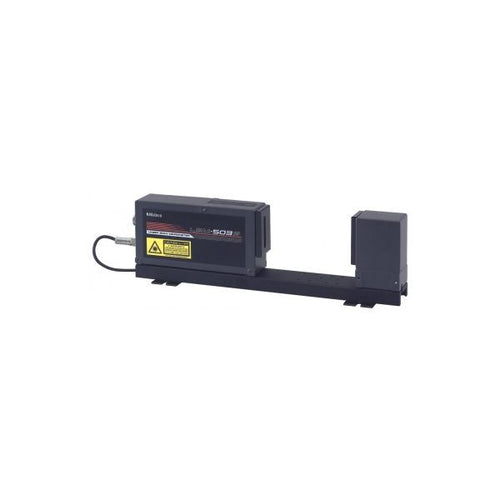

Mitutoyo Laser Micrometers
High speed scanning

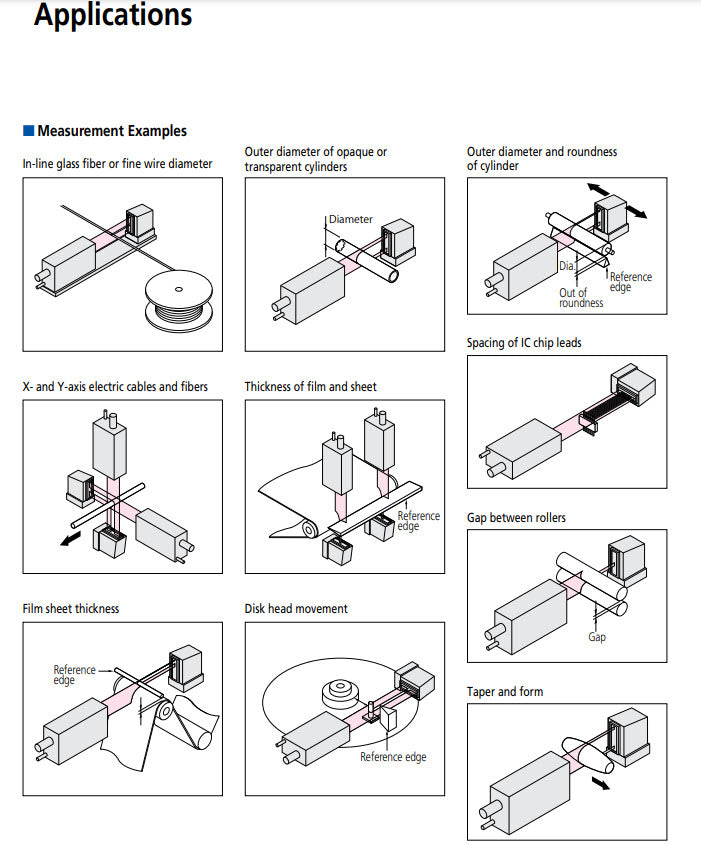

- Suitable for in line measurements
- Visible and invisible laser types available
- Supplied with individual I.D. unit to compensate for optical errors when connected to the chosen display unit

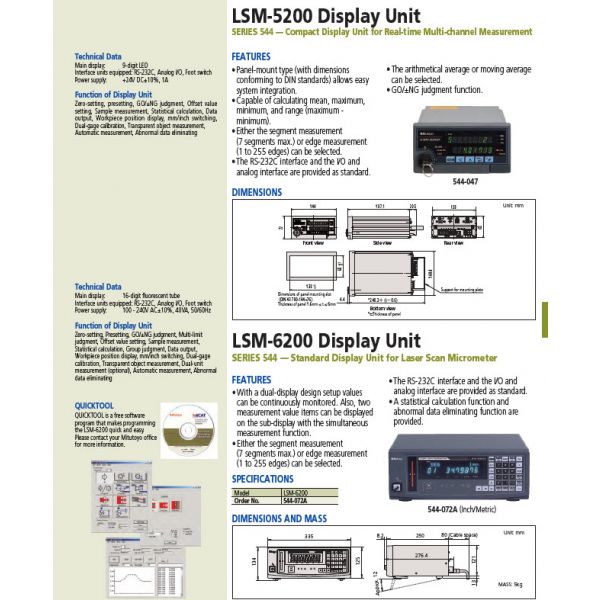

- Can be used with either LSM5000/6000 display units (optional)

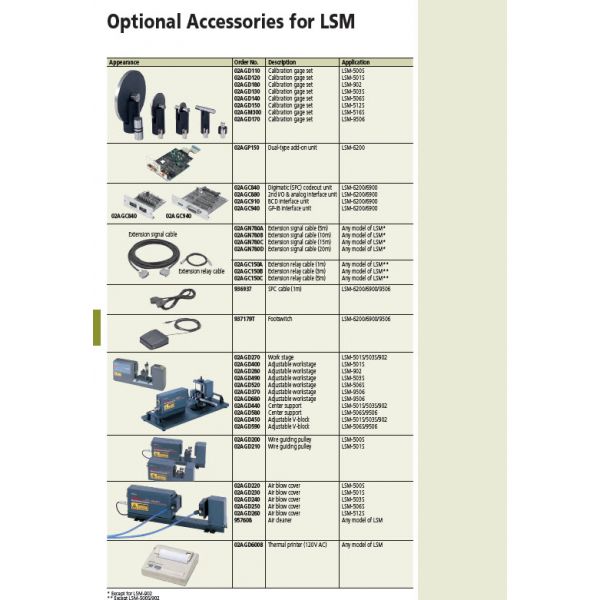

- Calibrated Gauge set 02 AGD150 (optional)
- IP64 protected level
| Number of Scans | 3200/sec |
|---|---|
| Protection level | IP64 |
| Laser scanning rate | 4449in/s 113m/s |
| Measuring region | .08x.4in 2x10mm |
| Applicable display unit | LSM-6200 |
| Measuring Range | .002-0.4in 0.05-10mm |
| Part Number | 544-534 |
No technical information is currently available.
No application information is currently available.
