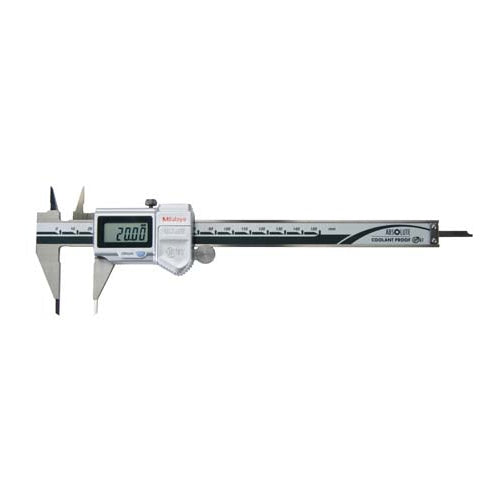

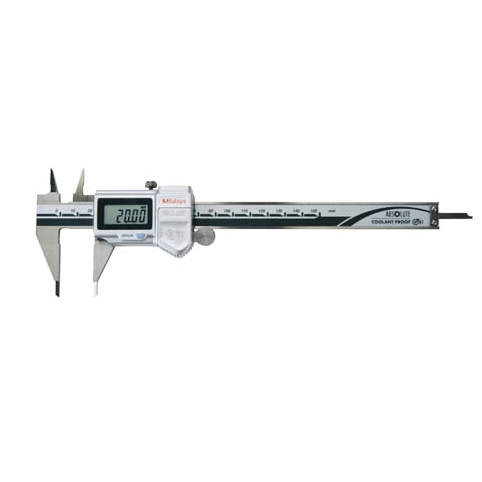

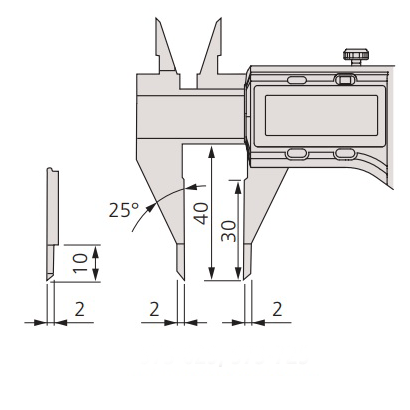

This Mitutoyo ABSOLUTE Digimatic Point Caliper is waterproof and suitable for use in the presence of coolant or cutting oil. This point caliper is equipped with narrow tip jaws to fit into very small grooves and tracks. Includes depth bar. The ABSOLUTE system scale provides error-free, high-speed measurement with SPC data output.
- Range = 0-150mm / 0-6"
- Accuracy = +/-0.001"
- Resolution = 0.01mm / 0.0005"
- Protection = IP67
- Scale Type = Absolute electromagnetic linear encoder
- Display = LCD
- Functions = Origin-set, zero-set, offset, inch/mm, data hold, automatic power on/off, data output, low voltage alarm, counting value composition error alarm
- Battery = SR44 (life = appx 3 years)
-
Weight = 160g
