MitutoyoSKU: 523-108
List price: £679.00 Offer price: £496.00 Excluding VAT

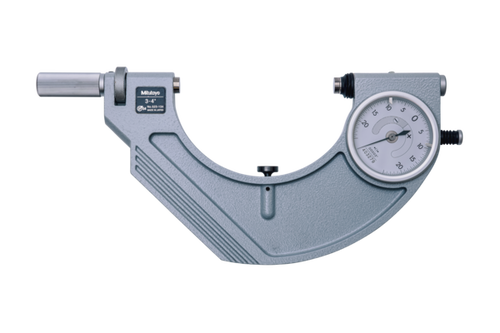

A Mitutoyo rapid-retraction-anvil snap meter equipped with a high resolution dial indicator.
Specification
Digital/Analog:
Analog
Delivered:

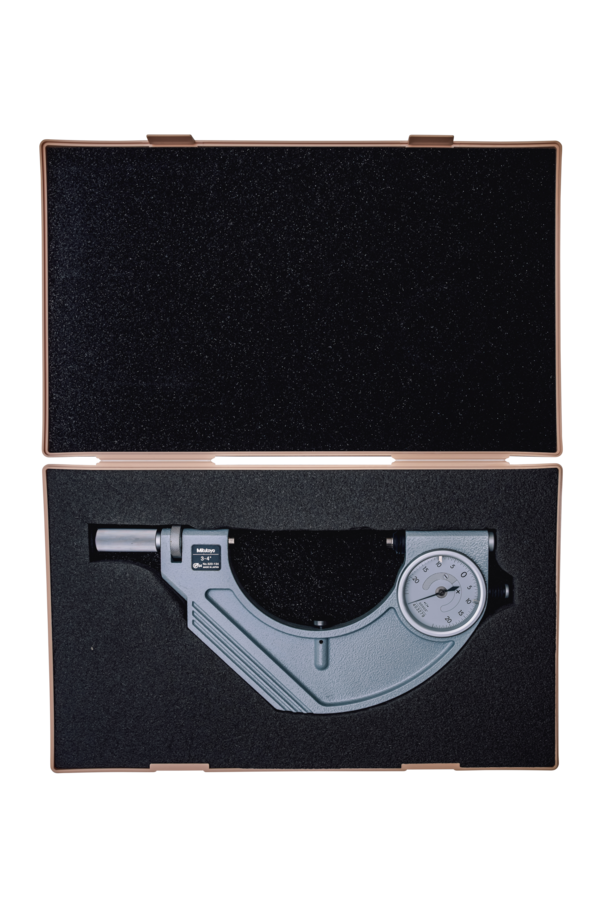

Including box, workpiece rest, setting standard
Inch-Metric :Inch
Range:
1-2"
Graduation:
0,00005"
Indicating range:
±0.002"
Anvil retracting stroke:
2 mm
Accuracy dial comparator:
1 ?m
Repeatability:
0.00002"
Flatness:
0,000012"
Parallelism:
0,00004"
Measuring face:
Carbide-tipped, micro-lap finish ø10.8 mm
Measuring spindle:
ø10,8 mm
Measuring force:
5 - 10 N
Delivered:
Including box, workpiece rest
Mass:
1080 g

No technical information is currently available.

No application information is currently available.
