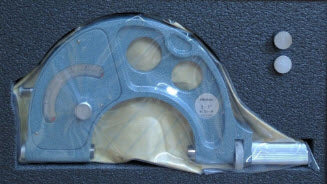

Mitutoyo Dial Snap Meter 50-75mm 523-103
Roll over image to zoom in Click on image to zoom
Mitutoyo Dial Snap Meter 50-75mm 523-103

Mitutoyo Dial Snap Meter 50-75mm 523-103

MitutoyoSKU: 523-123
List price: £764.00 Offer price: £382.00 Excluding VAT

Optional Services

Calibration Micrometer Setting Rod ≤ 100mm
£18.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Mitutoyo; Dial Snap Meter

A Mitutoyo rapid-retraction-anvil snap meter equipped with a high resolution dial indicator.
Specification
Digital/Analog:
Analog
Delivered:
Including box, workpiece rest, setting standard
Inch-Metric:
Metric
Range:
50 - 75 mm
Graduation:
0.001 mm
Indicating range:
±0.06 mm
Anvil retracting stroke:
2 mm
Accuracy dial comparator:
1 ?m
Repeatability:
0.4 µm
Flatness:
0,3 ?m
Parallelism:
1 ?m
Measuring face:
Carbide-tipped, micro-lap finish ø10.8 mm
Measuring spindle:
ø10,8 mm
Measuring force:
5 - 10 N
Delivered:
Including box, workpiece rest
Mass:
950 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Dial Snap Meter 50-75mm 523-103 Click to open the PDF document
