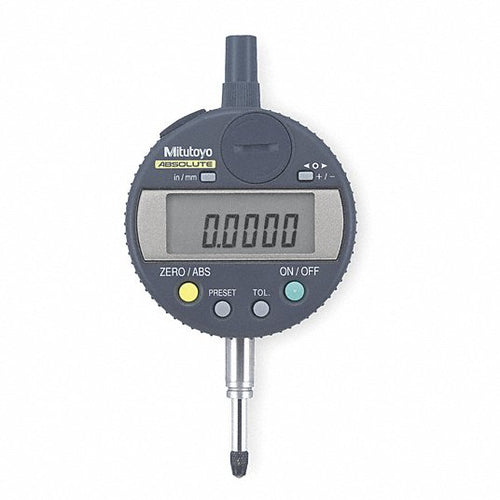

Mitutoyo Digimatic Indicator Accuracy: 0.0008" Range: 0-.5"/0-12.7mm Resolution: 0.0005"/0.01mm Stem: 3/8" Style: AGD Design 543-272
Roll over image to zoom in Click on image to zoom
Mitutoyo Digimatic Indicator Accuracy: 0.0008" Range: 0-.5"/0-12.7mm Resolution: 0.0005"/0.01mm Stem: 3/8" Style: AGD Design 543-272

Mitutoyo Digimatic Indicator Accuracy: 0.0008" Range: 0-.5"/0-12.7mm Resolution: 0.0005"/0.01mm Stem: 3/8" Style: AGD Design 543-272

MitutoyoSKU: 543-272
List price: £269.00 Offer price: £130.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This is a multifunction standard indicator that is reliable and easy to use.
  • Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • Excellent visibility with a large digital/analog display.
  • Model with 0,5 µm digital step is available.
  • Measurements such as simple calculation and peak detection are possible.
  • Equipped with a calibration schedule warning function.
  • GO/±NG judgement is performed by setting the upper and lower tolerances.
  • Display 330° rotatable.
  • A function lock protects the display against unauthorised use.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
Including CR2032 battery, battery lid opener, certificate of inspection
Range:
0.5"/12.7 mm
Digital step:
0.0005"/0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.001"/0.02 mm
H MPE (Hysteresis):
0.001"/0.02 mm
R MPE (Repeatability):
0.0005"/0.01 mm
Measuring force MPL:
?0.9 N
Protection:
IP42
Type:
EN ISO Standard
Mass:
160 g
Display:
LCD, character height 11 mm, 330° rotatable
Max. response speed:
Unlimited
Measurement frequency (MAX/MIN/RANGE):
50 times/s
Alarm:
Low voltage, setting errors, sensor error, display overflow a.s.o.
Stem ?:
3/8"
Contact point:
Carbide ball, thread: M2.5x0.45
Power supply:
1 battery CR2032
Battery life:
Approx. 2700 hours (continuous use)
DATA/HOLD:
Yes
Digimatic data output:
Yes
Digimatic S1 Bidirectional interface:
Yes
ON/OFF:
Yes
Analog bar resolution switchable:
Yes
Function lock:
Yes
GO/±NG judgement:
Yes
ABS / INC (INC ZERO):
Yes
Analog bar resolution selection:
Yes
Auto Power OFF setting:
Yes
Calculation function (with formula):
Yes
Customizing keys:
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Calibration warning function:
Yes
Digital step switchable:
No

No technical information is currently available.

No application information is currently available.
