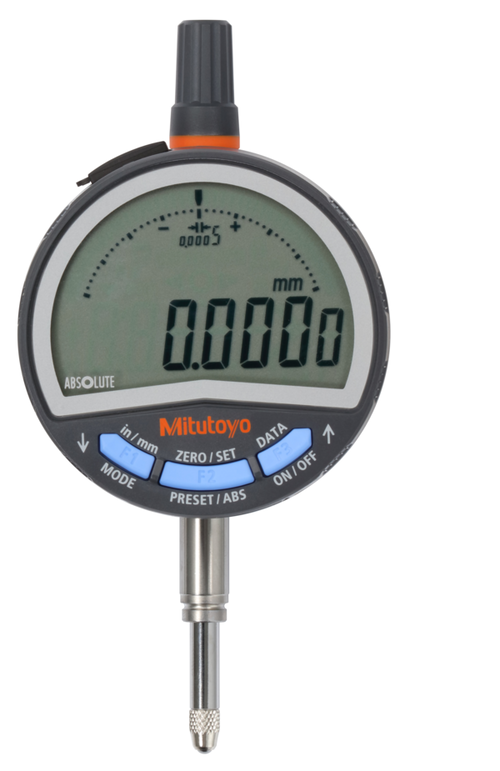

Mitutoyo Digital Indicator ID-C, ASME/ANSI Type Inch/Metric, 0,5", 0,0005", Lug Back 543-712

• Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
• The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
• Excellent visibility with a large digital/analog display.
• Model with 0,5 µm digital step is available.
• Measurements such as simple calculation and peak detection are possible.
• Equipped with a calibration schedule warning function.
• GO/±NG judgement is performed by setting the upper and lower tolerances.
• Display 330° rotatable.
• A function lock protects the display against unauthorised use.

Model - ID-C1012ENX
Digital/Analog - Digital
Inch-Metric - Inch/Metric
Delivered - Including CR2032 battery, battery lid opener, certificate of inspection
Range - 0.5"/12.7 mm
Digital step - 0.0005"/0.01 mm
Max. Permissible Error E MPE (Total Range) - ±0.001"/0.02 mm
H MPE (Hysteresis) - 0.001"/0.02 mm
R MPE (Repeatability) - 0.0005"/0.01 mm
Measuring force MPL - ?0.9 N
Protection - IP42
Type - ASME/ANSI/AGD Standard
Mass - 190 g
Display - LCD, character height 11 mm, 330° rotatable
Max. response speed - Unlimited
Measurement frequency (MAX/MIN/RANGE) - 50 times/s
Alarm - Low voltage, setting errors, sensor error, display overflow a.s.o.
Stem ? - 9.52 mm
Contact point - Carbide ball, thread: No.4-48UNF
Power supply - 1 battery CR2032
Battery life - Approx. 2700 hours (continuous use)
Digital Scale - Electrostatic capacitance type absolute linear encoder
ON/OFF - Yes
ABS / INC (INC ZERO) - Yes
Function lock - Yes
GO/±NG judgement - Yes
DATA/HOLD - Yes
Auto Power OFF setting - Yes
Counting direction switchable - Yes
Customizing keys - Yes
Calibration warning function - Yes
Low voltage alarm - Yes
Digital step switchable - No
Digimatic data output - Yes
Digimatic S1 Bidirectional interface - Yes
Analog bar resolution switchable - Yes
Inch/Metric switchable - Yes
