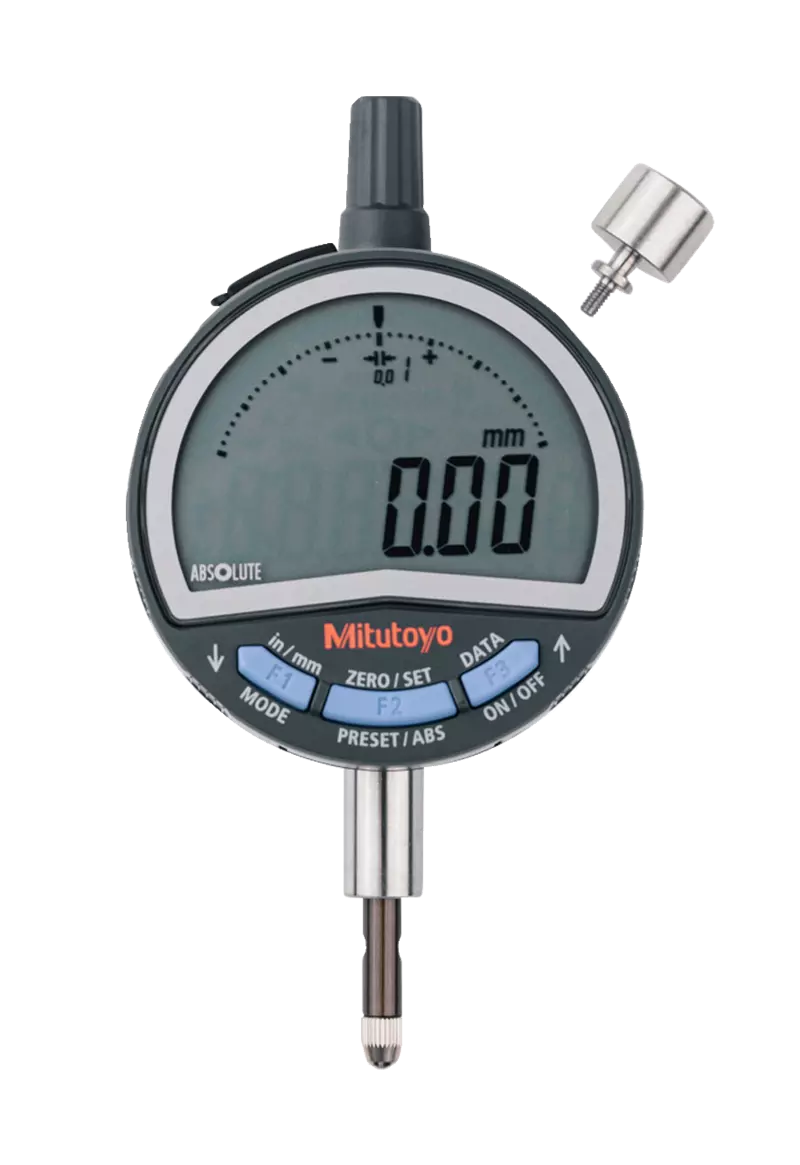

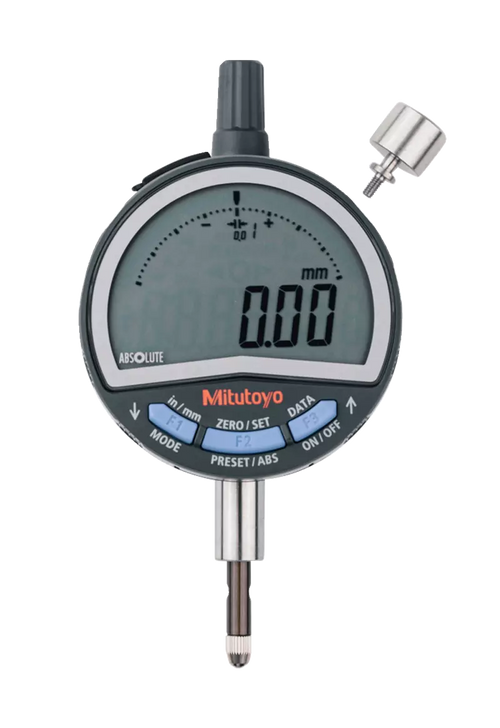

Mitutoyo Digital Indicator ID-C, ASME/ANSI Type Low Force Type, Inch/Metric, 0,5", 0,0005", Flat Back Plate 543-717B

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Indicator ID-C, ASME/ANSI Type Low Force Type, Inch/Metric, 0,5", 0,0005", Flat Back Plate 543-717B

Name: Mitutoyo Digital Indicator ID-C, ASME/ANSI Type Low Force Type, Inch/Metric, 0,5", 0,0005", Flat Back Plate 543-717B
Brand: Mitutoyo
SKU: 543-717B
Price: 245.0 GBP
Availability: InStock

MitutoyoSKU: 543-717B

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£245.00 £335.00

Quantity:

All prices exclude VAT, which will be added at checkout.

This is a multifunction standard indicator that is reliable and easy to use.

Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display.
Model with 0,5 µm digital step is available.
Measurements such as simple calculation and peak detection are possible.
Equipped with a calibration schedule warning function.
GO/±NG judgement is performed by setting the upper and lower tolerances.
Display 330° rotatable.
A function lock protects the display against unauthorised use.

Product Information
Part Number	543-717B
Measuring Ranges	12.7mm/0.5"
Resolution	.01mm/.0005"
Accuracy	.003mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP42
Measuring Force	Less than 0.4 N
Type	Low Force Digital Indicator ID-CX
Repeatability	.002mm/.0001"
Dial Face Size Ø	59mm
Hysteresis	.002mm/.0001"
Stem	9.52mm/3/8"
Back	Flat back
Product Description	Digital Indicator ID-CX Flat Back 3/8" stem
Manufacturer	Mitutoyo
