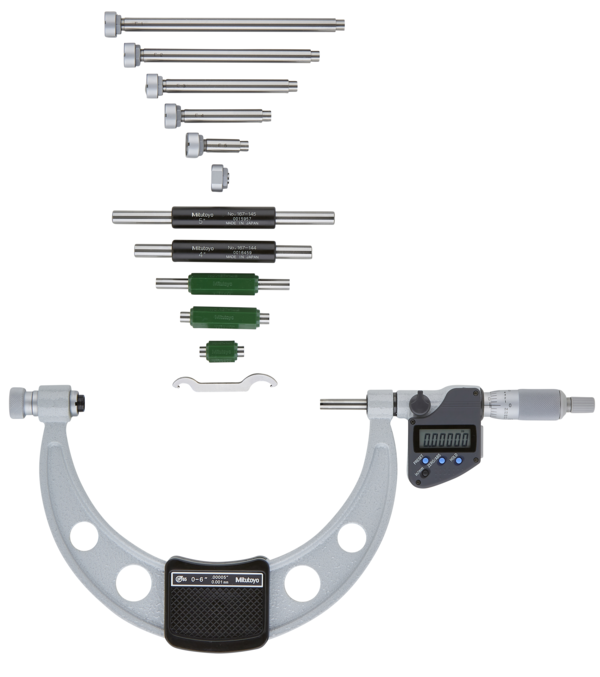

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 0-150mm(0-6"), IP65,

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 0-150mm(0-6"), IP65,

Name: Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 0-150mm(0-6"), IP65,
Brand: Mitutoyo
SKU: 340-351-30
Price: 810.0 GBP
Availability: InStock

MitutoyoSKU: 340-351-30

List price: £1,065.00 Offer price: £810.00 Excluding VAT

Quantity:

Optional Services

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Recommended Alternative

Select an alternative below to view its full details.

Insize Electronic Outside Micrometer with Interchangeable Anvils, 6-12"/150-300mm 3506-300 ( Inspec Equivalent 106-62-400) ( Mitutoyo Equivalent 340-352-30)Brand: InsizeSKU: 3506-300 Price: £350.00 View this alternative →

Overview Technical Information Applications Videos & Documents

This Digimatic Micrometer offers you an extra wide measuring range, and has the following benefits:

Easy, interchangeable anvils allow a wide range of measurements.
Ratchet stop for constant force.

Specification

Digital/Analog:	Digital

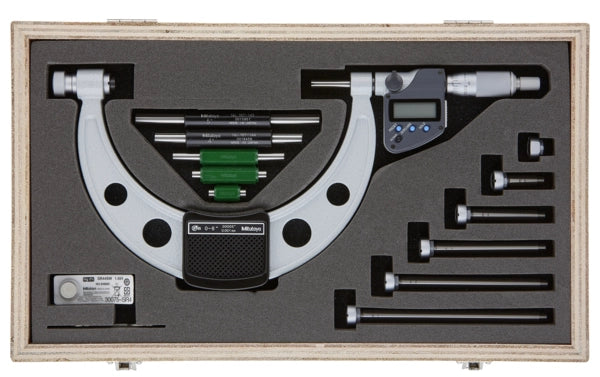

Delivered:	Including box, spanner, setting standard, 6 anvils, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	0-6"/0-50mm
Digital step:	0,0001"/0,001 mm
Limit of error:	±0,0004"
Spindle feed error:	0.00015 inch
Flatness:	0,000024"
Parallelism:	0,0002"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle:	With spindle lock, ø6,35 mm (?300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	Battery SR-44
Battery life:	Approx. 2.4 years, Approx. 1.8 years (> 300 mm)

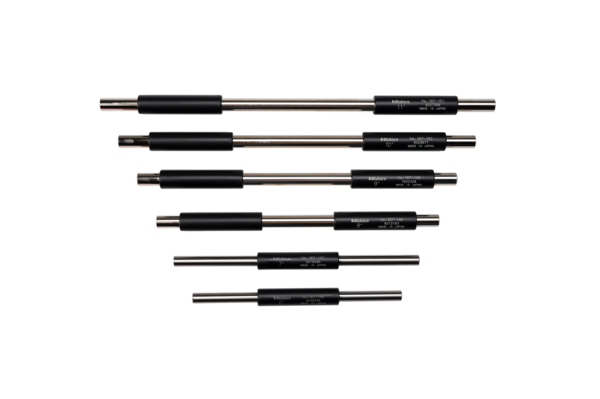

Setting standard:	6 (6, 7, 8, 9, 10, 11")

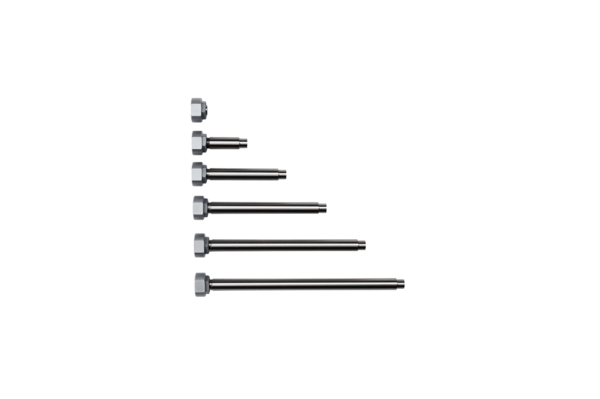

Interchangeable anvils:	6
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	1.88 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 0-150mm(0-6"), IP65, Click to open the PDF document
