Mitutoyo i-Checker Series 170 Inspection Instrument for Dial Indicator, with ø8mm bushing - 170-321D

Roll over image to zoom in Click on image to zoom

Mitutoyo i-Checker Series 170 Inspection Instrument for Dial Indicator, with ø8mm bushing - 170-321D

Name: Mitutoyo i-Checker Series 170 Inspection Instrument for Dial Indicator, with ø8mm bushing - 170-321D
Brand: Mitutoyo
SKU: 170-321D
Price: 11050.0 GBP
Availability: InStock

MitutoyoSKU: 170-321D

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£11,050.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Description

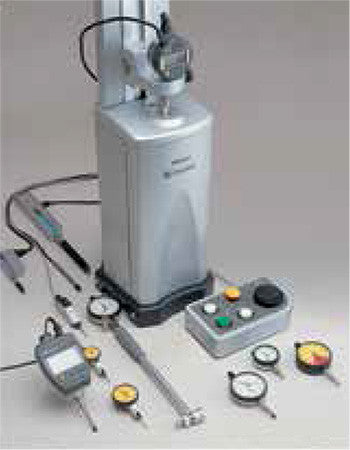

i-Checker is specially designed to calibrate dial indicators, dial test indicators, bore gauges, electronic digital indicator gauges and other electronic gauges.
Inspection can be performed 2.5 times faster compared to the previous model.
This instrument achieves the high accuracy and therefore guarantees ultra-reliable inspection results.
Digital indicators equipped with a data output function are checked very
efficiently due to spindle positioning at the inspection points and recording of measurement results being under fully automatic control.
Analog type indicators are inspected in semi-automatic mode with the pointer of the indicator being manually adjusted at each measuring point with automatic transfer of inspection results and movement to the next measuring point.

Product Information
Part Number	170-321D
Resolution	.00001mm
Accuracy	±(0,1+4L/1000) µm L = measured length (mm)
Manufacturer	Mitutoyo

Range:	0 - 100 mm
Inch-Metric:	Metric
Digital step:	0,01 µm
Power supply:	100VAC to 240VAC ±10%, 50/60Hz
Mass:	20 kg
Accuracy:	±(0,1+4L/1000) µm L = measured length (mm)
Delivered:	With ø8 mm stem bush, software i-Pak, certificate of inspection
