A gauge block set with all blocks made of special tool steel, heat treated and aged to give good wear resistance and small secular change. Excellent inter-set wringing properties and will wring to optical flats or gauge blocks made of any other material.

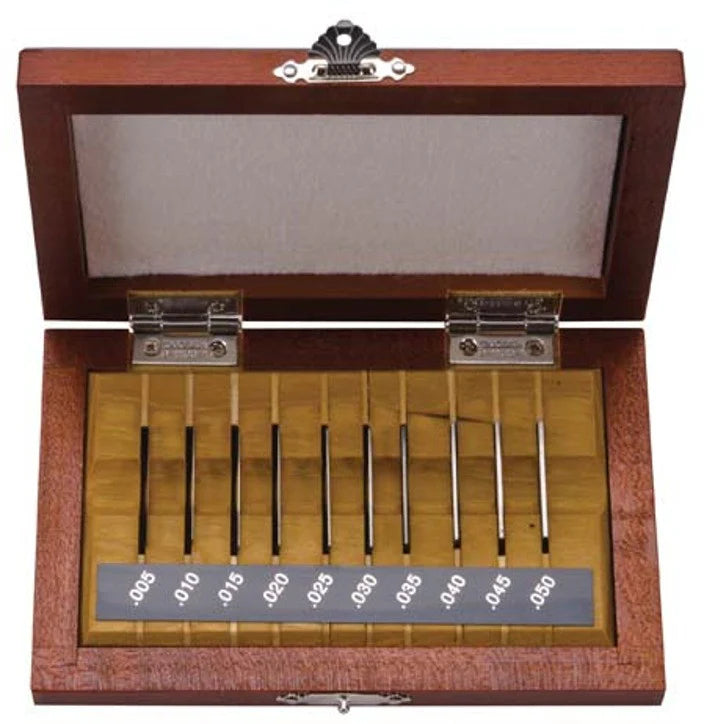

Mitutoyo Inch Rectangular Gauge Block Set Series 516-927, Thin Block Set - 10 pieces grade AS-1
| Select Gauge Block Sets | Thin Gauge block sets in steel |
|---|---|
| Grade | AS-1 |
| Material | Steel |
| Number of Pieces | 10 |
| Measurement units | Inch |
| Blocks per set | 10 |
| Set Configuration | 10 Blocks=.005-.050 Step=.005" |
| Gauge block type | Rectangular |
| Fracture toughness K1c | 120 |
| Certification | None |
| International Standards | ASME B89.1.9-2002 USA |
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
